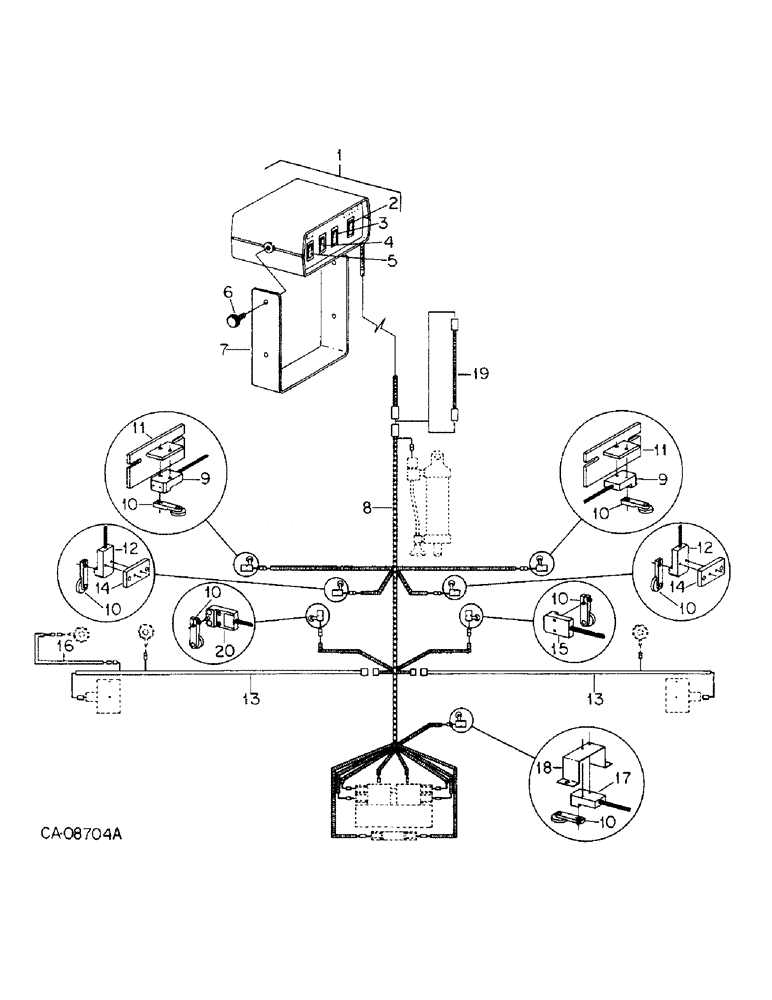

Запчасти Case IH 800 (05-60) - WHEELS, PLANTER CONTROL ELECTRICAL CIRCUITRY, FOR WHEELS AND HORIZONTAL FOLD UNITS W, X AND Y (06) - POWER TRAIN

1

1279379C91

CONTROL

ASSY, planter enclosure, renewed, serial no. 19900 and below, service parts are

1шт.

9426333

FUSE,15 Amp, Type 3AG

3AG 15 Amperes

1шт.

3221235R2

RELAY

3шт.

245012C1

SWITCH

rocker, folder marker

1шт.

245046C1

SWITCH

rocker, function

1шт.

245048C1

IGNITION SWITCH

SWITCH, rocker, advance marker

1шт.

245049C1

SWITCH

rocker, tool bar

1шт.

1261437C1

LAMP

type C-2F trade #37

8шт.

1279457C1

SOCKET

wedge base lamp

8шт.

1

91361C91

REMAN-ELECT MONITOR

CONTROL ASSY, planter enclosure, renewed, serial no. 19901 and above, service parts are

1шт.

9426333

FUSE,15 Amp, Type 3AG

3AG 15 Amperes

1шт.

3221235R2

RELAY

3шт.

245012C1

SWITCH

rocker, folder marker

1шт.

245046C1

SWITCH

rocker, function

1шт.

245048C1

IGNITION SWITCH

SWITCH, rocker, advance marker

1шт.

245049C1

SWITCH

rocker, tool bar

1шт.

1261437C1

LAMP

type C-2F trade #37

8шт.

1279457C1

SOCKET

wedge base lamp

8шт.

2

245048C1

IGNITION SWITCH

SWITCH, rocker, advance marker

1шт.

1261437C1

LAMP

type C-2F trade #37

2шт.

3

245012C1

SWITCH

rocker, fold marker

1шт.

1261437C1

LAMP

type C-2F trade #37

2шт.

4

245049C1

SWITCH

rocker, tool bar

1шт.

1261437C1

LAMP

type C-2F trade #37

2шт.

5

245046C1

SWITCH

rocker, function

1шт.

1261437C1

LAMP

type C-2F trade #37

2шт.

6

245824C1

KNOB

knurled

2шт.

7

1267828C1

BRACKET

planter control and monitor

1шт.

8

245840C3

HARNESS

ASSY, main frame, serial no. 19900 and below

1шт.

8

107490C1

HARNESS

ASSY, main frame, serial no. 19901 and above

1шт.

9

245210C1

SWITCH

ASSY, latch

2шт.

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

SCREW, #10 x 3/4 PHC h/shd cap

4шт.

10

1265627C2

LEVER

ASSY, switch

7шт.

11

1277650C3

PLATE

ASSY, switch

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

12

245210C1

SWITCH

ASSY, wing lock

2шт.

28046R1

HEX SOC SCREW,#10 - 24 x 5/8"

SCREW, 10 x 5/8 h/shd cap

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

13

245841C3

HARNESS

ASSY, wing frame

2шт.

14

1277988C1

PLATE

switch adjustment

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

245210C1

SWITCH

ASSY, RH lift

1шт.

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

SCREW, #10 x 3/4 PHC h/shd cap

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

245842C2

HARNESS

ASSY, tail light, unit W

1шт.

16

245843C2

HARNESS

ASSY, tail light, units X and Y

1шт.

17

245210C1

SWITCH

ASSY, RH hitch

1шт.

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

SCREW, #10 x 3/4 PHC h/shd cap

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

18

1268192C1

BRACKET

switch mtg, hitch control

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

19

245730C1

ASSEMBLY

HARNESS ASSY, extension, required for large 4-wheel drive articulated tractors, IH or competitive, not IH 2+2

1шт.

20

245210C1

SWITCH

ASSY, LH lift, serial no. 19900 and below

1шт.

20

91823C1

SWITCH

ASSY, LH lift, serial no. 19901 and above

1шт.

28411R1

HEX SOC SCREW,#10 - 24 x 3/4"

SCREW, #10 x 3/4 PHC h/shd cap

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

245826C1

TESTER

continuity

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, 7 in. tie

12шт.
