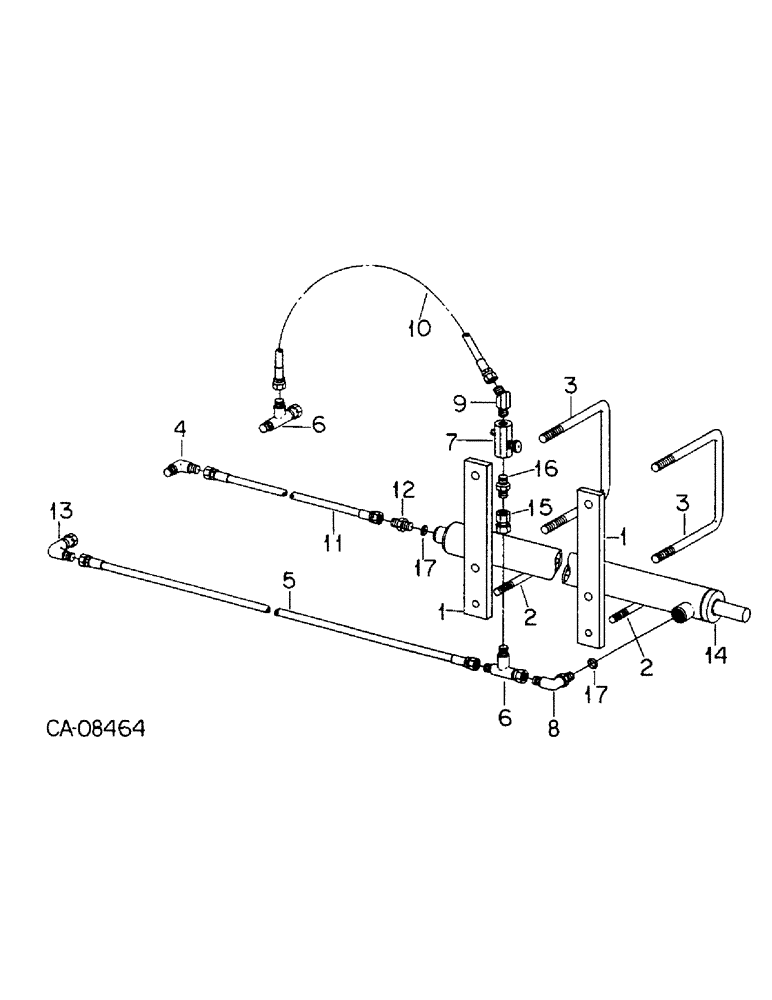

Запчасти Case IH 800 (05-59) - WHEELS, HYDRAULIC PRESSURE BOOSTER ATTACHMENT, FOR INCREASED PRESSURE ON WING CYL., 1ST STAGE UNIT Q (06) - POWER TRAIN

1

1268395C1

BAR

support

2шт.

2

1268394C1

BOLT,1/2" - 13 x 72mm

U-BOLT

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

3

1250813C1

U-BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

4

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd fld tube 90D elbow

1шт.

5

149568C1

HOSE

1/2 x 38 in. hyd

1шт.

6

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel

2шт.

7

122825C1

VALVE

ASSY, control

1шт.

8

671942R1

ELBOW

C-Z hyd fld adj 5/8 to 1/2 90D

1шт.

9

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

5/8 C-Z hyd flared tube 45D

1шт.

10

155225C91

HOSE ASSY.

HOSE, 1/2 x 29 in. hyd, replaces 1264420C1

1шт.

11

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

1/2 x 18 in. hyd

1шт.

12

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht

1шт.

13

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

5/8 C-Z hyd fld 90D swivel

1шт.

14

1272190C91

CYLINDER

ASSY, 2 x 12 in. hydraulic intensifier, only serviceable item is kit, 1272191C91

1шт.

15

1277554C1

CONNECTOR, ELEC

CONNECTOR, hydraulic

1шт.

16

443983

PIPE

NIPPLE, 1/2-14 znp auto pipe

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.
