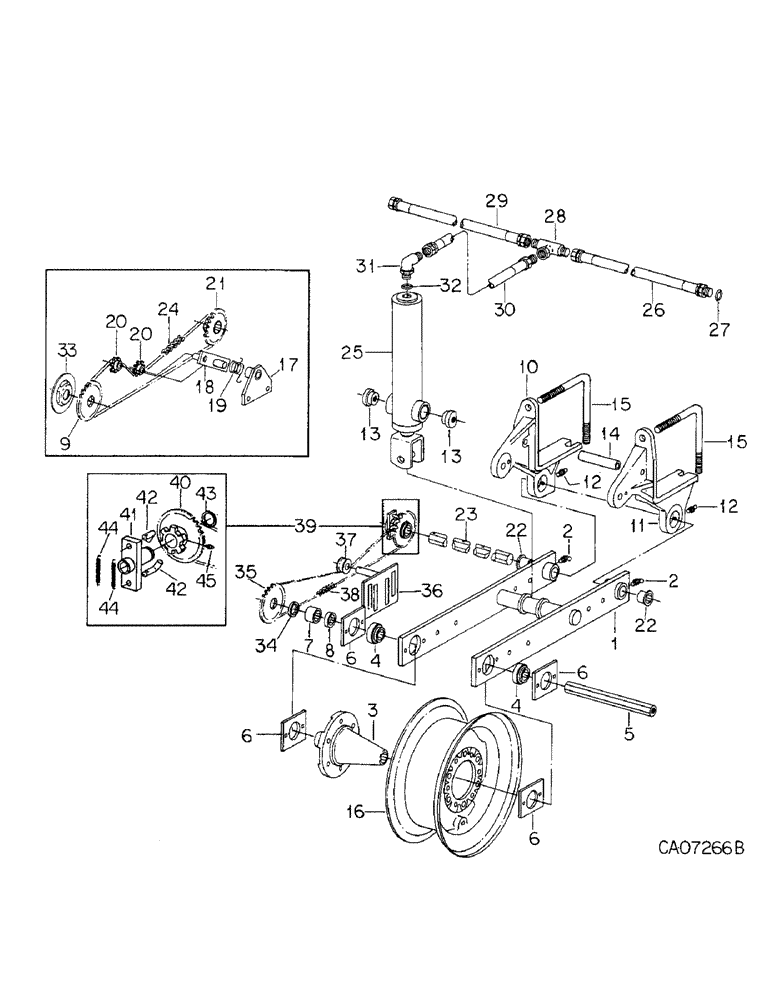

Запчасти Case IH 800 (05-54) - WHEELS, FOUR WHEEL DRIVE ATTACHMENT, UNITS B AND G (06) - POWER TRAIN

1

1279785C1

RAIL ASSY.

RAIL ASSY, wheel, replaces 134317C2 by also ordering two washers, 1279743C1

2шт.

1279743C1

WASHER

WASHER, wheel rail, 2.09 x 2.36 x .062

4шт.

2

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45 deg taper drive lub

4шт.

3

141006C2

HUB

wheel

2шт.

4

1277982C91

KIT

PACKAGE, bearing service, consists of bearing, 203389C91 and two spacers 1277981C1 (NSS), cyclo planters w/serial no. 13749 and below, plate planters w/serial no. 3439 and below

4шт.

4

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING ASSY, ball, cyclo planters w/serial no. 13750 and above, plate planters w/serial no. 3440 and above

4шт.

5

134361C5

BAR

wheel axle

2шт.

Ref #5 - (1" Hex Shaft, 303mm long) 04/18/96

1шт.

6

1250724C1

BAR

BRACKET, bearing

8шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

7

141018C4

SPACER

sprocket, cyclo planters w/serial no. 13749 and below, plate planters w/serial no. 3439 and below

2шт.

7

1277980C1

SPACER

sprocket, cyclo planters w/serial no. 13750 and above, plate planters w/serial no. 3440 and above

2шт.

7

1277949C1

SPACER

axle, cyclo planters w/serial no. 13750 and above, plate planters w/serial no. 3440 and above

2шт.

8

149356C2

SPACER

WASHER, spacer, when wheel sprocket is not used

1шт.

464623R1

WASHER

.656 x 1.500 x .105

4,шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

4шт.

9

134335C1

SPROCKET ASSY.

SPROCKET, wheel 14T, note A

1шт.

10

149548C2

BRACKET

wheel cyl LH

2шт.

11

149549C2

BRACKET

wheel cyl RH

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

4шт.

13

531237R1

CAP

TRUNNION, cap

4шт.

271746

INSERT,Hex, 5/8" - 18 x 1 3/4", Gr 5

5/8-NF x 1-3/4 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

14

140992C1

SPACER

wheel bracket tie

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/2 type 5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

2шт.

15

141025C2

BOLT

ROD, L-bolt 3/4 in.

4шт.

280954

NUT,3/4"-10, G5

8шт.

366112R1

WASHER

.781 x 1.250 x .105

4шт.

16

622192R91

WHEEL

15 inch, for 7.60-15 6 ply tire

2шт.

810769C1

VALVE

steel

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical hd

12шт.

17

136929C2

PLATE

ASSY, tightener wheel, note A

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

18

134313C1

ARM

BAR ASSY, wheel idler, note A

1шт.

19

137164C1

SPRING

wheel idler RH, note A

1шт.

Q3500

WASHER

.656 x 1.125 x .067 pln

1шт.

20

472344R3

SPROCKET

idler, note A

2шт.

120396

WASHER

.531 x 1.062 x .074

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

21

134130C2

SPROCKET ASSY.

SPROCKET ASSY, drive wheel 27T, note A

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

22

140990C1

DRIVE BUSHING

BUSHING, drive shaft

1шт.

23

141403C2

BAR

seed drive

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

22440R1

WASHER

1.031 x 1.750 x .027

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

24

CHAIN, wheel drive, 1 inch, note A, use 69 links of 1 in. ext, pitch agricultural roller chain from a 10 ft roll marked 569088R91 and one connecting link, 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

25

142423C93

CYLINDER

ASSY, 2-1/4 x 8 in. single acting ram type hydraulic, unit B w/serial no. 14500 and below, unit G w/serial no. 4200 and below

2шт.

25

1272682C92

CYLINDER

ASSY, 2-1/4 x 8 in. single acting ram type hydraulic, unit B w/serial no. 14501 and above, unit G w/serial no. 4201 and above, for components see list of parts under details of hyd cylinder

2шт.

22095R1

PIN

3/4 x 3. hd type 5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

26

149440C1

HOSE, 42 in., cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

2шт.

26

141130C2

HOSE

60 in., cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

2шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

28

9410307

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

1/2 C-Z hyd fld tube swivel, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

2шт.

28

9402982

TEE,3/4"-16, 37 Degree

1/2 C-Z hyd flared three way, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

2шт.

29

144822C1

HOSE

48 in.

2шт.

30

137175C1

HOSE,9.52 mm ID x 813.00 mm

32 in. wheel cyl, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

2шт.

30

1264128C1

HOSE

22 in. wheel cyl, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

2шт.

31

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg

2шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

33

1264309C1

FLANGE

sprocket, note A

2шт.

34

1277981C1

SPACER

axle, note B

2шт.

35

1277737C1

SPROCKET

wheel 12T, note B

1шт.

36

91405C1

PLATE

ASSY, wheel drive idler, note B, replaces 1279011C2

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

37

1277726C1

ROLLER,48mm OD x 34mm L

idler, note B

1шт.

22198R1

WASHER

.656 x 1.125 x .042

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

38

CHAIN, wheel drive, 1-1/4 in., note B, use 55 links from bulk roll marked, 569089R91 and one connecting link, 1277928C91

1шт.

1277928C91

LINK

connecting

1шт.

39

1277925C91

RATCHET

ASSY, LH 23T, note B

1шт.

39

1277926C91

PINION

RATCHET ASSY, RH 23T, note B

1шт.

40

1277993C1

SPROCKET ASSY.

SPROCKET, 23T, note C

2шт.

41

1279873C1

BAR ASSY.

COUPLER, ratchet, note C, replaces 1277992C1

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

4шт.

42

1277994C1

PIN,11.11mm OD

L-PIN, Note C

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

43

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, note C

2шт.

44

1277995C1

SPRING

note C

4шт.

45

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub, note C

2шт.
