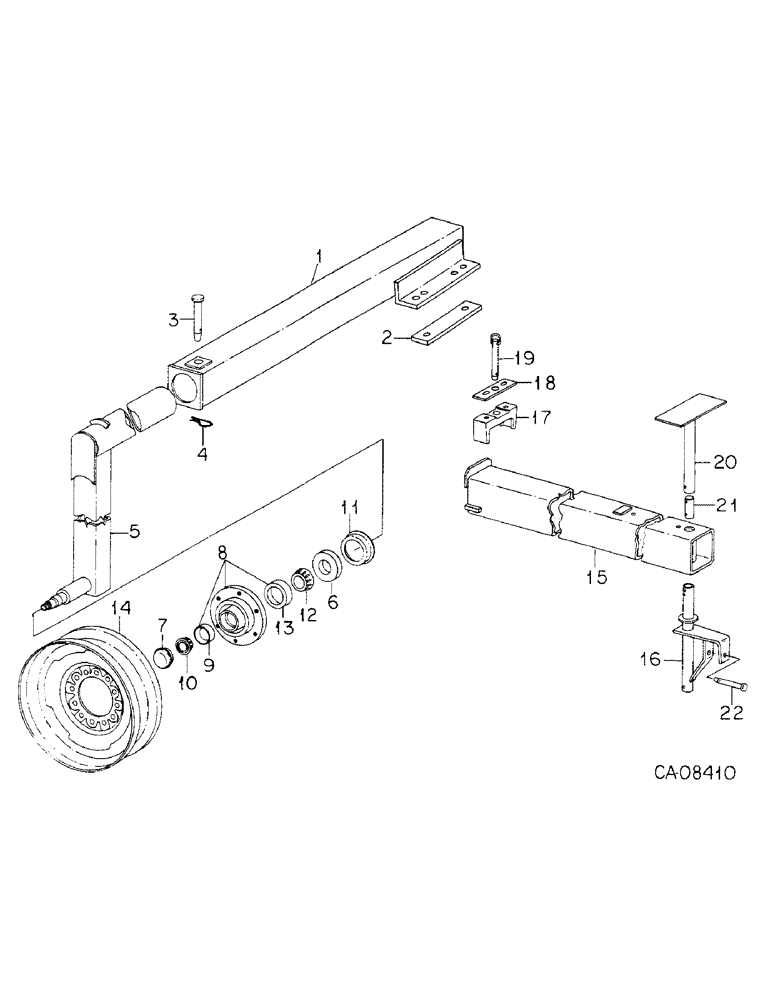

Запчасти Case IH 800 (05-52) - WHEELS, TRANSPORT ATTACHMENT, UNITS R, U AND V, FOR PLANTERS WITH ASSIST WHEELS (06) - POWER TRAIN

1

1264091C2

TUBE ASSY.

TUBE ASSY, transport

1шт.

2

1264004C3

SUPPORT

strap

2шт.

27022R1

BOLT,Hex, 1" - 8 x 10", Gr 8

1 x 10 PHC type 8

4шт.

25531R1

NUT,1"-8, G8

1 PHC type 8

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

3

541769R1

PIN

tube

1шт.

4

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

5

145023C2

AXLE

ASSY, wheel

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt-hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

1шт.

6

654674R91

OIL SEAL

wheel hub oil

1шт.

7

663906R1

CAP

hub

1шт.

8

465496R11

HUB

ASSY, six bolt wheel

1шт.

9

651817R1

BEARING CUP

BEARING, outer cup

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

1шт.

11

654675R1

RING

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

1шт.

13

663558R1

BEARING CUP

BEARING, inner cup

1шт.

14

481344R91

WHEEL

14 in. x 8 KB 6 bolt, for 9.5L-14 6 ply tire

1шт.

655042R1

BOLT

BOLT, 1/2-20 wheel

6шт.

810768C1

VALVE

steel

1шт.

15

141414C3

TUBE,153 mm Length

ASSY, transport tongue

1шт.

16

149408C2

PIVOT

ASSY, clevis

1шт.

17

1250714C1

BLOCK

stop

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

18

149431C2

BAR

transport

1шт.

19

147460C1

PIN,19.05mm OD x 254.26mm L

ASSY, 3/4 tongue

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

20

149405C1

STAND

ASSY, parking

1шт.

21

149407C1

ROD

support stand

1шт.

22775R1

PIN

3/8 x 2.500 hd type 1

1шт.

586591R1

COTTER PIN

PIN, quick attachable cot.

1шт.

22

542319R1

PIN

3/4 x 6 in.

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

1284374C1

REFLECTOR,Reflector Red

red, replaces 175311C1

2шт.

1284365C1

REFLECTOR,Reflector Amber

amber, replaces 174732C1

1шт.
