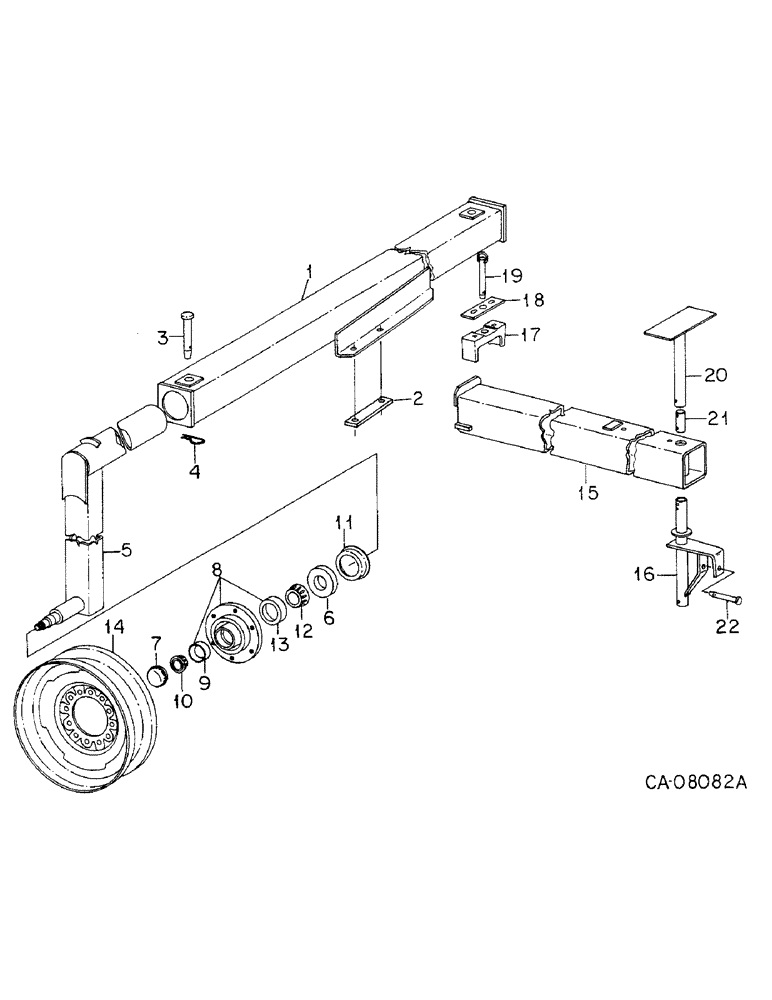

Запчасти Case IH 800 (05-50) - WHEELS, TRANSPORT ATTACHMENT, UNIT N (06) - POWER TRAIN

1

145020C1

TUBE,850 mm Length

ASSY, transport, for planters w/o assist wheels

1шт.

27787R1

BOLT,Hex, 7/8" - 9 x 9 1/2", Gr 8

7/8 x 9-1/2 PHC type 8

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

25530R1

NUT,7/8"-9, G8

7/8 PHC type 8

4шт.

1

1264091C2

TUBE ASSY.

TUBE ASSY, transport, for planters w/assist wheels

1шт.

27022R1

BOLT,Hex, 1" - 8 x 10", Gr 8

1 x 10 PHC type 8

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

25531R1

NUT,1"-8, G8

1 PHC type 8

4шт.

2

1264004C3

SUPPORT

BAR, support strap

2шт.

3

541769R1

PIN

2шт.

4

517843R1

COTTER PIN

PIN, qa cot

2шт.

5

145023C2

AXLE

ASSY, wheel

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

2шт.

6

654674R91

OIL SEAL

wheel hub oil

2шт.

7

663906R1

CAP

hub

2шт.

8

465496R11

HUB

ASSY, 6 bolt wheel

2шт.

9

651817R1

BEARING CUP

BEARING, outer cup

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

11

654675R1

RING

2шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

2шт.

13

663558R1

BEARING CUP

BEARING, inner cup

2шт.

14

481344R91

WHEEL

14 in. x 8 KB 6 bolt

2шт.

655042R1

BOLT

BOLT, 1/2-20 wheel

12шт.

810768C1

VALVE

steel

2шт.

15

141414C3

TUBE,153 mm Length

ASSY, transport tongue

1шт.

16

149408C2

PIVOT

ASSY, clevis

1шт.

17

1250714C1

BLOCK

stop

1шт.

18

149431C2

BAR

transport

1шт.

19

147460C1

PIN,19.05mm OD x 254.26mm L

ASSY, tongue

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

20

149405C1

STAND

ASSY, parking

1шт.

21

149407C1

ROD

support stand

1шт.

22775R1

PIN

3/8 x 2.500 hd type 1

1шт.

586591R1

COTTER PIN

PIN, quick attachable cot.

1шт.

22

542319R1

PIN

3/4 x 6 in.

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

1284374C1

REFLECTOR,Reflector Red

red, replaces 175311C1

2шт.

1284365C1

REFLECTOR,Reflector Amber

amber, replaces 174732C1

1шт.
