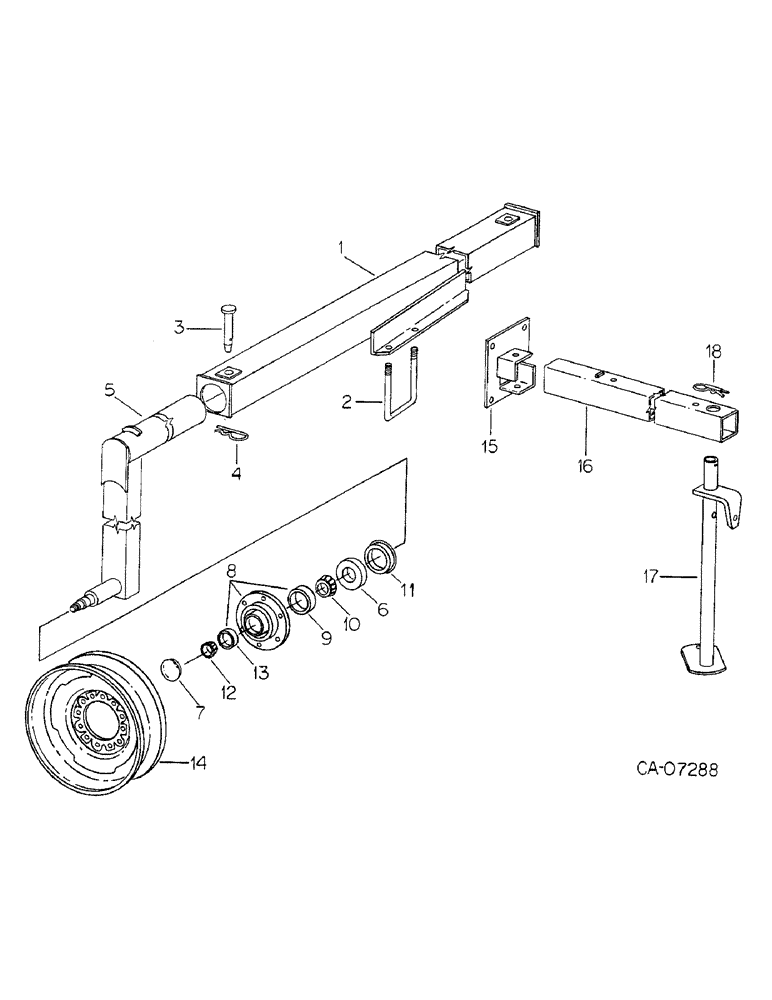

Запчасти Case IH 800 (05-48) - WHEELS, TRANSPORT ATTACHMENT, UNITS K AND L (06) - POWER TRAIN

1

145020C1

TUBE,850 mm Length

ASSY, transport, for planters w/o assist wheels

1шт.

1

1264091C2

TUBE ASSY.

TUBE ASSY, transport, for planters w/assist wheels

1шт.

2

492989R2

BOLT,7/8" - 9 x 9"

U-BOLT

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

131047

WASHER,7/8"

7/8"

4шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

.938 x 1.750 x .179 hdn

2шт.

3

541769R1

PIN

2шт.

4

517843R1

COTTER PIN

PIN, qa cot

2шт.

5

145023C2

AXLE

wheel

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

2шт.

6

654674R91

OIL SEAL

wheel hub oil

2шт.

7

663906R1

CAP

hub

2шт.

8

465496R11

HUB

ASSY, 6 bolt wheel

2шт.

9

651817R1

BEARING CUP

BEARING, outer cup

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

11

654675R1

RING

2шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

2шт.

13

663558R1

BEARING CUP

BEARING, inner cup

2шт.

14

481344R91

WHEEL

14 in. x 8 KB 6 bolt

2шт.

655042R1

BOLT

BOLT, 1/2-20 wheel

12шт.

810768C1

VALVE

steel

2шт.

15

549838R1

BRACKET

ASSY, hitch

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

16

549841R1

TUBE

ASSY, hitch

1шт.

17

58231C1

STAND

ASSY, parking

1шт.

493990R2

PIN

pointed

2шт.

517843R1

COTTER PIN

PIN, qa cot

2шт.

18

473865R91

LINCH PIN

PIN ASSY, quick attchable cot.

1шт.

1284374C1

REFLECTOR,Reflector Red

red, replaces 175311C1

2шт.

1284365C1

REFLECTOR,Reflector Amber

amber, replaces 174732C1

1шт.
