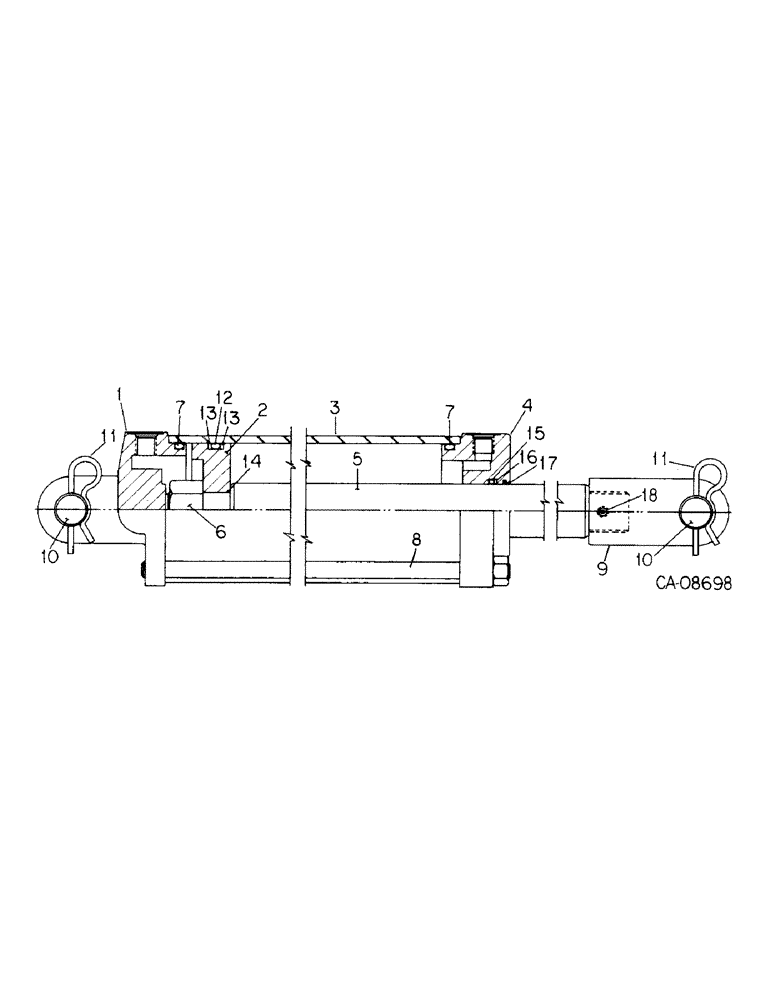

Запчасти Case IH 800 (05-44) - WHEELS, HYDRAULIC CYLINDER, PRINCE, 5 X 12 INCH DOUBLE ACTING UNITS W, X AND Y (06) - POWER TRAIN

142547C93

CYLINDER ASSY.

CYLINDER ASSY, 5 x 12 in. double acting hydraulic

1шт.

1

79931C1

END

hyd cylinder rear

1шт.

2

76701C1

PISTON

hyd cylinder

1шт.

3

79930C1

SLEEVE, hyd cylinder

1шт.

4

79933C1

END

hyd cylinder front

1шт.

5

79932C1

ROD

piston

1шт.

6

27137R1

LOCK NUT,1 1/4"-12, GC

NUT, 1-1/4-NF PHC p/t lock type 8

1шт.

7

O-RING (NSS), 4-1/2 x 5 x .275, Duro 90, order kit, 76980C1

2шт.

8

79934C2

ROD,5/8" - 18 x 17.625"

STUD, hyd cylinder tie rod

4шт.

9413970

LOCK NUT,5/8"-11, GB

NUT, 5/8-NF CAD p/t lock type 5

4шт.

9

76704C1

FORK

YOKE ASSY, hyd cylinder

1шт.

10

76706C1

PIN

hyd cylinder clevis, only part of cylinder assemblies, 142547C91 and 142547C92

2шт.

11

520175R1

CLIP

PIN, quick attachable cot., only part of cylinder assemblies, 142547C91 and 142547C92

4шт.

12

O-RING (NSS), 4-1/2 x 5 x .275, Duro 70, order kit, 76980C1

1шт.

13

BU-WASHER (NSS), 4-1/2 x 5 x 3/32, order kit, 76980C1

2шт.

14

O-RING (NSS), 1-1/4 x 1-3/8 x .070, order kit, 76980C1

1шт.

15

O-RING (NSS), 2 x 2-3/8 x .210, order kit, 76980C1

1шт.

16

BU-WASHER (NSS), 2 x 2-3/8 x 3/32, order kit, 76980C1

1шт.

17

WIPER (NSS), 2 x 2-5/16 x .107, order kit, 76980C1

1шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, insert

1шт.

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8 NF x 3/8 pln f/pt hdl/hs set

1шт.

76980C1

PACKAGE

KIT, hydraulic cylinder seal, consists of ref nos 7, 12 through 17 and two other O-rings

1шт.
