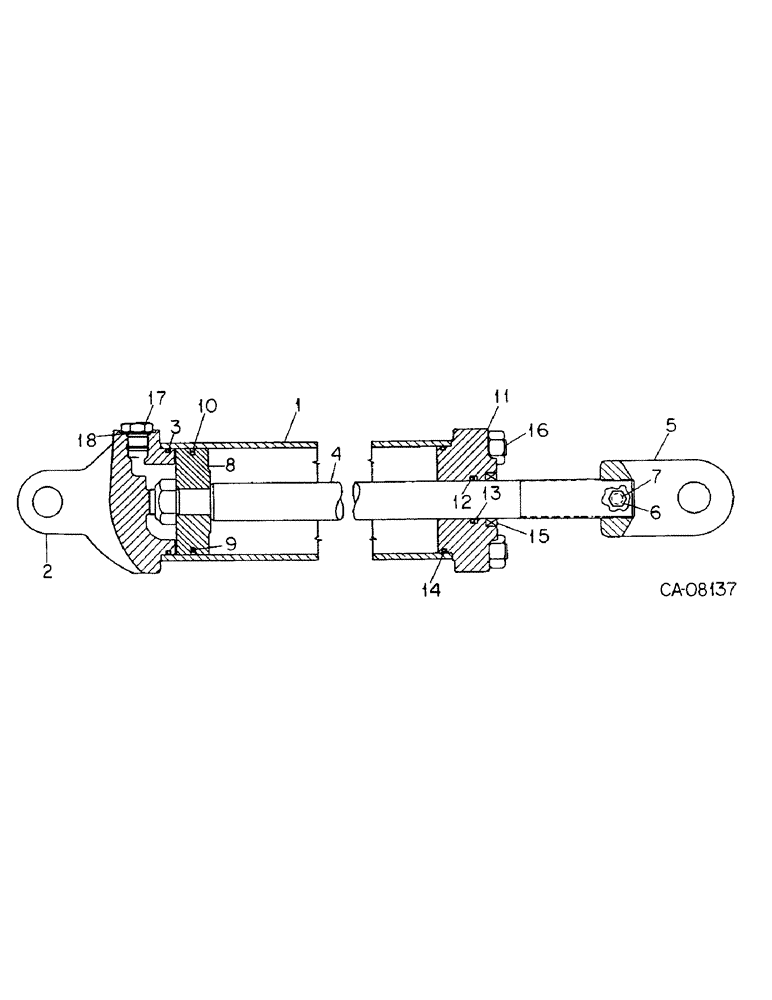

Запчасти Case IH 800 (05-41) - WHEELS, HYDRAULIC CYLINDER, 4 X 16 INCH DOUBLE ACTING, UNITS C, D, M AND S (06) - POWER TRAIN

1252264C92

CYLINDER

ASSY, 16 x 4 in. double acting hydraulic, order cylinder assy, 1282329C91

1шт.

1

145245C1

SLEEVE

hyd cylinder

1шт.

2

145244C1

HEAD

hyd cylinder rear

1шт.

3

O-RING (NSS), 3-3/4 x 4 class 6, order O-ring & seal service kit

1шт.

4

1263346C1

ROD ASSY.

ROD, hyd cylinder piston, replaces 145239C2

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

hyd cylinder piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cylinder piston rod clevis

1шт.

8

149930C2

PISTON

hyd cylinder

1шт.

9

O-RING (NSS), 3-1/2 x 3-11/16 class 5, order O-ring & seal service kit

1шт.

10

RING (NSS), piston seal, order O-ring & seal service kit

1шт.

11

1261047C91

HEAD

ASSY, front, replaces 145246C1, includes seal, 119203C1 (NSS) and ref nos 14 and 15, order head, 1260843C1 and service kit, 79979C2

1шт.

11

1260843C1

HEAD

front

1шт.

12

O-RING (NSS), 1-1/2 x 1-7/8 class 6, used w/head, 145246C1, order service kit, 145577C1

1шт.

12

SEAL (NSS), piston rod urethane, used with head assy, 1260047C91 or head, 1260843C1, order service kit, 79979C2

1шт.

13

WASHER (NSS), O-ring back-up, used w/head, 145246C1, order service kit, 145577C1

1шт.

14

O-RING (NSS), 3-3/4 x 4 class 6, order O-ring & seal service kit

1шт.

15

SEAL (NSS), piston rod wiper, order O-ring & seal service kit

1шт.

16

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT, hyd cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

17

9410359

PLUG

1/2 C-Z str thd O-ring boss

1шт.

18

O-RING (NSS), 1/2 OD tube class 6, order O-ring & seal service kit

1шт.

145577C1

KIT

O-ring and seal service, used with head, 145246C1

1шт.

79979C2

SEAL KIT

KIT, O-ring and seal service, used with head assy, 1261047C91 or head, 1260843C1

1шт.
