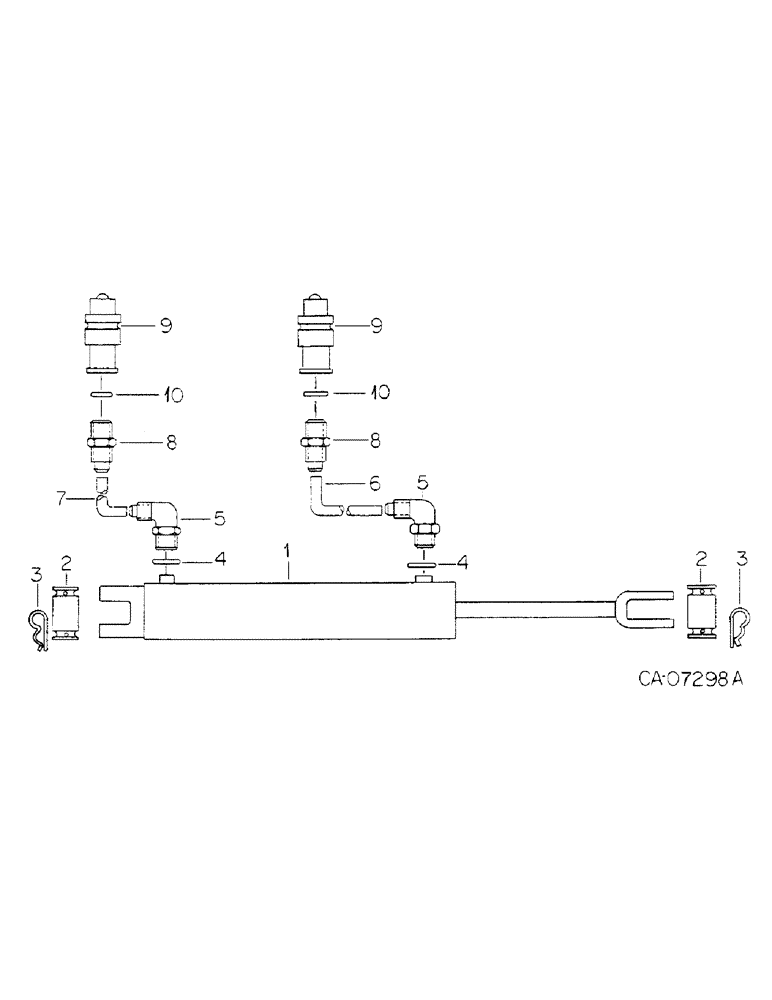

Запчасти Case IH 800 (05-40) - WHEELS, HYDRAULIC CYLINDER & CONNECTIONS FOR ENDWISE TRANSPORT UNITS C, D, E, M, S AND T (06) - POWER TRAIN

1

145436C92

CYLINDER

ASSY, 5 x 16 in. DA hydraulic, Prince, units E and T, optional with 97761C1, for components see list of parts under details of hyd cyl

1шт.

1

97761C1

CYLINDER

ASSY, 5 x 16 in. double acting hydraulic, Iowa industrial, units E and T, optional with 145436C92, for components see list of parts under details of hyd cylinder

1шт.

1

1252323C91

CYLINDER ASSY.

CYLINDER ASSY, 4 x 16 in. DA hydraulic, units C, D, M & S, optional with 1282329C91, for components see list of parts under details of hyd cyl

1шт.

1

1252264C92

CYLINDER

ASSY, 4 x 16 in. DA hydraulic, units C, D, M & S, order cylinder assy, 1282329C91, for components see list of parts under details of hyd cyl

1шт.

1

1282329C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 4 x 16 in. double acting hydraulic, units C, D, M and S, optional with 1252323C91, for components see list of parts under details of hyd cylinder

1шт.

2

76706C1

PIN

cylinder, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

2шт.

2

1252319C1

PIN,31.75mm OD x 96mm L

cylinder, 1-1/4 in. diameter, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

2шт.

3

520175R1

CLIP

PIN, quick attachable cot., used w/pin, 76706C1

4шт.

3

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , used w/pin, 1252319C1 1/4" x 2"

4шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, units C, D, M & S

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, units E and T

2шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90 deg, units C, D, M, S

2шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

37 deg hyd flare 90 deg adj, units E and T

2шт.

6

144912C2

HOSE ASSY.

HOSE, hyd, 364 in./9246mm, units D and S

1шт.

6

144915C1

HOSE ASSY.

HOSE, hyd, 263 in./6680mm, units E and T

1шт.

6

144914C2

HOSE ASSY.

HOSE, hyd, 310 in./7878mm, units C & M

1шт.

7

144913C2

HOSE

hyd, 346 in./8789mm, units D and S

1шт.

7

58767C1

HOSE

hyd, 242 in./6147mm, units E and T

1шт.

7

144914C2

HOSE ASSY.

HOSE, hyd, 310 in./7878mm, units C & M

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, 2 for units E and T

1шт.

8

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht, 2 for units C, D, M and S

1шт.

9

544787R91

COUPLING, BREAK AWAY

COUPLER, quick attachable male, IH

2шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER, quick attachable male, ISO

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.
