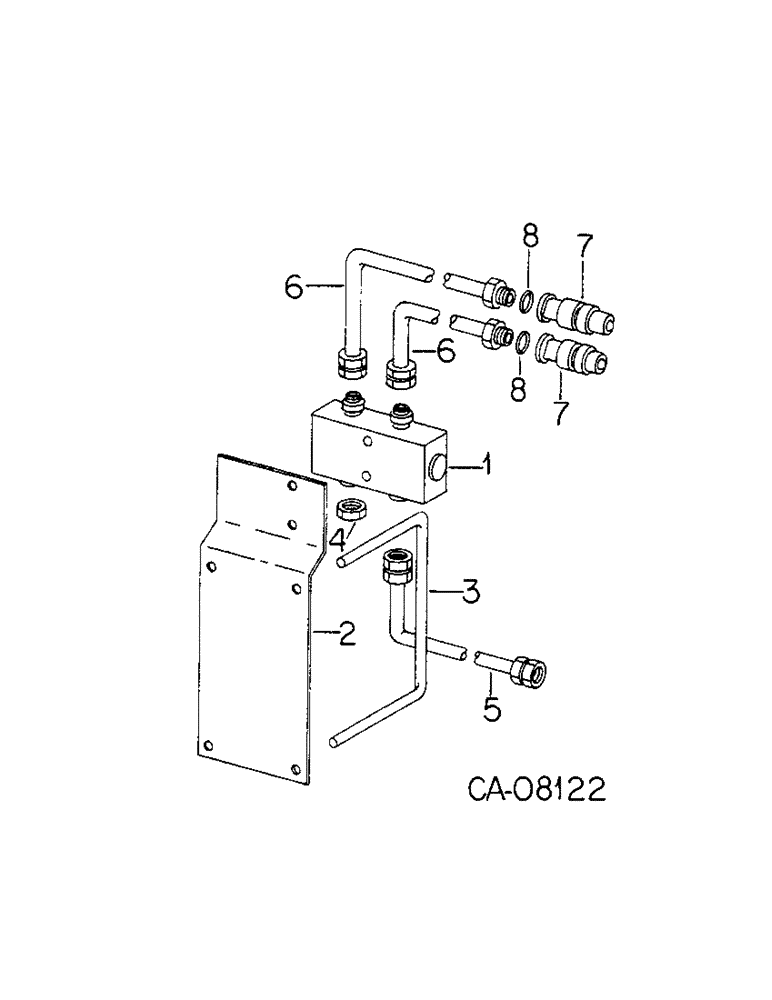

Запчасти Case IH 800 (05-36[1]) - WHEELS, ALTERNATING CHECK VALVE, UNITS A, B, F AND G (06) - POWER TRAIN

1

142864C95

VALVE

ASSY, alternating check, for components see list of parts under details of alternating check valve

1шт.

2

1264368C1

SUPPORT

check valve

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

4

9403373

CAP,37 Degree, 7/8"-14

5/8 C-Z hyd flared tube

1шт.

5

1264369C1

HOSE ASSY.

HOSE, 1/2 x 120 in. pressure

1шт.

6

116098C91

HOSE

1/2 x 61 in. pressure, replaces 1254219C1

2шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLER, quick attachable male, IH

2шт.

7

1272399C2

QUICK MALE COUPLING

COUPLER, quick attachable male, ISO

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.
