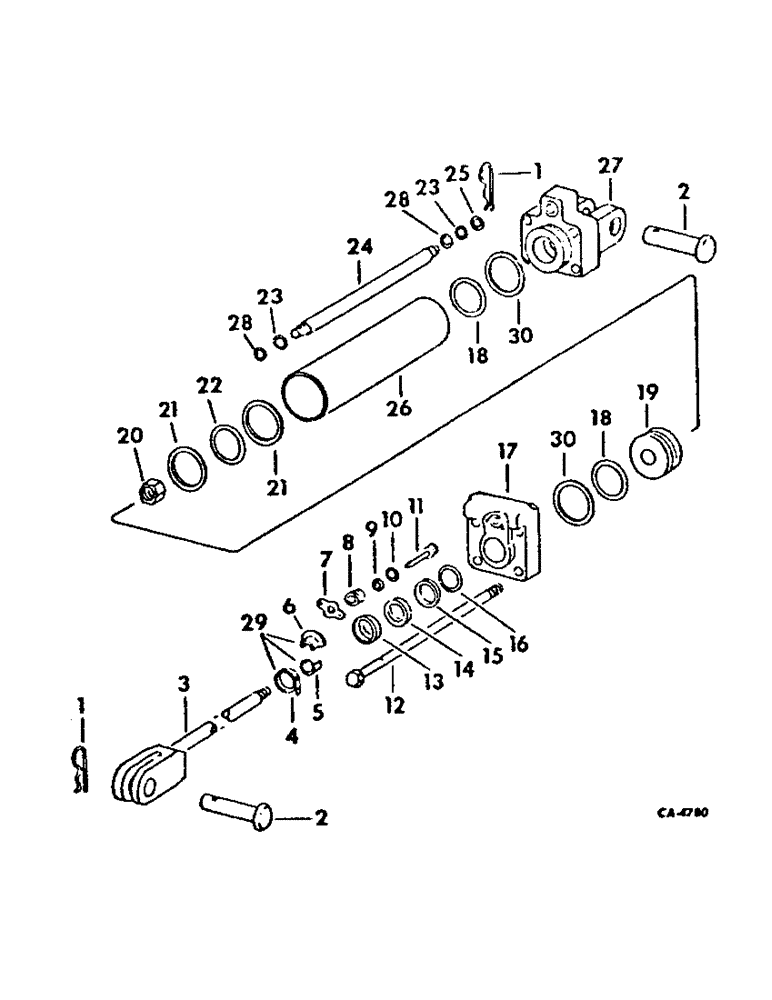

Запчасти Case IH 800 (05-35) - WHEELS HYD. CYL. 3-1/2 X 8" DOUBLE ACTING COMPETITIVE TRAC. UNABLE TO LIFT PRESENT ASSIST WHEEL CYL. (06) - POWER TRAIN

371292R95

CYLINDER

ASSY, 3-1/2 x 8 in. hydraulic, for service replacement, order

1шт.

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADPATER, 7/8-14 female x 3/4-16 male O-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

1

520175R1

CLIP

PIN, 3/16 quick attachable cot

2шт.

2

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis, replaces 61571C1

2шт.

3

60784C91

ROD

ASSY, piston

1шт.

4

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

5

360372R1

COLLAR

stroke limit plain half

1шт.

6

361010R1

COLLAR

stroke limit flanged half

1шт.

7

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4 x 9/16 pln type 5

2шт.

8

361007R11

RETAINER

ASSY, limit stop valve

1шт.

9

O-RING (NSS), 3/16 x 5/16 x 1/16, order package, 363138R94

1шт.

10

O-RING (NSS), 5/8 x 13/16 x 3/32, order package, 363138R94

1шт.

11

361006R12

VALVE

ASSY, limit stop

1шт.

12

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-NF pln type 5

4шт.

13

RETAINER (NSS), piston rod dust seal, order package, 363138R94

1шт.

14

SEAL (NSS), piston rod dust, order package, 363138R94

1шт.

15

WASHER (NSS), rod seal back-up, order package, 363138R94

1шт.

16

RING (NSS), piston rod gland, order package, 363138R94

1шт.

17

60786C91

HEAD

ASSY, cylinder front

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

2шт.

18

O-RING (NSS), 3-1/4 x 3-1/2 x 1/8, order package, 363138R94

2шт.

19

361003R1

HEAD

piston

1шт.

20

9412368

NUT

3/4-16 hex piston rod lock

1шт.

21

WASHER (NSS), piston head back-up, order package, 363138R94

2шт.

22

O-RING (NSS), 3-1/8 x 3-1/2 x 3/16, order package, 363138R94

1шт.

23

O-RING (NSS), 9/16 x 3/4 x 3/32, order package, 363138R94

1шт.

24

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

25

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

27

60782C1

HEAD

cylinder rear

1шт.

28

WASHER (NSS), O-ring back-up, order package, 363138R94

1шт.

29

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

30

WASHER (NSS), back-up, order package, 363138R94

2шт.

363138R94

PACKAGE

O-ring & seal service service, consists of ref nos 9, 10, 13, 14, 15, 16, 18, 21, 22, 23, 28 and 30

1шт.
