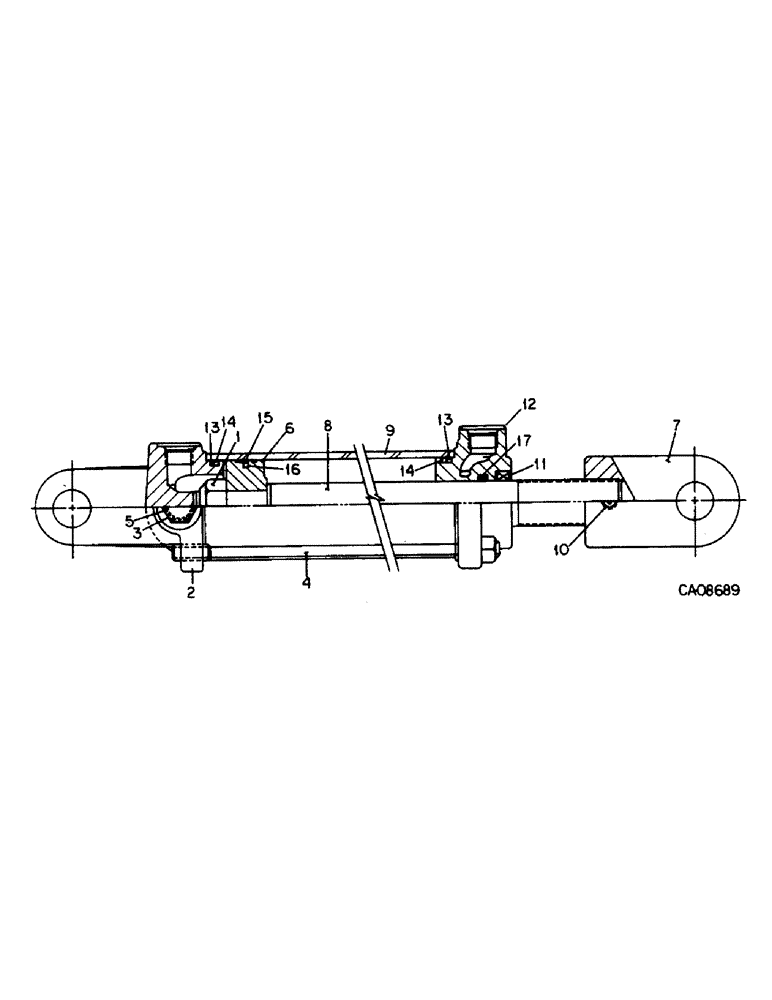

Запчасти Case IH 800 (05-32) - WHEELS, HYDRAULIC CYLINDER, 2-1/2 X 8 IN. DOUBLE ACTING UNITS W, X AND Y (06) - POWER TRAIN

1272145C91

CYLINDER ASSY.

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

2

1272766C1

HEAD

hydraulic cylinder rear

1шт.

3

9410359

PLUG

1/2 C-Z str thd O-ring boss

1шт.

4

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT, hyd cylinder tie

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

5

O-RING (NSS), 1/2 OD tube, order kit, 79975C1

1шт.

6

145221C3

PISTON

hyd cylinder

1шт.

7

145233C1

CLEVIS,1/4" - 12

hyd cylinder piston rod

1шт.

8

145231C1

PISTON ROD

ROD, hyd cylinder piston

1шт.

9

BODY (NSS), cylinder tube, order cylinder assy

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cylinder piston rod clevis

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 c/pt znp hdl/s set

1шт.

11

WIPER (NSS), piston rod, order kit, 79975C1

1шт.

12

1272767C1

CYLINDER END CAP

HEAD, hyd cylinder front

1шт.

13

WASHER (NSS), back-up, order kit, 79975C1

2шт.

14

O-RING (NSS), 2-1/4 x 2-1/2 class 6, order kit, 79975C1

2шт.

15

RING (NSS), piston O-ring seal, order kit, 79975C1

1шт.

16

O-RING (NSS), 2-1/16 x 2-1/4 class 5, order kit, 79975C1

1шт.

17

SEAL (NSS), piston rod urethane, order kit, 79975C1

1шт.

79975C2

SEAL KIT

KIT, hyd cylinder service, consists of ref nos 5, 11 and 13 through 17

1шт.
