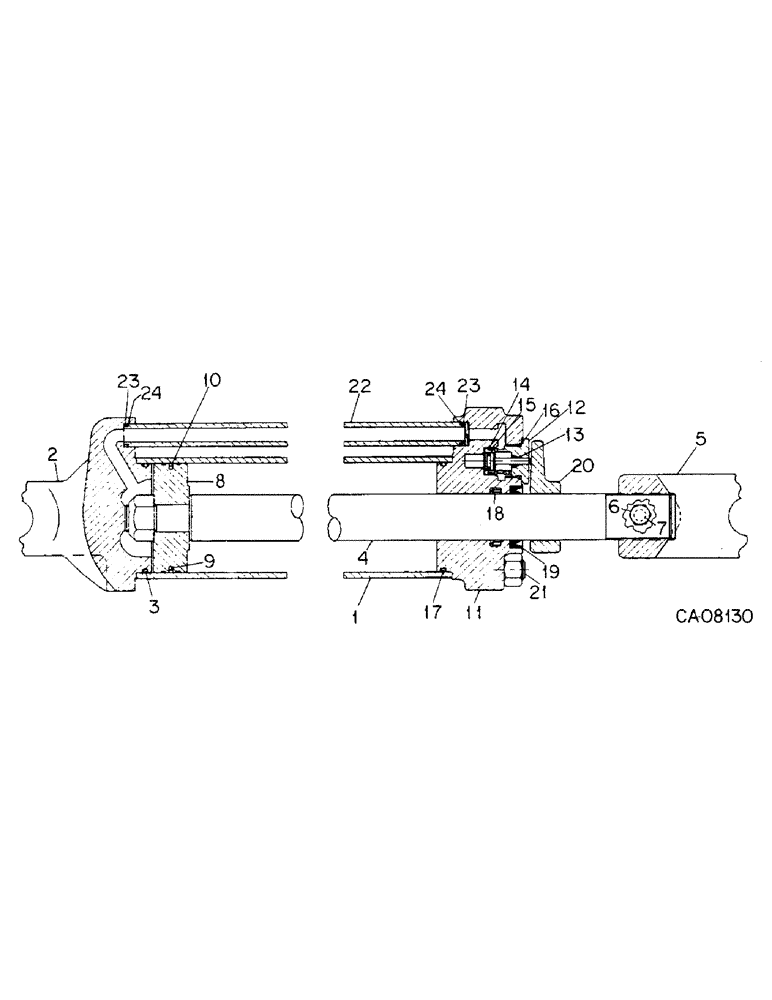

Запчасти Case IH 800 (05-31) - WHEELS, HYDRAULIC CYLINDER, 2-1/2 X 8 IN. DOUBLE ACTING UNITS H, J, K, L, N, P, Q, U, V, AND Z (06) - POWER TRAIN

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1

SLEEVE (NSS), cylinder, order cylinder assy

1шт.

2

145363C1

HEAD

rear

1шт.

3

O-RING (NSS), 2-1/4 x 2-1/2 class 6, order kit, 79975C1

1шт.

4

145500C1

PISTON ROD

ROD, piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

5

145233C1

CLEVIS,1/4" - 12

END, piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, rod end insert

1шт.

8

145221C3

PISTON

cylinder

1шт.

9

O-RING (NSS), 2-1/16 x 2-1/4 class 5, order kit, 79975C1

1шт.

10

RING (NSS), piston O-ring seal, order kit, 79975C1

1шт.

11

145365C1

END

HEAD, front

1шт.

12

1260968C91

VALVE

ASSY, limit stop, includes ref nos 13 thru 16

1шт.

13

O-RING (NSS), 3/16 x 5/16 class 6, order kit, 1272597C91

1шт.

14

RING (NSS), stop limit back-up, order kit, 1272597C91

1шт.

15

O-RING (NSS), 11/16 x 7/8 class 6, order kit, 1272597C91

1шт.

16

O-RING (NSS), 3/4 OD tube class 6, order kit, 1272597C91

1шт.

17

O-RING (NSS), 2-1/4 x 2-1/2 class 6, order kit, 79975C1

1шт.

18

SEAL (NSS), piston rod urethane, order kit, 79975C1

1шт.

19

SEAL (NSS), piston rod wiper, order kit, 79975C1

1шт.

20

224579C3

ARM

VALVE, cylinder trip

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, hyd cylinder 'L'

1шт.

21

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

cylinder tie

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

22

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

110730

LOCK WASHER

WASHER, 3/8 pln lt lock

2шт.

23

O-RING (NSS), 9/16 x 3/4 class 6, order kit, 1272597C91

2шт.

24

WASHER (NSS), return tube O-ring back-up, order kit, 1272597C91

2шт.

79975C2

SEAL KIT

KIT, hydraulic cylinder seal, consists of ref nos 3, 9, 10, 17, 18 and 19

1шт.

1272597C91

KIT

valve & transfer tube service, consists of ref nos 13 thru 16, 23 and 24

1шт.
