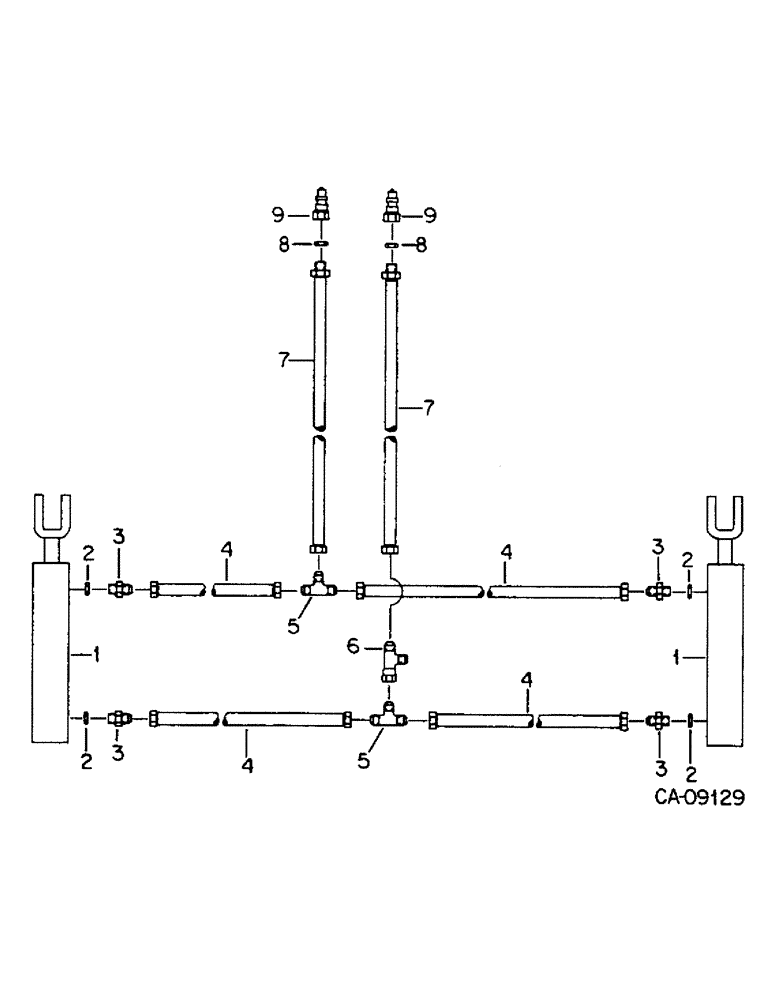

Запчасти Case IH 800 (05-29) - WHEELS, HYDRAULIC CYLINDER AND CONNECTIONS, FOR ASSIST WHEELS, UNIT Z (06) - POWER TRAIN

1

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic, for components see list of parts under details of hyd cylinder

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis

4шт.

520175R1

CLIP

PIN, quick attachable cot.

4шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

3

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, C-Z hyd fld 5/8 to 1/2 sht

4шт.

4

1250694C1

HYDRAULIC HOSE

HOSE, 1/2 x 100 in. hydraulic

4шт.

5

9402983

TEE,7/8"-14, 37 Degree

5/8 C-Z hyd flared three way

2шт.

6

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel

1шт.

7

116098C91

HOSE

1/2 x 60 in. hydraulic

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

9

544787R91

COUPLING, BREAK AWAY

COUPLER, quick attachable male, IH

2шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER, quick attachable male, ISO

2шт.

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

2шт.
