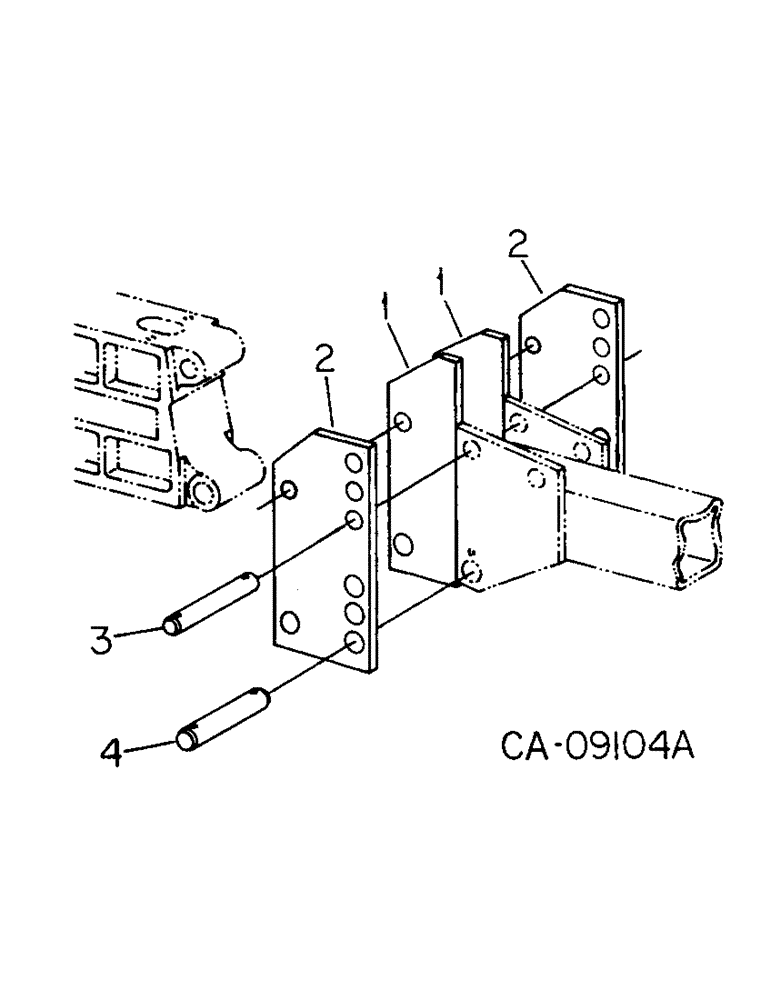

Запчасти Case IH 800 (05-26) - WHEELS, ASSIST WHEEL ADJUSTMENT ATTACHMENT, UNITS W, X AND Y SERIAL NO. 19900 AND BELOW (06) - POWER TRAIN

1

90635C1

BAR

assist wheel adjusting, replaces bar, 1279779C1 by ordering two bars, 90635C1 and two plates, 90557C1

2шт.

2

90557C1

PLATE

assist wheel adjusting, replaces plate, 1279780C1 by ordering two plates, 90557C1 and two bars, 90635C1

2шт.

21466R1

BOLT,Hex, 1"-8 x 8 1/2", G5

1 x 8-1/2 type 5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9849633

NUT,1"-8, G5

1шт.

21162R1

WASHER

1.031 x 2.000 x .164

2шт.

25992R1

BOLT,1 1/4" - 7 x 9", Gr 8

1-1/4 x 9 PHC type 8

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

25984R1

NUT,1 1/4"-7, G8

1-1/4 PHC type 8

1шт.

3

1279783C1

PIN

upper link

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

4

1279784C1

PIN

lower link

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.
