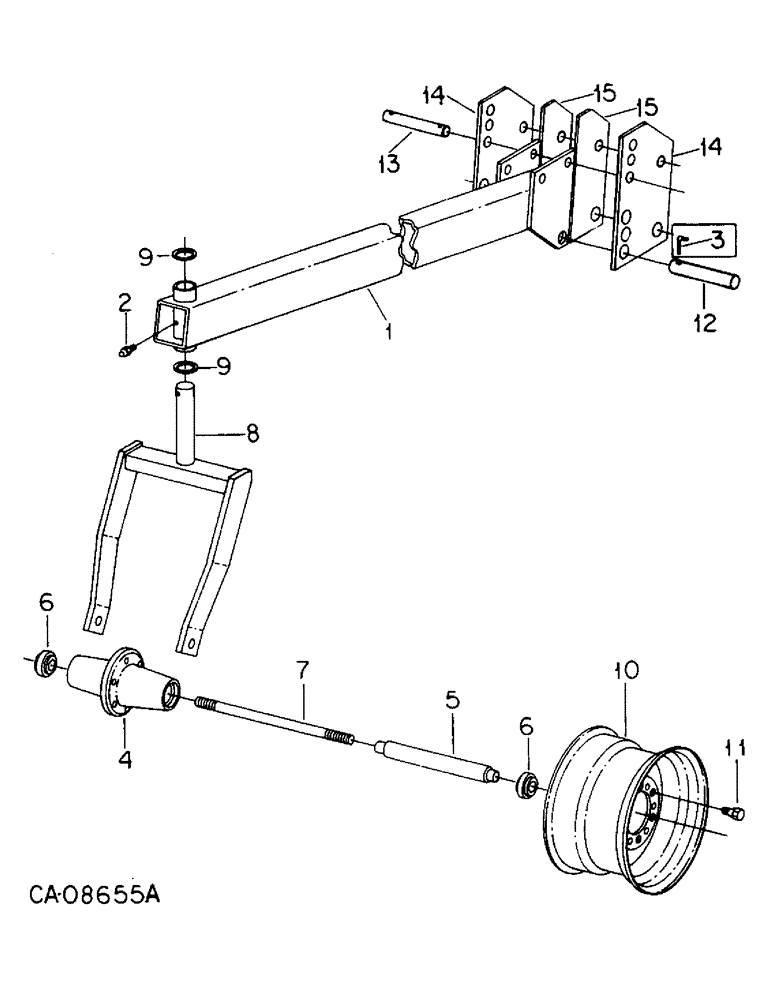

Запчасти Case IH 800 (05-25) - WHEELS, ASSIST WHEEL, UNITS W, X AND Y (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1268103C1
TUBE,1695 mm Length
ASSY, assist wheel
1шт.
2
16982R91
FITTING
1/4 lub
1шт.
3
471323R1
LINCH PIN
PIN, L, lower link pin, serial no. 19900 and below
1шт.
4
541757R1
HUB
wheel
1шт.
5
541758R1
TUBE
SPACER, axle rod
1шт.
6
963078R91
BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"
ball
2шт.
7
541759R2
ROD
axle
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
2шт.
492-11100
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
9849633
NUT,1"-8, G5
2шт.
8
1277500C1
ARM ASSY.
ARM ASSY, assist wheel
1шт.
21656R1
COTTER PIN,3/8" x 2 3/4"
Pin, Split (Cotter), 3/8" x 2 3/4"
1шт.
9
21719R1
WASHER
2.031 x 2.750 x .105
2шт.
10
1277504C1
RIM
WHEEL, 15 x 10 LBH, for 12.5 L x 15 6 ply tire
1шт.
810769C1
VALVE
tire
1шт.
11
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
1/2 x 1-1/2 conical head wheel
6шт.
12
1268286C1
PIN
lower link, 1-1/4 x 7.28 in., serial no. 19900 and below
1шт.
21655R1
COTTER PIN,3/8" x 1 7/8"
Pin, Split (Cotter), 3/8" x 1 7/8"
1шт.
608700R1
WASHER
1.281 x 2.000 x .054
2шт.
12
1279784C1
PIN
lower link, 1-1/4 x 8.46 in., serial no. 19901 and above
1шт.
21655R1
COTTER PIN,3/8" x 1 7/8"
Pin, Split (Cotter), 3/8" x 1 7/8"
2шт.
13
1268287C1
PIN
upper link, 1 x 7.28 in., serial no. 19900 and below
1шт.
21655R1
COTTER PIN,3/8" x 1 7/8"
Pin, Split (Cotter), 3/8" x 1 7/8"
2шт.
13
1279783C1
PIN
upper link, 1 x 8.46 in., serial no. 19901 and above
1шт.
21655R1
COTTER PIN,3/8" x 1 7/8"
Pin, Split (Cotter), 3/8" x 1 7/8"
2шт.
14
90557C1
PLATE
assist wheel adjusting, serial no. 19901 and above
2шт.
21466R1
BOLT,Hex, 1"-8 x 8 1/2", G5
1 x 8-1/2 type 5
1шт.
21162R1
WASHER
1.031 x 2.000 x .164
2шт.
492-11100
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
9849633
NUT,1"-8, G5
1шт.
25992R1
BOLT,1 1/4" - 7 x 9", Gr 8
1-1/4 x 9 PHC type 8
1шт.
131050
WASHER,1 1/4"
1 1/4"
1шт.
25984R1
NUT,1 1/4"-7, G8
1-1/4 PHC type 8
1шт.
15
90635C1
BAR
assist wheel adjusting, serial no. 19901 and above
2шт.
Выбрано товаров: 34
