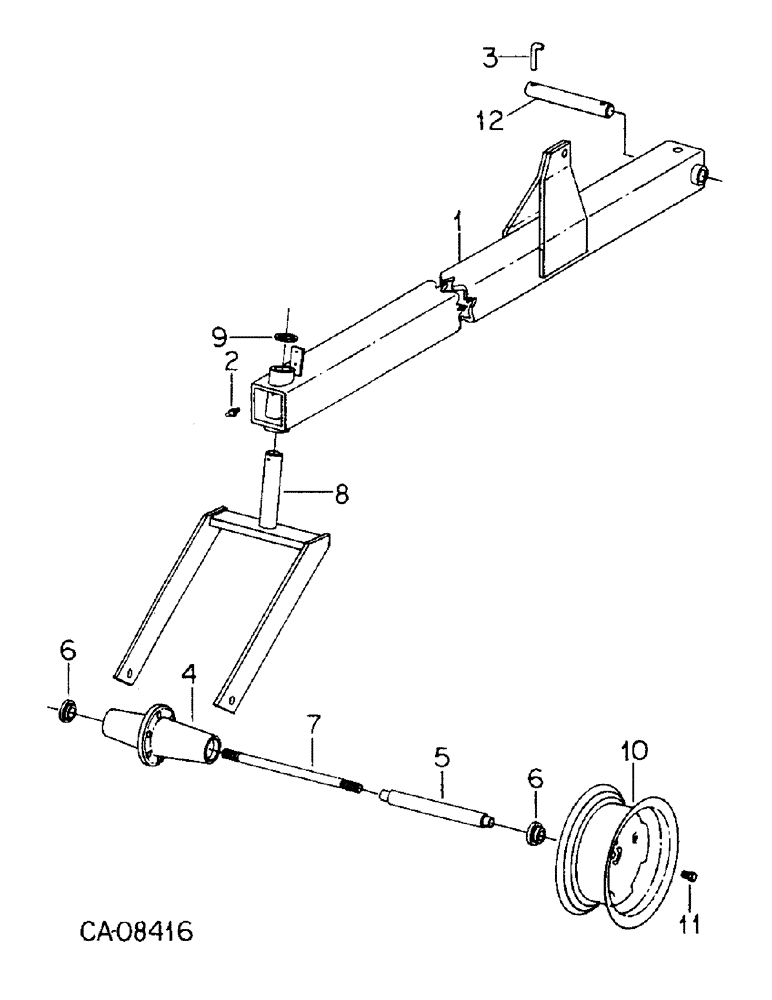

Запчасти Case IH 800 (05-24) - WHEELS, ASSIST WHEELS, UNIT R (06) - POWER TRAIN

1

1277622C91

TUBE

ASSY, w/product graphic, assist wheel

2шт.

1264465C1

PRODUCT GRAPHIC

caution

2шт.

2

66584D

FITTING

3/16 hole less ball check lub

4шт.

3

491601R2

PIN

pivot lock

2шт.

4

541757R1

HUB

wheel

2шт.

5

541758R1

TUBE

SPACER

2шт.

6

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

7

541759R2

ROD

axle

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

8

125563C2

ARM ASSY.

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

9

462997R1

WASHER

wear

4шт.

10

481344R91

WHEEL

14 in. for 9.5L x 14 high floatation tire

2шт.

810768C1

VALVE

steel

2шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1-1/2 conical head

12шт.

12

100054C1

PIN

pivot

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.
