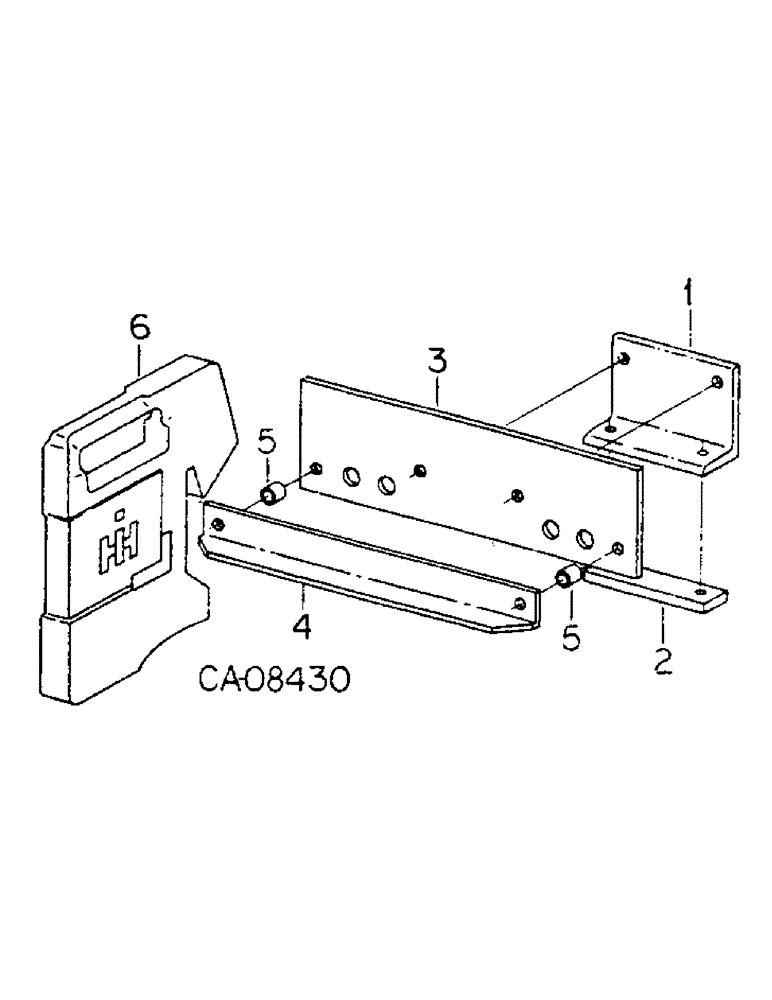

Запчасти Case IH 800 (05-23) - WHEELS, WEIGHT BRACKET ATTACHMENT, UNIT R, FOR ASSISTS WHEELS (06) - POWER TRAIN

1

113021C1

ANGLE

2шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2 x 7 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

113022C1

BAR

4шт.

3

1277855C1

PLATE

weight bracket

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 type 1

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

4шт.

4

1277856C1

ANGLE

weight clamp

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

5

529380R1

SPACER

weight clamp angle

4шт.

6

WEIGHT, 100 lbs, or as required, serviced only as a machine attachment

8шт.
