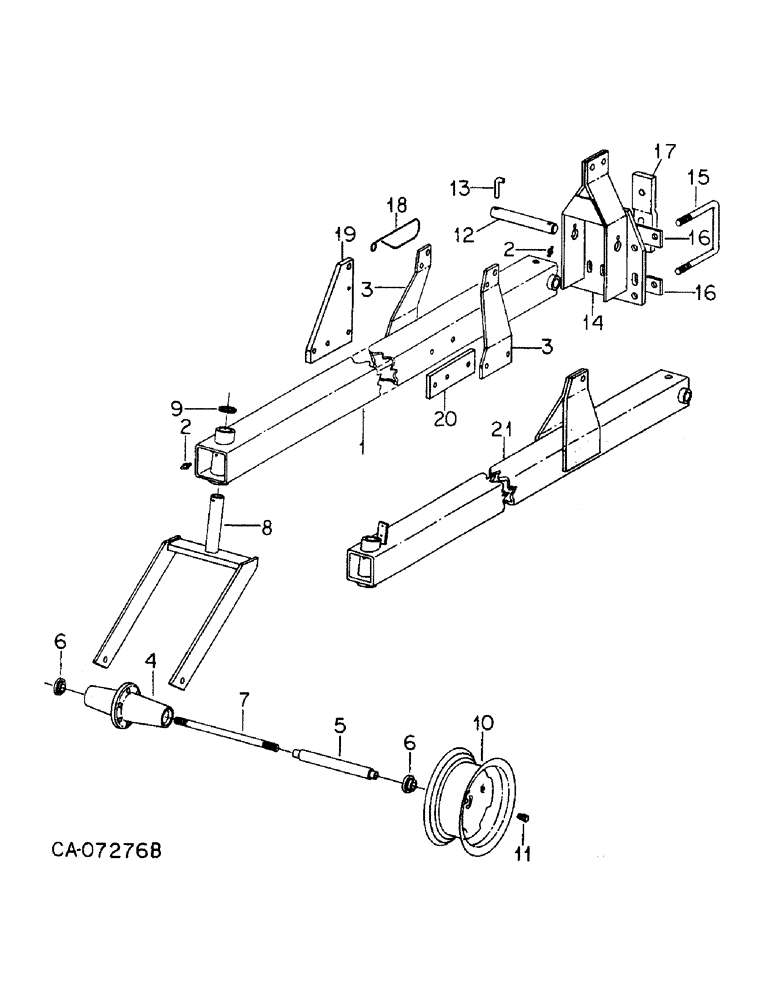

Запчасти Case IH 800 (05-22) - WHEELS, ASSIST WHEELS, ALL UNITS H, J, Q, U, V AND Z, UNITS K, L ,N AND P W/SERIAL NO. 3509 & BELOW (06) - POWER TRAIN

1

1267964C91

TUBE

ASSY, w/product graphic, assist wheels, 2 for units H, J, K, L, N, P and Q

1шт.

1264465C1

PRODUCT GRAPHIC

caution

2шт.

2

66584D

FITTING

3/16 str lub

4шт.

3

149557C2

SUPPORT

cylinder anchor LH, 2 for units H, K, L, N, P and Q

1шт.

3

149558C2

SUPPORT

cylinder anchor RH, 2 for units H, K, L, N, P and Q

1шт.

25700R1

BOLT,Hex, 3/4" - 10 x 7", Gr 8

3/4 x 7 PHC type 8

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

4

541757R1

HUB

wheel

2шт.

5

541758R1

TUBE

SPACER

2шт.

6

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

7

541759R2

ROD

axle

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

8

125563C2

ARM ASSY.

ARM ASSY, wheel

2шт.

9

462997R1

WASHER

wear

4шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

10

481344R91

WHEEL

14 in., high floatation tire 9.5L x 14

2шт.

810768C1

VALVE

steel

2шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

conical

12шт.

12

100054C1

PIN

2 for units H, K, L, N, P, Q, U, V and Z

1шт.

12

1250685C1

PIN

2 for unit J

1шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

13

491601R2

PIN

pivot lock

2шт.

14

149556C2

BRACKET

ASSY, assist wheel pivot, 2 for units H, K, L, N, P, Q, U and V

1шт.

15

58152C1

BOLT

U-BOLT, units H, P, Q, N, U and V

1шт.

15

541645R1

U-BOLT,U, 1" - 8 x 7.14"

4 for units K and L

1шт.

21929R1

NUT,1"-8, G8

1 type 8

1шт.

16

125706C1

BAR

filler, 4 for units H, P and Q

1шт.

17

125515C1

SUPPORT

tool bar, units H, P and Q

2шт.

20932R1

BOLT,Hex, 1" - 8 x 10", Gr 5

1 x 10

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

21929R1

NUT,1"-8, G8

1 type 8

4шт.

18

1250803C2

CLAMP

seed tube, 2 for unit J

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

19

149564C2

SUPPORT

cylinder anchor, 2 for unit J

1шт.

25700R1

BOLT,Hex, 3/4" - 10 x 7", Gr 8

3/4 x 7 PHC type 8

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

20

1264315C1

BAR

tube support, 2 for unit J

1шт.

21

1277622C91

TUBE

W/PRODUCT GRAPHIC, assist wheels, 2 for units U, V and Z

1шт.

1264465C1

PRODUCT GRAPHIC

caution

1шт.
