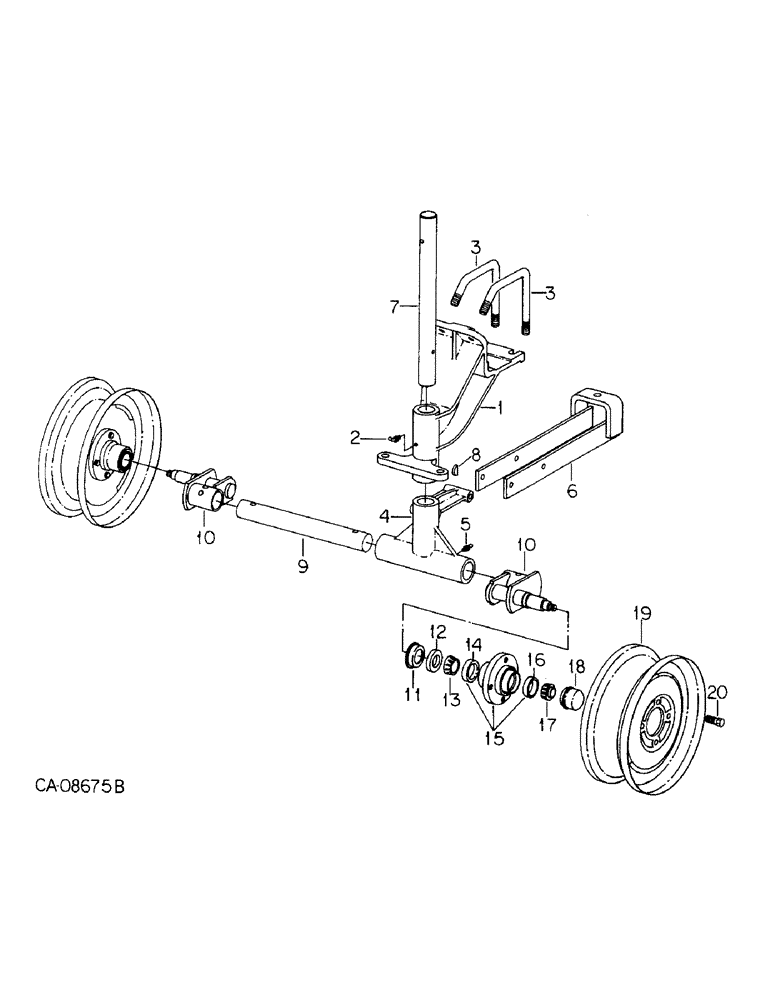

Запчасти Case IH 800 (05-20) - WHEELS, OUTBOARD WHEELS, LH SIDE, UNITS W, X AND Y (06) - POWER TRAIN

1

1250861C2

SUPPORT

wheel pivot

1шт.

2

16964R91

FITTING

1/4 90D lub

1шт.

3

1268102C1

CLAMP,7/8" - 9 x 235mm

wheel support clamp

2шт.

25549R1

WASHER,15/16" x 1 3/4" x .219", HDN

.938 x 1.750 x .219 PHC hdn

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

4

1250866C3

BRACKET

axle support

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

2шт.

6

1250865C2

BRACKET

ASSY, cylinder anchor

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

2шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

2шт.

7

1250867C2

SHAFT

pivot

1шт.

8

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

9

1250869C1

ROD

SHAFT, axle

1шт.

10

1279775C1

SPINDLE

ASSY, outboard left

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

2шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4 PHC p/t lock type 5

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

2шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

11

654674R91

OIL SEAL

wheel hub oil

2шт.

12

654675R1

RING

wheel bearing

2шт.

13

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

2шт.

14

663558R1

BEARING CUP

BEARING, inner cup

2шт.

15

465496R11

HUB

ASSY, 6 bolt wheel

2шт.

16

651817R1

BEARING CUP

BEARING, outer cup

2шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

18

663906R1

CAP

hub

2шт.

19

481344R91

WHEEL

14 in. x 8 KB 6 bolt, for 9.5L-14 tire

2шт.

810768C1

VALVE

steel

2шт.

20

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1-1/2 conical head

12шт.
