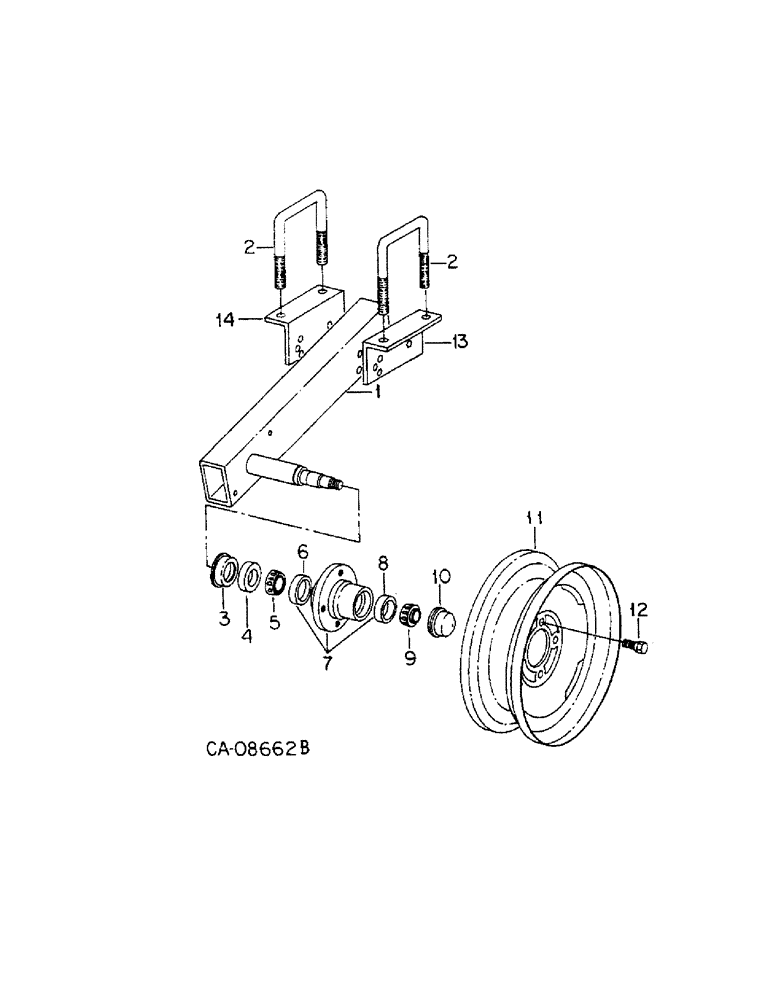

Запчасти Case IH 800 (05-19) - WHEELS, INBOARD WHEELS, UNITS W, X AND Y, FENDER ATTACHMENT, (06) - POWER TRAIN

1

1279693C1

SPINDLE

ASSY, inboard RH, replaces 141538C2

1шт.

1

1279692C1

SPINDLE

ASSY, inboard LH, replaces 141537C2

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

2шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

2

493841R1

U-BOLT

7/8

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

3

654674R91

OIL SEAL

wheel hub oil

2шт.

4

654675R1

RING

wheel bearing

2шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

2шт.

6

663558R1

BEARING CUP

BEARING, inner cup

2шт.

7

465496R11

HUB

ASSY, 6 bolt wheel

2шт.

8

651817R1

BEARING CUP

BEARING, outer cup

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

2шт.

10

663906R1

CAP

hub

2шт.

11

481344R91

WHEEL

14 in. x 8 KB 6 bolt, for 9.5 L-14 tire

2шт.

810768C1

VALVE

steel

2шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1-1/2 conical head

12шт.

13

1279759C1

ANGLE

axle mounting RH

2шт.

14

1279696C1

ANGLE

axle mounting LH

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
