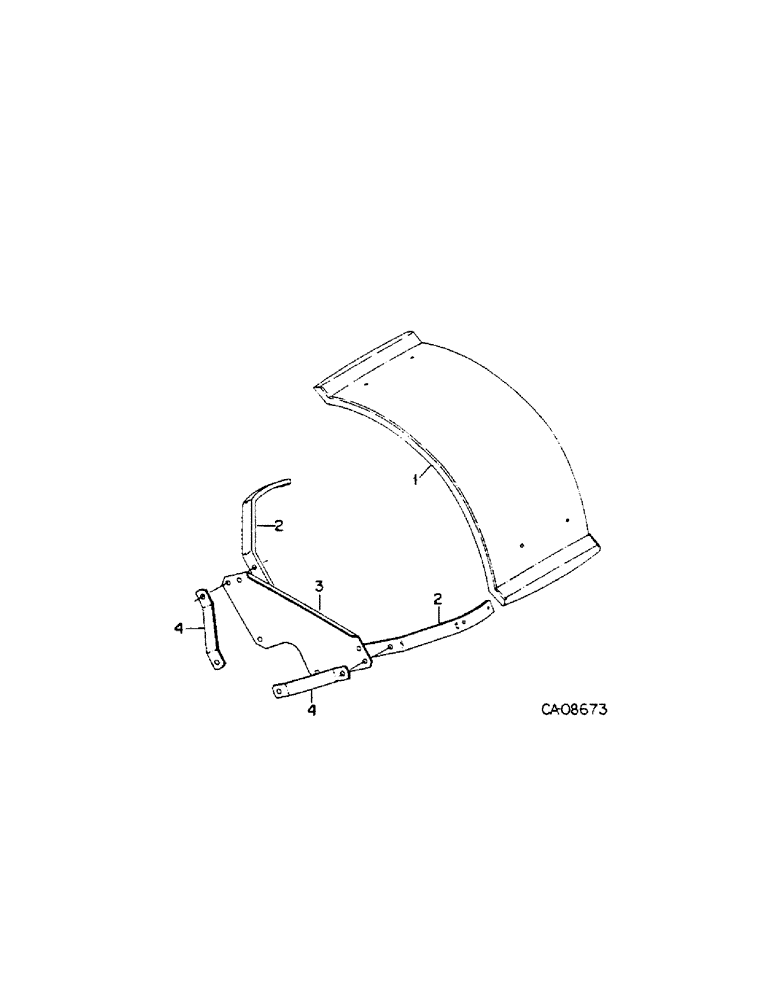

Запчасти Case IH 800 (05-19[1]) - FENDER ATTACHMENT, INBOARD WHEELS UNITS W, X AND Y (06) - POWER TRAIN

1

3142282R2

FENDER ASSY.

FENDER, rubber

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

8шт.

20893R1

WASHER

.344 x 1.000 x .105

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

2

1279128C2

BAR

fender support

4шт.

3

1279129C2

PLATE

spreader

2шт.

4

1279104C1

BAR

support

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

8шт.
