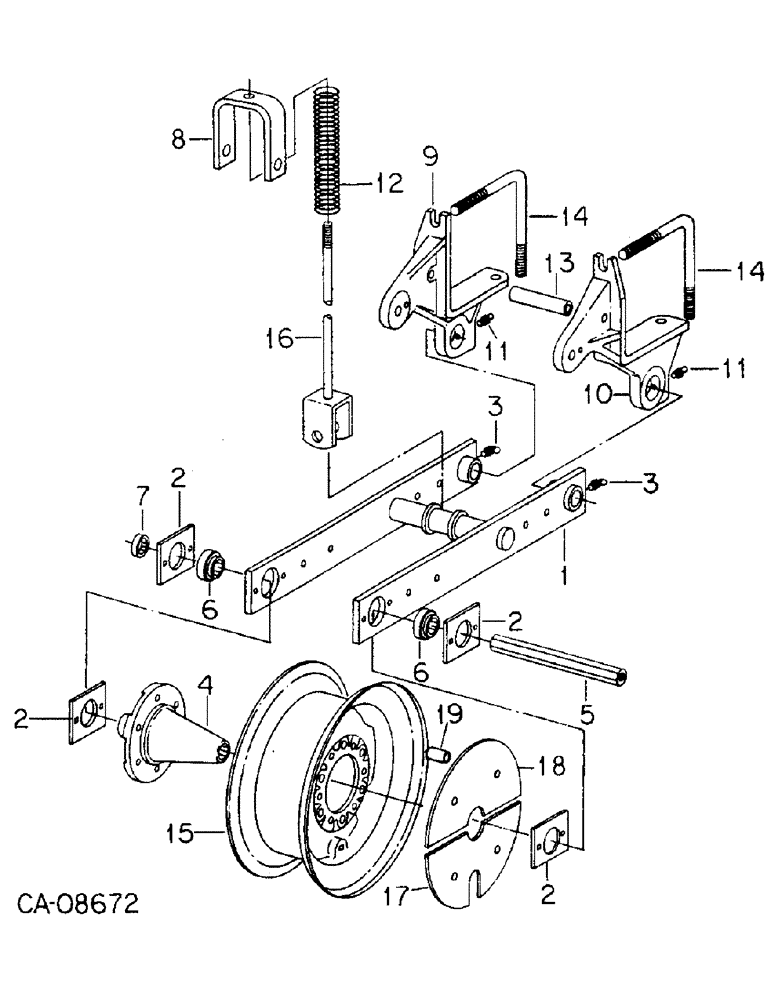

Запчасти Case IH 800 (05-18) - WHEELS, CARRYING DRIVE WHEELS, UNITS W, X AND Y (06) - POWER TRAIN

1

1279785C1

RAIL ASSY.

RAIL ASSY, wheel, replaces 134317C2 by also ordering two washers, 1279743C1

2шт.

1279743C1

WASHER

WASHER, wheel rail, 2.09 x 2.36 x .062

4шт.

2

1250724C1

BAR

BRACKET, bearing

8шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

4шт.

4

141006C2

HUB

wheel

2шт.

5

134361C5

BAR

axle wheel

2шт.

478258R1

WASHER

1.156 x 1.750 x .105

2шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING, ball

4шт.

7

1277980C1

SPACER

sprocket

2шт.

1277949C1

SPACER

axle

2шт.

8

1268258C1

BAR

spring guide

2шт.

9

149548C2

BRACKET

wheel cylinder left

2шт.

10

149549C2

BRACKET

wheel cylinder right

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

4шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

4шт.

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

7/8 x .625 tube

4шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

4шт.

12

141673C2

SPRING

drive wheel

2шт.

13

140992C1

SPACER

wheel bracket tie

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/2 type 5

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

2шт.

14

141025C2

BOLT

ROD, L-bolt 3/4 in.

4шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn

4шт.

280954

NUT,3/4"-10, G5

8шт.

15

622192R91

WHEEL

ASSY, 15 in., for 7.60 x 15 tire

2шт.

810769C1

VALVE

steel

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical head

12шт.

16

1268255C1

ARM ASSY.

ARM ASSY, spring

2шт.

22244R1

LOCK NUT

3/4 p/t lock type 5

2шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

2шт.

22095R1

PIN

3/4 x 3. hd type 5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

17

1264480C1

COVER

wheel, w/valve opening, one per wheel

1шт.

18

1264483C1

COVER

wheel, without valve opening, three per wheel

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5, 4 per wheel

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 4 per wheel

1шт.

19

1264481C1

SPACER,1/2" Pipe x 2.441"

wheel cover, 8 per wheel

1шт.
