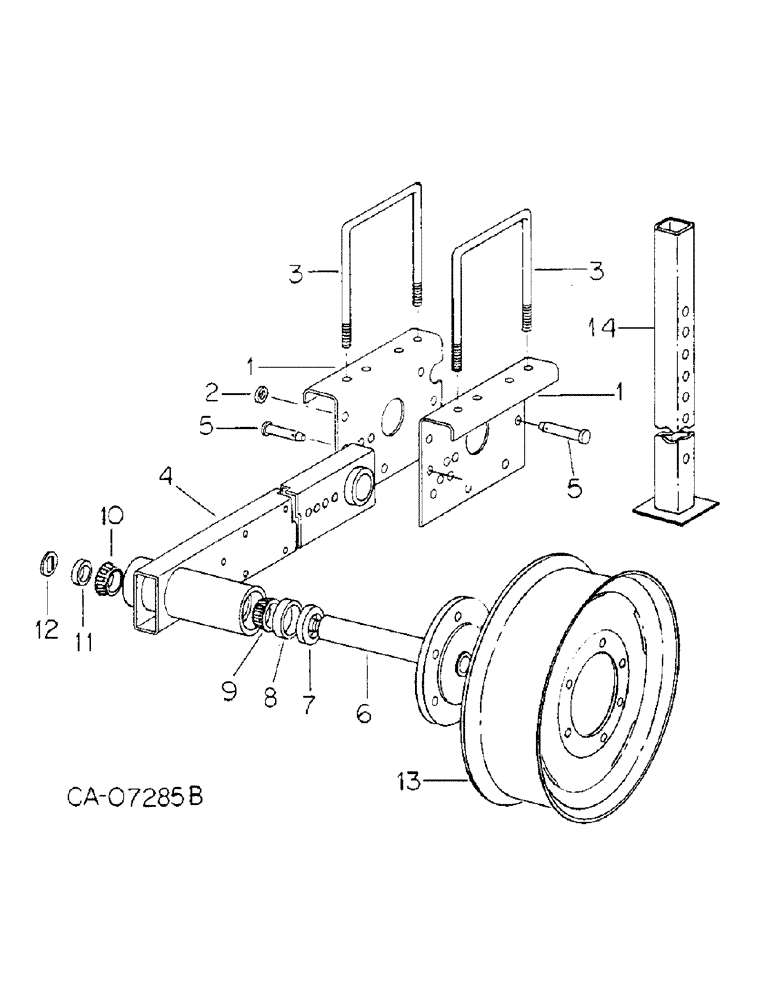

Запчасти Case IH 800 (05-17) - WHEELS, CARRYING WHEELS, UNITS H, J, K, L, N, P, Q, R, U, V, Z, AA AND AB (06) - POWER TRAIN

1

134125C3

SUPPORT

drive wheel mount LH, 2 for units J, K, L, N, Q, U, V, Z, AA and AB, 4 for units H and P

1шт.

1

134126C3

SUPPORT

drive wheel mount RH, 2 for units J, K, L, N, Q, U, V, Z, AA and AB, 4 for units H and P

1шт.

1

1277788C2

SUPPORT

W/GUSSET ASSY, drive wheel mount LH, 2 for units J, Q and R

1шт.

1

1277789C2

SUPPORT

W/GUSSET ASSY, drive wheel mount RH, 2 for units J, Q and R

1шт.

2

23885K

SPACER,3/4" Tube x 2 1/16"

drive wheel support

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

3

1279517C1

U-BOLT,3/4" - 10 x 6.95" W x 8.19" L

units H, J, P, Q, R, U, V and Z

1шт.

3

1279518C1

U-BOLT,3/4" - 10 x 4.96" W x 8.19" L

units K, L, N, AA and AB

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

134112C3

TUBE

ASSY, drive wheel LH, note C

1шт.

4

137230C3

TUBE

ASSY, drive wheel RH, note C

1шт.

4

1264320C3

TUBE,541 mm Length

ASSY, drive wheel, note D

2шт.

BEARING THAT IS USED IN REF # 4 IS 134181C92 TS 5-19

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

1264320C3

TUBE,541 mm Length

ASSY, wheel, for outer wings only, units H, J, P and Q

2шт.

5

145011C1

PIN

5/8 pointed, note A

4шт.

520175R1

CLIP

PIN, quick attachable cot.

4шт.

6

134117C3

SHAFT

ASSY, drive wheel

1шт.

7

137231C1

SEAL

drive wheel shaft

1шт.

8

50213V

BEARING CUP

BEARING, drive wheel inner cup

1шт.

9

482363C91

BEARING ASSY,31.75mm ID x 25.4mm W

drive wheel inner cone, note A

1шт.

9

1264322C91

ROLLER BEARING

BEARING, drive wheel inner cone, note B

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

drive wheel shaft outer, note A

1шт.

10

1264321C91

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

BEARING, drive wheel shaft outer, note B

1шт.

11

134120C3

SPACER

1шт.

21753R1

WASHER

.781 x 1.500 x .054 znd

1шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 slt type 5

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

12

141271C1

WASHER

slotted, units H, J, P & Q

1шт.

13

481344R91

WHEEL

planter drive, 14 x 8 KB rim for 9.5L-14 tire, high floatation

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel, 6 per wheel

1шт.

810768C1

VALVE

steel, one per wheel

1шт.

14

134121C1

SUPPORT TUBE

TUBE ASSY, parking, 2 for units K, L, N, P, AA and AB

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 hd type 1

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.
