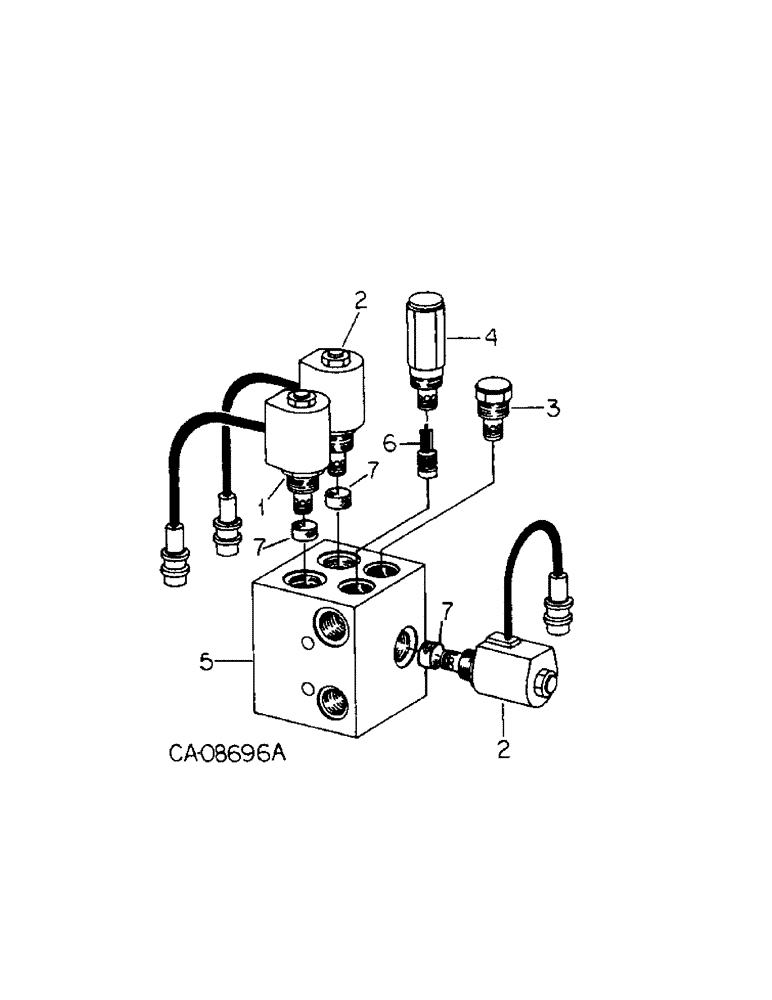

Запчасти Case IH 800 (05-16[1]) - WHEELS, RIGHT WING HOLDING VALVE UNITS W, X AND Y (06) - POWER TRAIN

1

149944C91

VALVE

ASSY, poppet solenoid

1шт.

2

149989C91

VALVE

ASSY, spool solenoid

2шт.

3

149938C1

CHECK VALVE,7/8" - 14

VALVE ASSY, check

1шт.

4

149939C2

VALVE

ASSY, relief

1шт.

5

1260961C1

BODY

right hand

1шт.

6

1260962C2

PISTON

pilot

1шт.

7

1285892C1

FILTER SCREEN

SCREEN, filter

3шт.

149941C1

PACKAGE

KIT, piston seal, consists of O-ring (NSS), (2) washer, back-up (NSS)

1шт.

149942C1

SEAL KIT

KIT, poppet valve seal, consists of O-ring (NSS), O-ring (NSS), washer, back-up (NSS)

3шт.

1272308C1

SEAL KIT

KIT, spool valve seal, consists of O-ring (NSS), O-ring (NSS), washer, back-up (NSS)

2шт.
