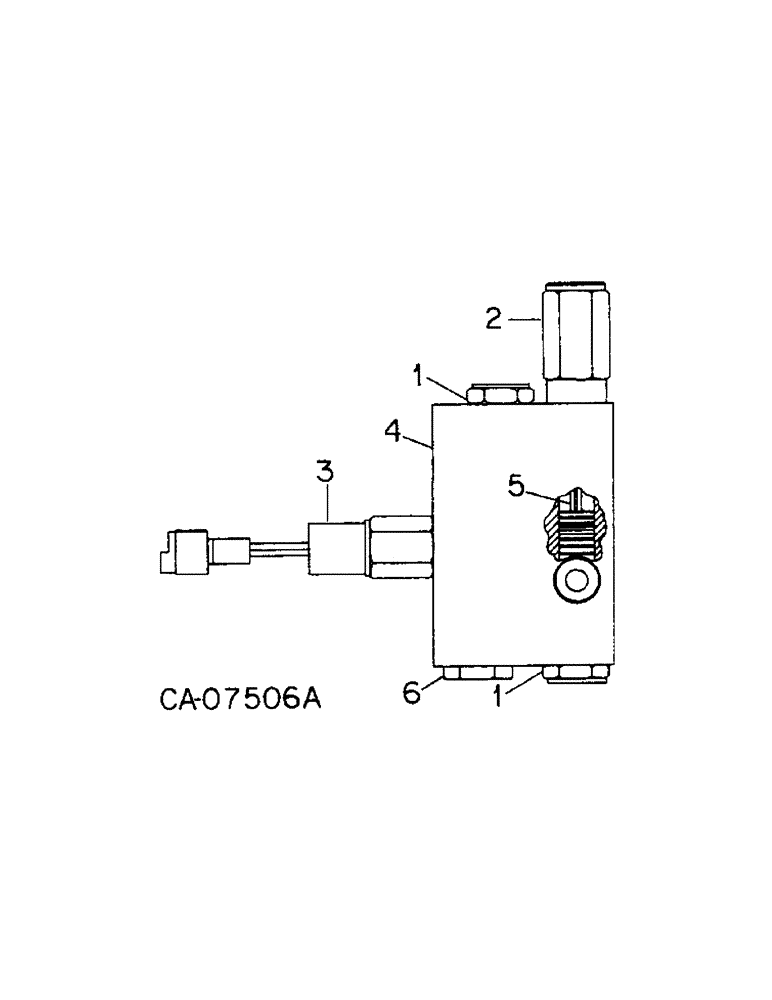

Запчасти Case IH 800 (05-15) - WHEELS, LEFT HOLDING VALVE, UNITS C, D, E, M, S AND T (06) - POWER TRAIN

149739C93

VALVE

ASSY, left holding, consists of

1шт.

1

149938C1

CHECK VALVE,7/8" - 14

VALVE ASSY, check

2шт.

2

149939C2

VALVE

ASSY, relief

1шт.

3

142526C3

SWITCH

pressure

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

4

149937C1

BODY

left holding

1шт.

5

149940C1

PISTON

pilot

1шт.

6

9410360

PLUG

5/8 C-Z str thd O-ring boss

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

149941C1

PACKAGE

KIT, piston seal, consists of O-ring (NSS), (2) washer, backup (NSS)

1шт.

149942C1

SEAL KIT

KIT, valve seal, consists of O-ring (NSS), O-ring (NSS), washer, back-up (NSS)

3шт.
