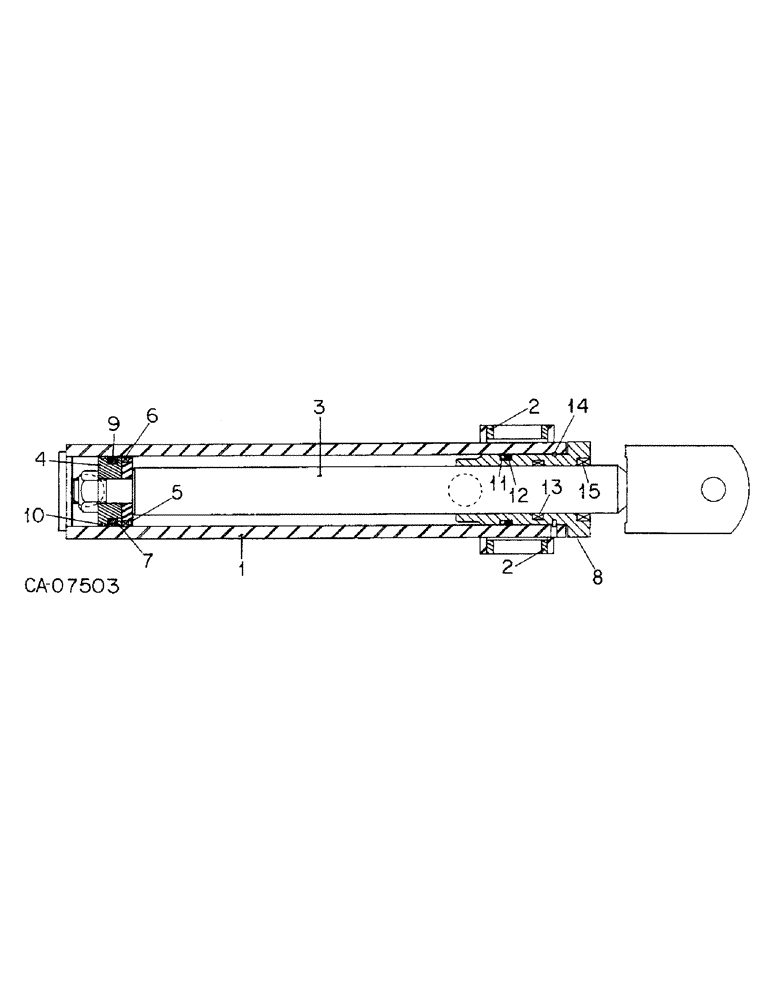

Запчасти Case IH 800 (05-14) - WHEELS, HYDRAULIC CYLINDER, UNITS C, D, E, M, S AND T (06) - POWER TRAIN

145283C92

CYLINDER

ASSY, 2-1/4 x 10 double acting

1шт.

1

140621C91

BODY

ASSY

1шт.

2

224565C1

BUSHING

trunnion

2шт.

3

140624C2

ROD

ASSY, piston

1шт.

9412368

NUT

3/4-NF PHC p/t lock type 8

1шт.

4

142795C1

PISTON

1шт.

5

142716C1

WASHER

piston

1шт.

6

SEAL (NSS), piston, order kit, 224322C1

1шт.

7

RING (NSS), inner, order kit, 224322C1

1шт.

8

140626C1

HEAD

front

1шт.

9

RING (NSS), outer seal, order kit, 224322C1

1шт.

10

RING (NSS), piston seal, order kit, 224322C1

1шт.

11

O-RING (NSS), 1-7/8 x 2-1/4 x 3/16, order kit, 224322C1

1шт.

12

WASHER (NSS), front hd O-ring back up, order kit, 224322C1

1шт.

13

SEAL (NSS), piston rod, order kit, 224322C1

1шт.

14

WIRE (NSS), front hd retaining, order kit, 224322C1

1шт.

15

SEAL (NSS), rod wiper, order kit, 224322C1

1шт.

224322C1

SEAL KIT

hydraulic cylinder seal, consists of ref nos. 6, 7 and 9 through 15

1шт.

224322c1, kit...consists of:

1шт.

28185r1, ring>>>subs to>>>239-5327

1шт.

142718c1, ring

1шт.

127932c1, ring

1шт.

142717c1, seal

1шт.

702283r1, o-ring>>>subs to>>>238-5328

1шт.

127933c1, washer

1шт.

119203c1, seal

1шт.

127922c2, wire>>>cut from>>>140600c1

1шт.

403460r1, rod wiper

1шт.

all are good numbers

1шт.
