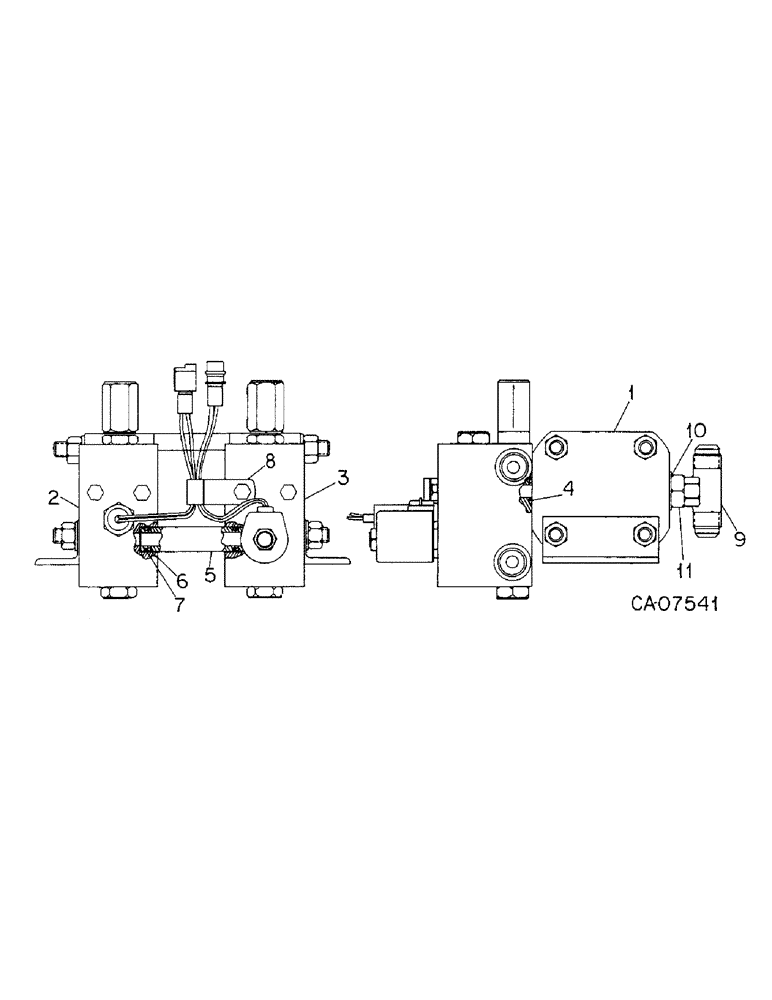

Запчасти Case IH 800 (05-12) - WHEELS, LEVEL LIFT VALVE, UNITS C, D, E, M, S AND T (06) - POWER TRAIN

VALVE ASSY, level lift service parts are

1шт.

1

142843C93

VALVE

flow divider, consists of ref no. 11 and kit

1шт.

2

149739C93

VALVE

ASSY, left holding, for components see list of parts under details of left holding valve

1шт.

9410360

PLUG

5/8 C-Z str thd O-ring boss

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

3

149740C91

VALVE

ASSY, right holding, for components see list of parts under details of right holding valve

1шт.

4

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 class 6

2шт.

5

142822C1

TUBE,19.05 mm OD, 83 mm Length

junction

1шт.

6

544795R1

WASHER

RING, back up

2шт.

7

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

2шт.

8

384554R1

CLIP

1шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16 x 3-1/2 type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

9

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

11

149932C1

VALVE

ASSY, relief

2шт.

24496R1

O-RING,-041, 70 Duro, 2.989" ID x .070" Thk

3 x 3-1/8 class 5

2шт.

149942C1

SEAL KIT

KIT, relief valve seal, consists of O-ring (NSS), O-ring (NSS), back-up washer (NSS)

2шт.
