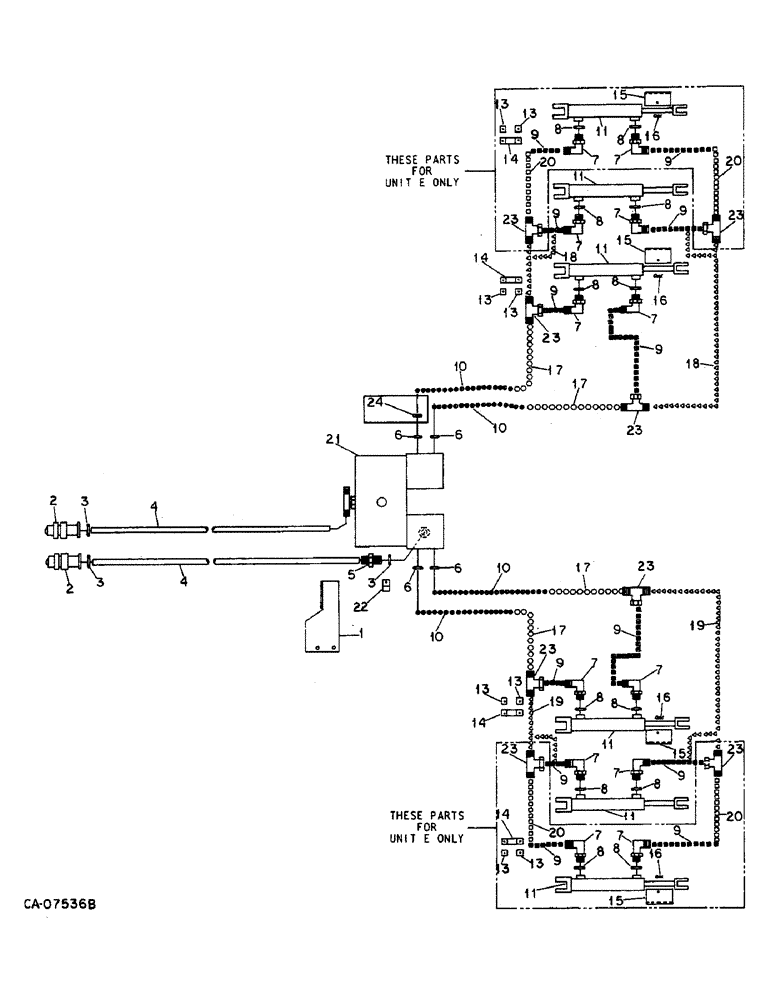

Запчасти Case IH 800 (05-06) - WHEELS, HYDRAULIC CYLINDERS AND VALVE CONNECTIONS FOR CARRYING WHEELS UNITS C, D, E, M, S AND T (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
144903C3
BRACKET
valve support LH, unit E, M and T
1шт.
1
144904C3
BRACKET
valve support RH, units E, M and T
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2 x 1-1/2 type 1
6шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
6шт.
1
141772C1
BAR, valve mtg plate, note A, unit C and D
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
2шт.
2
544787R91
COUPLING, BREAK AWAY
COUPLER, quick attachable male, IH
2шт.
3
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
2шт.
4
119874C1
HOSE ASSY.
HOSE, 180 in., 2 for units C, D, M and S
1шт.
4
1264452C1
HOSE
196 in., 2 for units E and T
1шт.
5
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 5/8 C-Z hyd fld short swivel
1шт.
7
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
3/8 C-Z hydr fld adj 90D
1шт.
8
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6
1шт.
9
137175C1
HOSE,9.52 mm ID x 813.00 mm
32 in., note A
1шт.
9
1264128C1
HOSE
22 in., note B
1шт.
10
137094C1
HOSE, 32 in., order 42 in. hose, 1264122C1 for units C and M, 54 in. hose, 1264120C1 for unit D, 82 in. hose, 1264125C1 for unit E, note A
4шт.
10
1264122C1
HOSE,12.70 mm ID x 1093.00 mm, SAE 100R1AT
100R7,100R1A, Valve to Tee, Note B, Units C and M 12.70 mm ID x 1093.00 mm, SAE 100R1AT
4шт.
10
1264120C1
HOSE
54 in. valve to tee, note B, units D and S
4шт.
10
1264125C1
HOSE ASSY.
HOSE, 82 in. valve to tee, note B, units E and T
4шт.
11
145283C92
CYLINDER
ASSY, 2-1/4 x 10 D.A., for components see list of parts under details of hyd cylinder
1шт.
21675R1
PIN
3/4 x 3.250 hd type 5
1шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
1шт.
12
Not used this application
1шт.
13
200536C1
BUSHING, hyd rubber, note A
1шт.
14
673385R1
CLAMP
hyd line, note A
1шт.
937875R1
SCREW,Serr, 1/4" - 20
no. 1/4 x 3/4 t/hds
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
15
1261241C91
STOP
BRACKET W/PRODUCT GRAPHIC, 1254230C1, cylinder stop, replaces 147235C2
1шт.
22752R1
SPLIT PIN/SAFETY PIN
PIN, 3/8 x 2.250 hd type 1
1шт.
16
610784R1
SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL
PIN, quick attachable cot, note A
1шт.
16
544063R1
HAIR PIN COTTER
PIN, quick attachable cot, note B
1шт.
17
147253C1
TUBE ASSY, hyd, 4 for units C and M, order hose, 1264122C1, note A
1шт.
17
147255C1
TUBE ASSY, hyd, 4 for unit D, order hose, 1264120C1, note A
1шт.
17
147258C1
TUBE ASSY, hyd, 4 for unit E, order hose, 1264125C1, note A
1шт.
18
147254C1
TUBE ASSY, hyd RH, note A, units C and M
2шт.
18
147256C1
TUBE ASSY, hyd RH, note A, unit D
2шт.
18
147252C1
TUBE ASSY, hyd, note A, unit E
2шт.
19
1250780C1
TUBE ASSY, hyd LH, note A
2шт.
19
1264123C1
HOSE
72 in., note B, units C and M
4шт.
19
1250781C1
TUBE ASSY, hyd LH, note A
2шт.
19
1264124C1
HOSE
88 in. note B, unit D
4шт.
19
147252C1
TUBE ASSY, hyd, note A
2шт.
19
144822C1
HOSE
47 in., note B, units E and T, replaces 1264127C1
4шт.
19
1267995C1
HOSE
50 in., 4 for unit S
1шт.
20
147257C1
TUBE ASSY, hyd, note A
4шт.
20
813610C1
HOSE
50 in., note B, units E and T, replaces 1264126C1
4шт.
21
VALVE ASSY, level lift, for components see list of parts under details of level lift valve
1шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
4шт.
22
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP
3шт.
23
9410307
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br
1/2 C-Z hyd fld tube swivel, note A
1шт.
23
9402982
TEE,3/4"-16, 37 Degree
1/2 C-Z hyd flared three way, note B
1шт.
24
937201R1
PLUG
PLATE, orifice, note A, use orifice plate with flow divider valve when units C and M are applied
1шт.
306132C1
CABLE TIE,14.5" L
STRAP, 14 inch tie
7шт.
Выбрано товаров: 57
