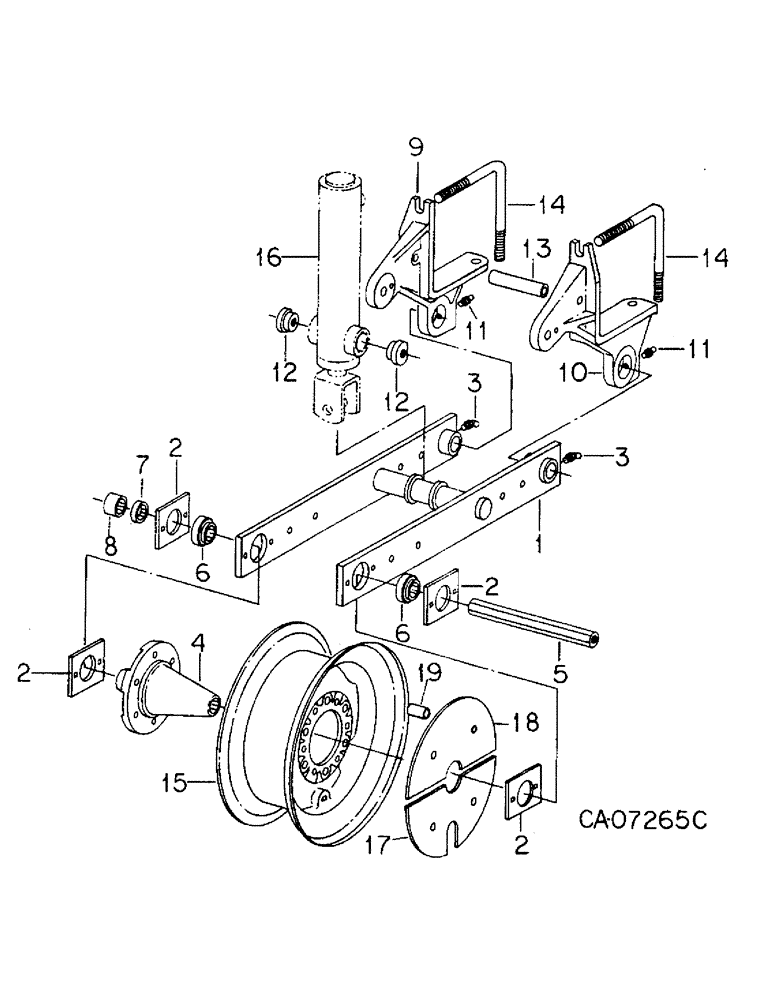

Запчасти Case IH 800 (05-02) - WHEELS, CARRYING WHEELS, UNITS A THRU G, M, S AND T (06) - POWER TRAIN

1

1279785C1

RAIL ASSY.

RAIL ASSY, wheel, replaces 134317C2 by also ordering two washers, 1279743C1

1шт.

1279743C1

WASHER

WASHER, wheel rail, 2 per rail assy, 2.09 x 2.36 x .062

1шт.

2

1250724C1

BAR

BRACKET, bearing

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange

1шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

1шт.

4

141006C2

HUB

wheel

1шт.

5

134361C5

BAR

axle wheel

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 type 5

1шт.

6

1277982C91

KIT

PACKAGE, bearing service, note A, consists of bearing, 203389C91 and two spacers 1277981C1 (NSS)

1шт.

6

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING, ball, note B

1шт.

7

141018C4

SPACER

sprocket, note A

1шт.

7

1277980C1

SPACER

sprocket, note B

1шт.

1277949C1

SPACER

axle, note B

1шт.

8

149356C2

SPACER

1шт.

9

149548C2

BRACKET

wheel cyl left

1шт.

10

149549C2

BRACKET

wheel cyl right

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

12

531237R1

CAP

trunnion, units B to G, M, S

1шт.

12

1267173C1

CAP

trunnion, 2 for unit A, part of cylinder, 1263488C92

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

5/16 x 1-1/4 PHC type 8, units A and F only

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

5/8-NF x 1-3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

140992C1

SPACER

wheel bracket tie

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/2 type 5

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

14

141025C2

BOLT

3/4 inch

1шт.

280954

NUT,3/4"-10, G5

1шт.

25548R1

WASHER

.812 x 1.500 x .219 PHD hdn

1шт.

15

622192R91

WHEEL

15 in.

1шт.

810769C1

VALVE

steel

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 conical head

1шт.

16

CYLINDER ASSY, hydraulic, refer to hydraulic cylinders and valve connections unit for details

1шт.

17

1264480C1

COVER

wheel, w/valve opening, one per wheel

1шт.

18

1264483C1

COVER

wheel, without valve opening, three per wheel

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5, 4 per wheel

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 4 per wheel

1шт.

19

1264481C1

SPACER,1/2" Pipe x 2.441"

cover, 8 per wheel

1шт.
