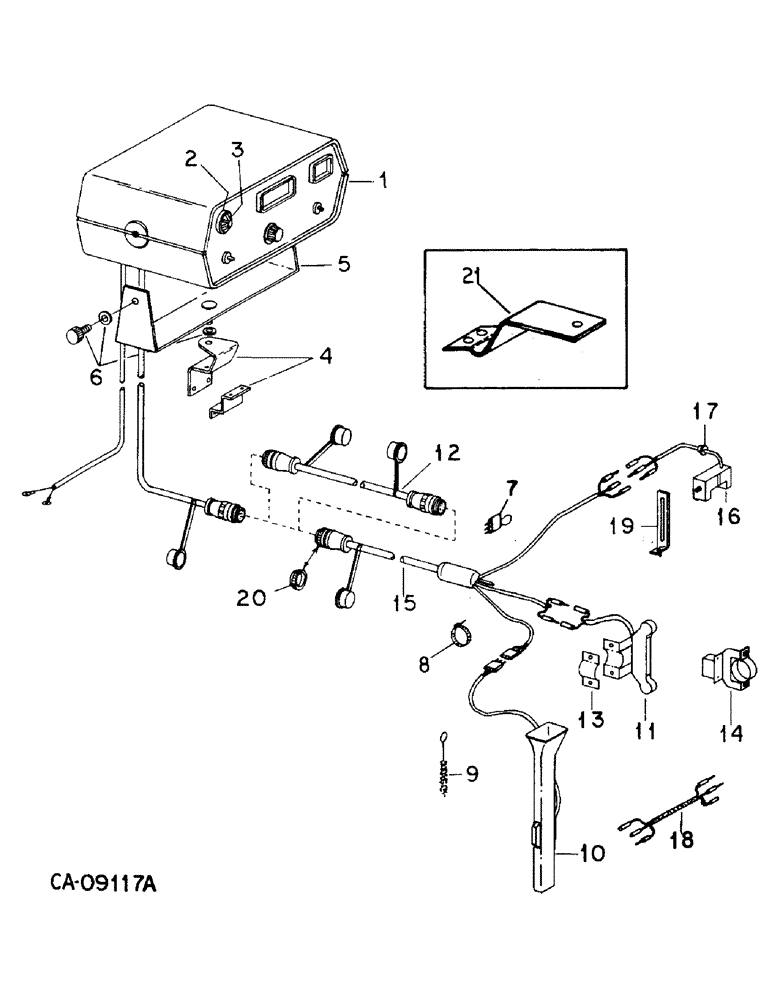

Запчасти Case IH 800 (12-16) - MONITORS, SEED COUNT III MONITORS, UNITS F, G, K, THRU Q, T, AA AND AB WITH SERIAL NO. 4201 & ABOVE (04) - ELECTRICAL SYSTEMS

1

245819C91

REMAN-ELECT MONITOR

CONSOLE, renewed, units F, G, K thru P, AA and AB

1шт.

1

245820C91

REMAN-ELECT MONITOR

CONSOLE, renewed, units Q and T

1шт.

106652

FUSE,3 Amp, Type 3AG

3AG 3 amperes

2шт.

2

128816C1

BUZZER

ALARM

1шт.

58554C1

BULB,C2F, #1892, 14V

LAMP, type C-2F trade #1892

1шт.

3

178876C1

SUPPRESSOR

DAMPER, alarm

1шт.

4

1261522C91

BRACKET, SUPPORTING

BRACKETS, cab mounting, consists of two unlike brackets

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

1261523C91

BRACKET

console

1шт.

6

1261524C91

REPAIR KIT

KNOB W/WASHERS PACKAGE, consists of two knobs and three washers

1шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

245617C1

CONNECTOR,ELECTRIC

CABLE, shorting plug

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP, 7 inch tie

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, 14 inch tie

1шт.

9

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

10

TUBE W/SENSOR, seed, refer to planter unit, plate in group 07

1шт.

11

245401C1

SWITCH

ASSY, plate

1шт.

12

133896C93

HARNESS

CABLE, extension, 15 ft, for use when planter is mounted behind other implements

1шт.

13

1264117C1

BUSHING

plate switch

1шт.

14

1264118C1

MAGNET

ASSY

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

4шт.

15

245398C1

HARNESS

wiring, units F and AA

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 phc type 5

1шт.

15

245399C1

HARNESS

wiring, units G, K and AB

1шт.

15

245400C1

HARNESS

wiring, units L thru P

1шт.

15

245616C1

HARNESS

wiring, units Q and T

1шт.

16

245608C1

GAUGE

SENSOR ASSY, hopper

1шт.

17

1279331C1

GROMMET

1шт.

18

245521C1

HARNESS

extension hopper, for plate planters only

1шт.

19

113432C1

BRACKET

hopper sensor

1шт.

120387

WASHER,3/8" x 3/4" x .060"

.375 x .750 x .054

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

20

149459C91

SEAL PACKAGE

COUPLING, breakaway ring, consists of ten coupling rings

1шт.

21

90905C1

SUPPORT

BRACKET, case monitor

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120376

NUT,5/16"-18, G5

2шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

1/4 x 2-3/4 type 5

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

2шт.

120396

WASHER

.531 x 1.062 x .074

2шт.
