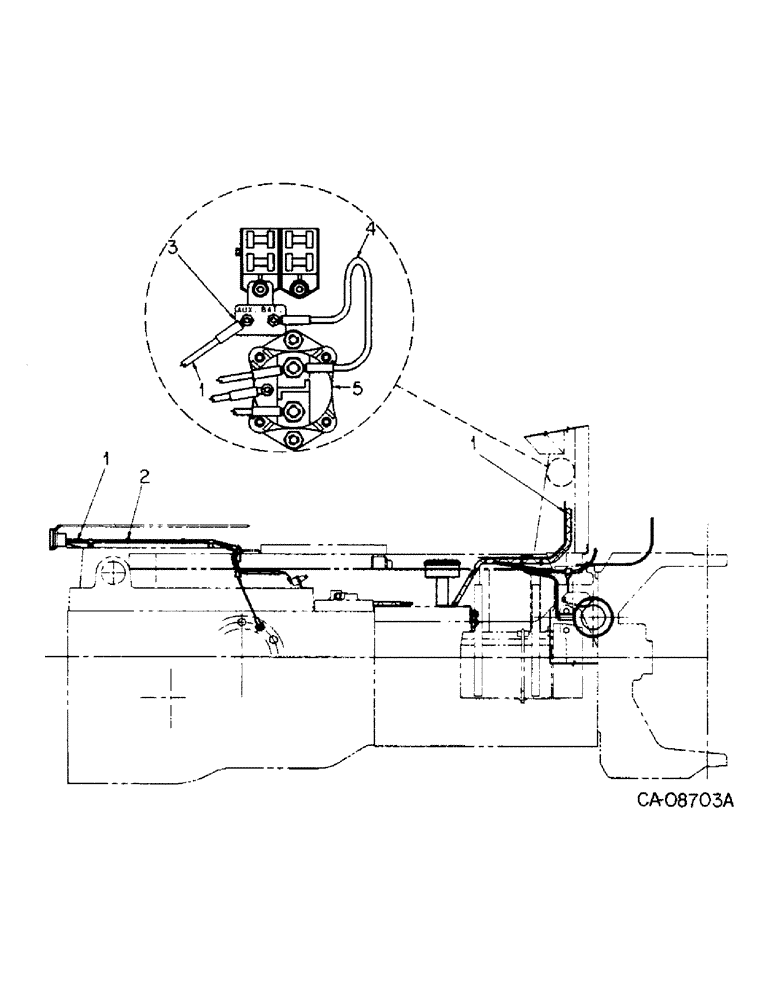

Запчасти Case IH 800 (02-06) - MISCELLANEOUS, TRACTOR WIRING, UNITS W, X AND Y (18) - MISCELLANEOUS

1

245836C1

CABLE

switched power

1шт.

2

533959R1

CABLE TIE,.135" x 11"

STRAP, 9.95 in. tie

12шт.

3

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit 30 ampere

1шт.

4

111322C1

CABLE

ASSY, solenoid switch to 30 Amp circuit breaker

1шт.

5

107655C1

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

143420C2

CABLE

ASSY, magnetic switch, key terminal

1шт.
