(02-04[1]) - MISCELLANEOUS, HARNESS CLAMP ATTACHMENT UNITS A THRU AB

Запчасти Case IH 800 (02-04[1]) - MISCELLANEOUS, HARNESS CLAMP ATTACHMENT UNITS A THRU AB (18) - MISCELLANEOUS

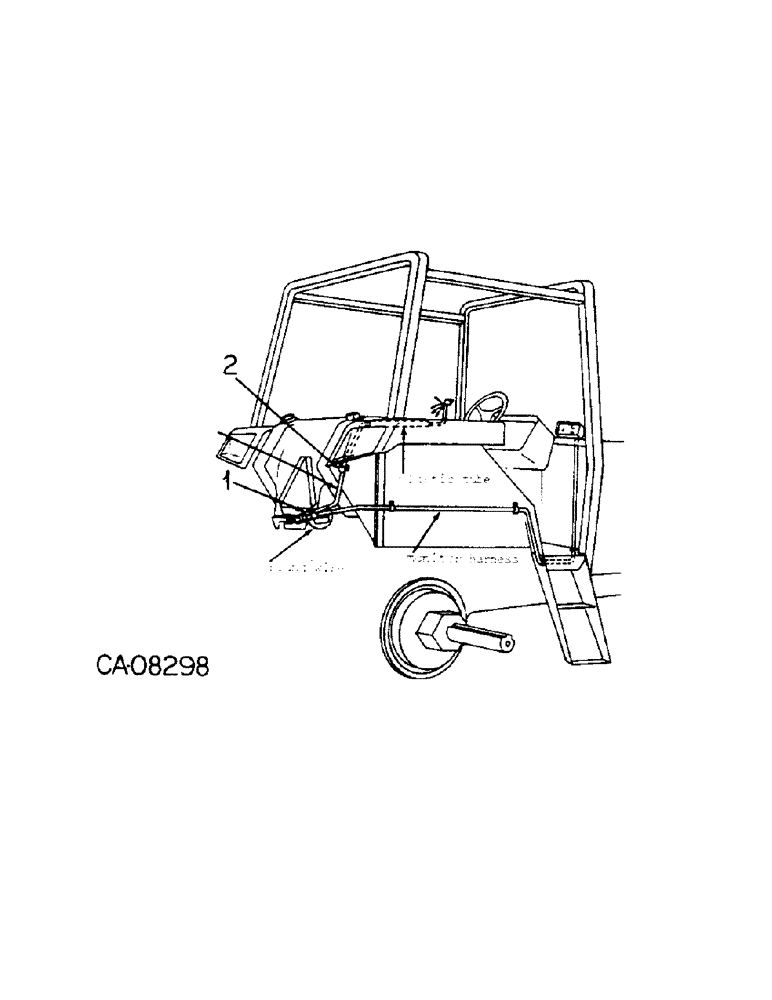

Схема запчастей Case IH 800 - (02-04[1]) - MISCELLANEOUS, HARNESS CLAMP ATTACHMENT UNITS A THRU AB (18) - MISCELLANEOUS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1268187C1

WIRE CLAMP

CLAMP, harness

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
