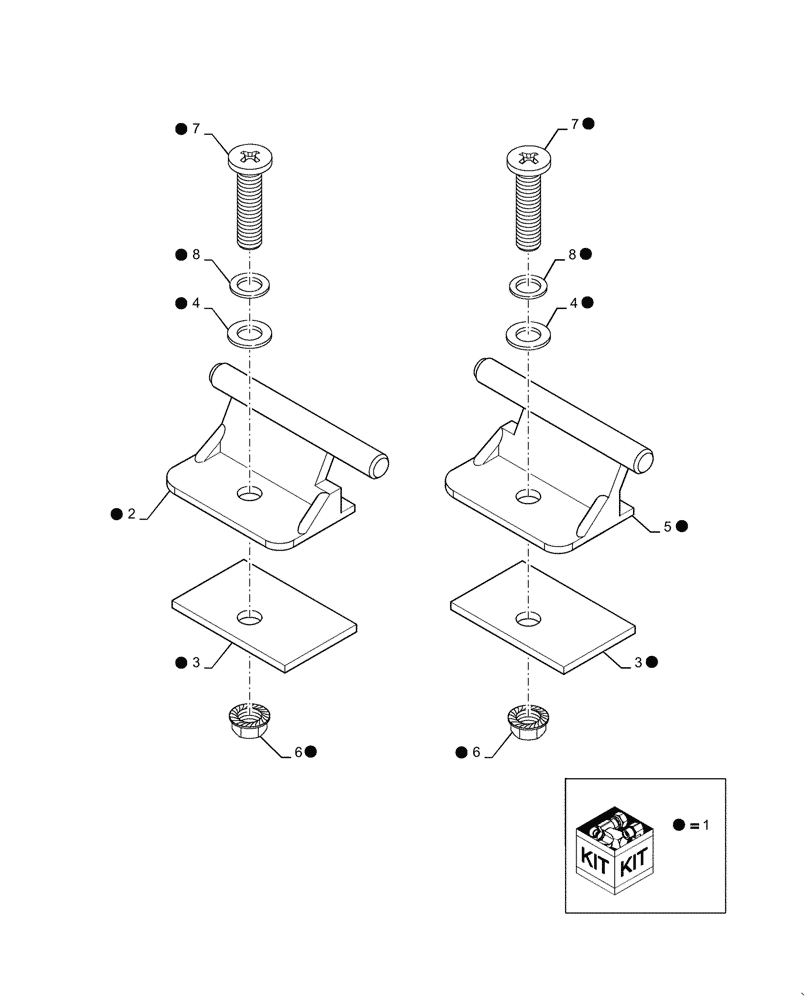

Запчасти Case IH 800 (13-16) - KIT HINGE CHEMICAL HOPPER (09) - CHASSIS/ATTACHMENTS

1

B94741

KIT

Incl 2 - 8

1шт.

2

1254172C2

HINGE

RIGHT

1шт.

3

1254428C1

PAD

2шт.

4

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

2шт.

5

141111C2

HINGE

LEFT

1шт.

6

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

2шт.

7

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

8

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.
