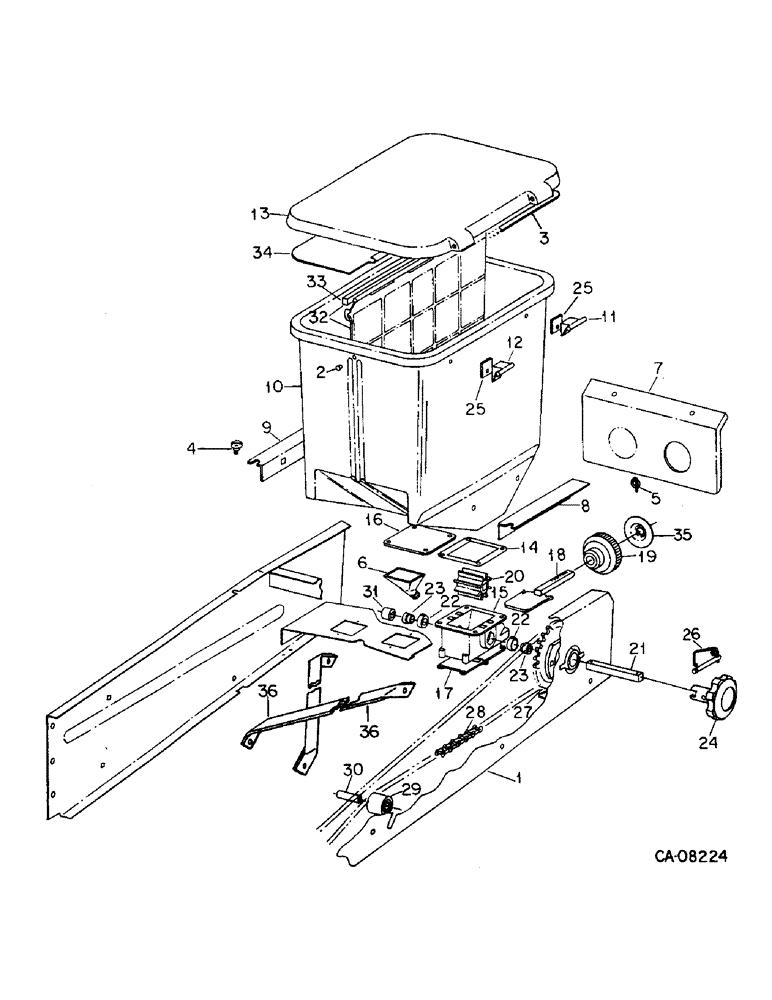

Запчасти Case IH 800 (13-12) - EARLY RISER PLATE PLANTER UNIT, GRANULAR CHEMICAL ATTACHMENT, QUANTITIES SHOWN ARE PER ROW (09) - CHASSIS/ATTACHMENTS

1

1264350C2

ASSEMBLY

PLATE ASSY, unit side

1шт.

2

1261242C2

PLUG

hopper hole

2шт.

3

SEAL, hopper, 55.59 in./1412mm long, make from 50 ft roll marked, 149577C2

1шт.

4

140996C1

BOLT,Pan Hd, 5/16" - 18 x 21mm, Full Thd

hopper support

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

479696R91

AXLE PIN

PIN, quick attachable snap

1шт.

6

137044C1

NECK FILLER

NECK, funnel

1шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap

2шт.

7

134353C1

SUPPORT

hopper

1шт.

134289C1

RUBBER WASHER

hopper bottom

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

8

134326C2

ANGLE

SUPPORT, hopper LH

1шт.

9

134327C2

ANGLE

SUPPORT, hopper RH

1шт.

134289C1

RUBBER WASHER

hopper

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

8шт.

20893R1

WASHER

.344 x 1.000 x .105

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

10

134251C1

HOPPER

1шт.

11

141111C2

HINGE

hopper lid left

1шт.

12

1254172C2

HINGE

hopper lid right

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 znp p/hds mach

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

13

134325C3

COVER

hopper lid

1шт.

14

134298C1

GASKET

hopper

2шт.

15

137043C1

HOUSING

upper

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

4шт.

21784R1

WASHER

.266 x .500 x .054

4шт.

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW, 1/4 x 3/4 h/whd tap

4шт.

16

137186C1

COVER

BAR, cover

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

4шт.

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW, 1/4 x 3/4 h/whd tap

4шт.

21784R1

WASHER

.266 x .500 x .054

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

17

137055C1

RETAINER

gauge control

1шт.

28290R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW, no. 10 x 5/8 p/hdcr tap

6шт.

395-31022

WASHER,#10

.203 x .469 x .036

7шт.

18

134286C1

GAUGE

GATE, rate control

1шт.

19

134287C1

KNOB

gauge

1шт.

20

134296C1

ROLL

feeding

1шт.

21

134254C1

BAR

1шт.

22920R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

134253C1

SQ HOLE WASHER

2шт.

SL718

WASHER

.891 x 1.250 x .033 pln

2шт.

22

134293C1

HOUSING

BUSHING, housing

2шт.

23

134297C1

BUSHING

drive shaft

2шт.

24

1264422C92

BUTTON

KNOB ASSY, granular chemical drive includes ref no. 26

1шт.

25

1254428C1

PAD

hopper lid hinge

2шт.

26

140933C2

PIN

quick release

1шт.

27

136947C91

SPROCKET ASSY.

SPROCKET ASSY, bearing 30T

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

28

CHAIN, drive, furnish 97 links from bulk roll marked 475879R91, 3 offset links 1308D and 1 connecting link 1306D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

1308D

CHAIN LINK

LINK, #41 single pitch offset

3шт.

29

141653C1

ROLLER

idler

1шт.

30

1268263C1

SPACER

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

21041R1

WASHER

.531 x 2.000 x .054

2шт.

598807R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT, 5/16 x 2 crg type 5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

134290C1

SPACER

COUPLING

1шт.

32

149576C3

DIVIDER

ASSY, chemical hopper includes ref nos. 33 and 34

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

no. 10 x 1/2 znp h/hd mach

2шт.

445135

NUT

10-24 r/p style I

2шт.

33

SEAL, hopper divider, 17.63 in./448mm, make from 50 ft roll marked, 149578C2

1шт.

34

LID, divider (NSS), order divider assy, 149576C3

1шт.

35

134294C1

DIAL

disk handle

1шт.

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10-16 x 3/8 PHC p/hdcr tap

2шт.

36

1277831C1

SUPPORT

frame

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.
