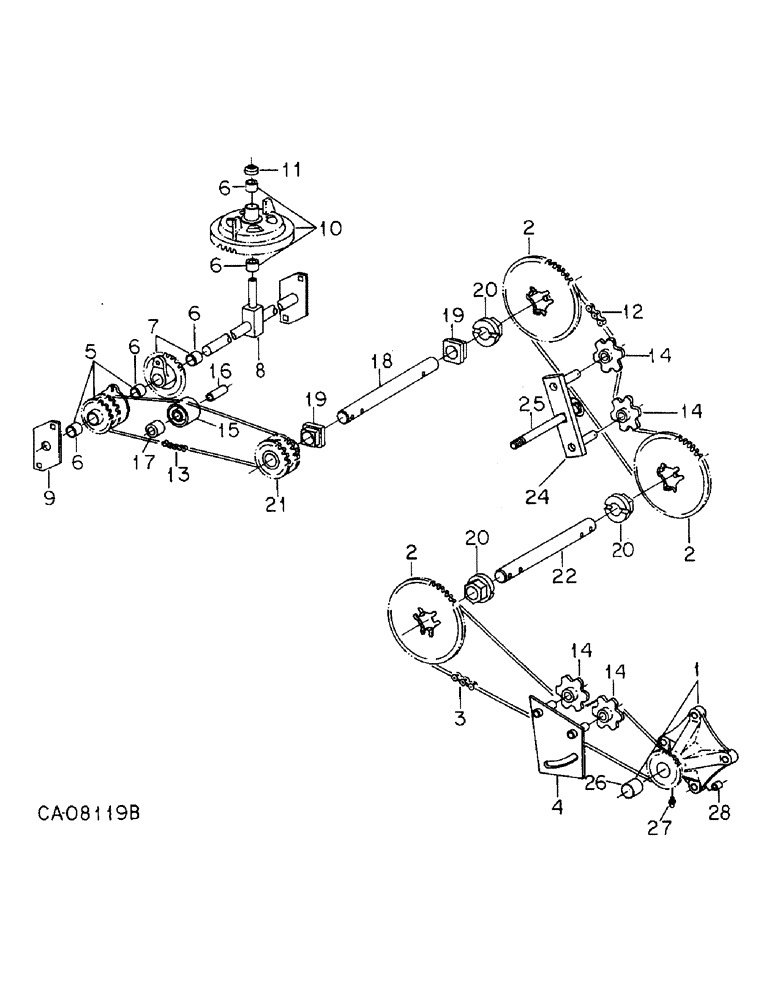

Запчасти Case IH 800 (13-09) - EARLY RISER PLATE PLANTER UNIT, PRESS WHEEL DRIVE AND CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

1277945C1

SPROCKET ASSY.

SPROCKET, press wheel drive, 7 teeth, order package, 1279254C91, replaces 14 tooth sprocket, 1254342C1, note A

1шт.

1277890C1

BOLT,Hex, 5/16" - 18 x 1 1/4", Type 5

special, note A

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, note A

4шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015, or as required, note A

2шт.

1

12793238C91

SPROCKET W/BUSHINGS, 62093C2, press wheel drive, 7 teeth, note B

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

2

134234C1

SPROCKET ASSY.

SPROCKET, 16T

1шт.

8 Effective Teeth

1шт.

2

134235C1

SPROCKET ASSY.

SPROCKET, 20T

1шт.

10 Effective Teeth

1шт.

2

134236C1

SPROCKET ASSY.

SPROCKET, 22T

1шт.

11 Effective Teeth

1шт.

2

134237C1

SPROCKET ASSY.

SPROCKET, 24T

1шт.

12 Effective Teeth

1шт.

2

134238C1

SPROCKET ASSY.

SPROCKET, 28T

1шт.

14 Effective Teeth

1шт.

2

134239C1

SPROCKET ASSY.

SPROCKET, 30T

1шт.

15 Effective Teeth

1шт.

2

134240C1

SPROCKET ASSY.

SPROCKET, 32T

1шт.

16 Effective Teeth

1шт.

2

134241C1

SPROCKET ASSY.

SPROCKET, 34T

1шт.

17 Effective Teeth

1шт.

2

134242C1

SPROCKET ASSY.

SPROCKET, 36T

1шт.

18 Effective Teeth

1шт.

3

CHAIN, plate drive press wheel, use 43 links from 10 ft roll marked 569088R91, 1 connecting link, 1277927C91 and 1 offset link 457114R91

1шт.

1277927C91

LINK

connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

1шт.

4

1254344C1

ARM

ASSY, tightener plate

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1279285C91

SPROCKET ASSY.

SPROCKET ASSY, 12T, includes ref. no. 6, replaces 140906C91

1шт.

6

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

fiber glide

5шт.

7

140907C1

GEAR

ASSY, seed hopper drive pinion, includes ref. no. 6

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

8

140785C1

SHAFT

ASSY, ring gear

1шт.

9

140788C1

PLATE ASSY.

PLATE

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

22258R1

WASHER

.656 x 1.000 x .027, or as required

4шт.

21796R1

WASHER

.656 x 1.000 x .054

4шт.

10

140927C2

GEAR

ASSY, ring, includes ref. no. 6

1шт.

11

136975C1

WASHER

bottom centering

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

12

CHAIN, jackshaft drive, use 39 links from 10 ft roll marked 569088R91, 1 roller link, 457112R91, 2 connecting links 1277927C91 & 2 offset links 457114R91

1шт.

1277927C91

LINK

connecting

2шт.

457112R91

CHAIN LINK

LINK, #2040 double pitch roller

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

1шт.

13

CHAIN, hopper drive, use 69 links from 10 ft roll marked 475879R91, 1 connecting link, 1306D and 3 offset links, 1308D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

1308D

CHAIN LINK

LINK, #41 single pitch offset

3шт.

14

472344R3

SPROCKET

idler 6T

4шт.

15

57796C1

ROLLER

chain tightener

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

16

134288C1

SPACER

roller

1шт.

17

1254347C1

SPACER

pivot

1шт.

120396

WASHER

.531 x 1.062 x .074

2шт.

21041R1

WASHER

.531 x 2.000 x .054

2шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21496R1

WASHER

.344 x .750 x .105

2шт.

18

1254322C1

PIN

jackshaft

1шт.

19

668999R1

BUSHING

BEARING, jackshaft

2шт.

20

547955R1

HUB

sprocket

3шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

3шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

3шт.

21212R1

WASHER

.906 x 2.000 x .105

3шт.

20703R1

WASHER

.906 x 1.750 x .054, or as required

2шт.

21

1254329C2

SPROCKET ASSY.

SPROCKET ASSY, drive

1шт.

22

1254323C1

PIN

press wheel drive & pivot shaft

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

4шт.

23

Not used this application

1шт.

24

90505C1

BAR

ASSY, chain idler, replaces 1268035C2 by also ordering bolt, 28658R1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

25

28658R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

BOLT, 1/2-13 x 5-1/2 zinc plated square neck carriage type 5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

484060R1

BUSHING

press wheel drive sprocket, used only w/sprocket, 1279238C91

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub, used only with sprocket, 1279238C91

1шт.

28

1277909C1

SPACER

.334 ID x .500 OD x .669 long, used only with sprocket, 1279238C91

4шт.

1279254C91

PACKAGE

press wheel drive sprocket, note A, consists of

1шт.

1279238C91

SPROCKET ASSY.

SPROCKET ASSY, 7T

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lub

1шт.

1277909C1

SPACER

.334 ID x .669 long

4шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

4шт.

18451R1

LOCK NUT,5/16"-18, GB

NUT, 5/16 pln p/t lock type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

1279043C1

SPACER

press wheel axle

1шт.
