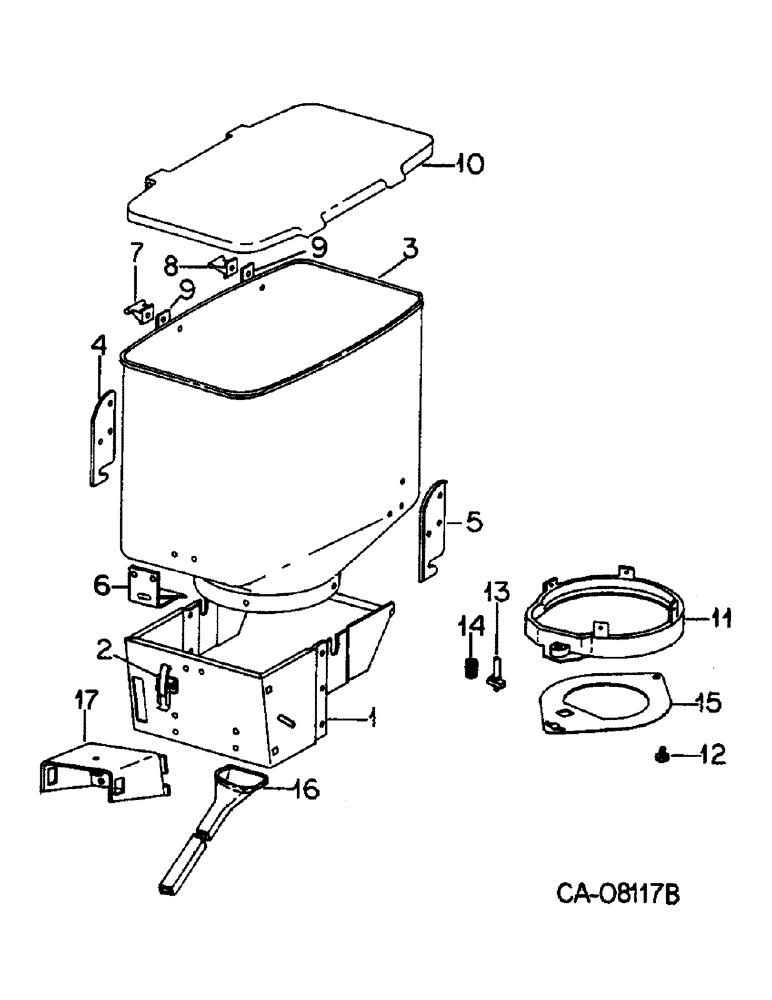

Запчасти Case IH 800 (13-07) - EARLY RISER PLATE PLANTER UNIT, SEED HOPPER AND CONNECTIONS, QUANTITIES SHOWN PER UNIT (09) - CHASSIS/ATTACHMENTS

1

79949C3

SHEET

ASSY

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

2

669184R1

CLAMP

1шт.

443874

BRACKET

no. 10 x 1/2 znp h/hd mach

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

3

134252C1

HOPPER

seed

1шт.

4

144878C2

SUPPORT

pivot bracket LH

1шт.

5

144879C2

SUPPORT

pivot bracket RH

1шт.

134289C1

RUBBER WASHER

hopper

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

6шт.

20893R1

WASHER

.344 x 1.000 x .105

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

6

1277800C1

SUPPORT

ASSY, strike

1шт.

134289C1

RUBBER WASHER

hopper

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

7

141111C2

HINGE

hopper lid left

1шт.

8

1254172C2

HINGE

hopper lid right

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 znp p/hds mach

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

9

1254428C1

PAD

hopper lid hinge

2шт.

10

137128C3

COVER

seed hopper

1шт.

11

134343C1

RING

combination hopper bottom

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

4шт.

12

140813C1

BOLT,3/8" x 1 1/4"

plate pivot

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

147275C1

NUT

3/8-16 flange lock

1шт.

13

147216C1

PIN

locating and locking

1шт.

14

147225C1

SPRING

hopper bottom

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

15

147213C3

LARGE PLATE

PLATE, hopper bottom, for corn & other seed

2шт.

15

147214C2

PLATE

hopper bottom grooved, for large corn seed

2шт.

15

147215C1

LARGE PLATE

PLATE, hopper bottom, for rotary cone, cotton and peanut seed

1шт.

16

245808C1

TUBE ASSY.

TUBE W/SENSOR, seed, replaces seed tube, 145064C1 by also ordering adapter harness, 245746C1, for corn and other seeds

1шт.

16

1264294C1

PLASTIC-RUBBER TUBE,600, 45 mm Length

TUBE, seed, no sensor or wiring, for corn and other seeds

1шт.

16

245744C1

TUBE

W/SENSOR, beet seed, replaces seed tube, 1261152C1 by also ordering adapter harness, 245746C1

1шт.

16

1264295C1

TUBE

beet seed, no sensor or wiring

1шт.

16

245809C1

TUBE

W/SENSOR, seed, replaces seed tube, 1254245C1 by also ordering adapter harness, 245746C1, for peanut and other large seeds

1шт.

16

1264296C1

TUBE

seed, no sensor or wiring, for peanut and other large seeds

1шт.

17

1254319C2

BRACKET

ASSY, jackshaft support

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 x 4-3/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

486830R1

COTTER PIN

PIN, 3/16 x 2-1/8 quick attachable cot.

1шт.
