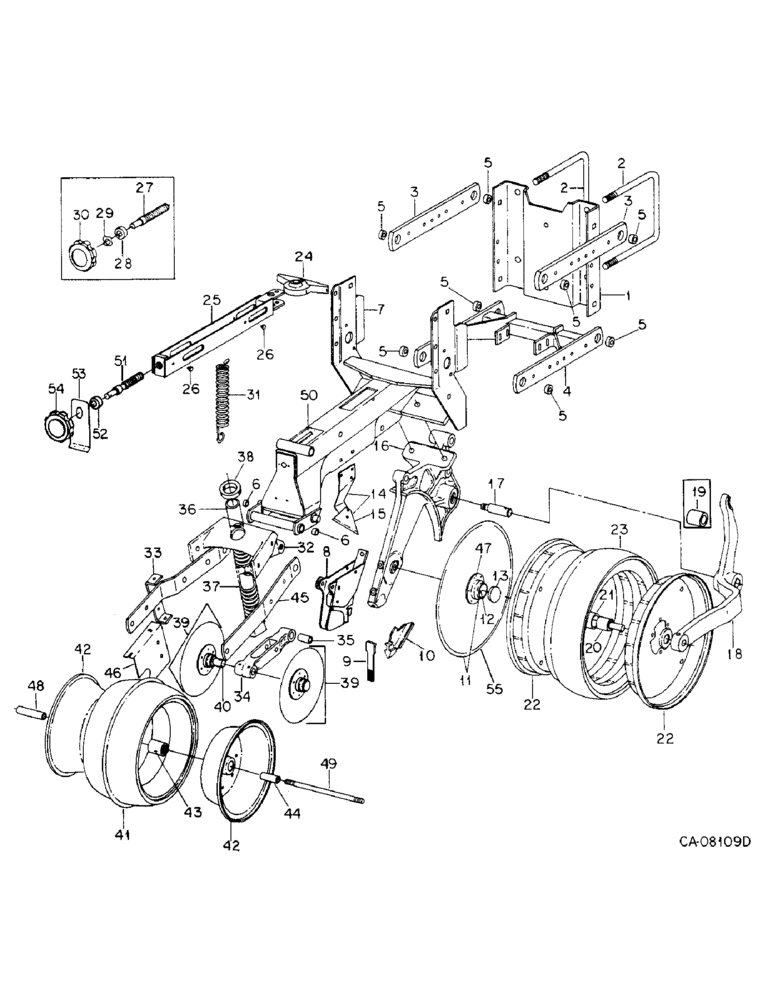

Запчасти Case IH 800 (13-01) - EARLY RISER PLATE PLANTER UNIT, FRAME AND CONNECTIONS, QUANTITIES PER UNIT, S/N 19900 & BELOW (09) - CHASSIS/ATTACHMENTS

1

141728C1

CHANNEL

head bracket

1шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

3

137507C3

BAR

linkage lower

2шт.

4

147354C2

SUPPORT

ASSY, linkage lower

1шт.

5

137512C2

BUSHING

linkage pivot

8шт.

1279075C1

CARRIAGE BOLT,Flat Hd, Sq Nk, 1/2" - 13 x 2", Type 5

BOLT, 1/2 x 2 flat-hd crg

2шт.

28428R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znp crg type 5

6шт.

20601R1

WASHER

.531 x 1.250 x .105

8шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 p/t lock type 5

8шт.

6

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

BEARING, steel back bronze

2шт.

7

1264199C2

FRAME

ASSY, planter unit, includes ref no. 6

1шт.

8

1277777C1

SHOE (ASSY)

SHOE ASSY, double disk opener, replaces 147207C4 for planter units built 1983 and prior, by also ordering shovel, 1277776C1

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

71769C1

FLANGE BOLT

SCREW, 3/8 x 3/4 hex-hd flange patch locking

2шт.

9

140817C1

DEFLECTOR

seed

1шт.

10

1277776C1

SHOVEL

firming, replaces 1254582C1 for planter units built 1983 and prior, by also ordering shoe assy, 1277777C1

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

used only w/shovel, 1254582C1 1/4" x 7/8", Coiled

1шт.

11

149171C2

DISC

DISK ASSY, 14 in., note B, order disk assy, 90850C91

2шт.

11

1279414C1

DISC

DISK ASSY, 14 in. hardfaced, used as LH leading disk on planter row unit

1шт.

12

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball double disk opener

2шт.

12

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

28067R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 phc type 8 LH

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

.656 x 1.00 x .054 hardened, shim to center furrow firming point between disks

4шт.

13

492709R1

CAP

bearing housing

2шт.

14

147436C93

SCRAPER

ASSY, LH

1шт.

14

147439C93

SCRAPER

ASSY, RH

1шт.

26212R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT, 5/16 x 5/8 crg type 5

4шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 crg type 1

1шт.

9413977

NUT

5/16 phc p/t lock type 8

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051, shim under rear bolt of scraper

4шт.

15

147438C2

HALF BLADE

BLADE, scraper, one per scraper

1шт.

147274C1

RIVET,4.78mm OD x 10mm L

3/16 x 3/8 special

2шт.

16

1261124C1

BRACKET

unit casting

1шт.

17

149173C1

PIN

gauge wheel

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

18

1279098C1

ARM

depth wheel LH, replaces arm with bushing, 1264030C1

1шт.

18

1279099C1

ARM

depth wheel RH, replaces arm with bushing, 1264031C1

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

20704R1

WASHER

1.031 x 1.500 x .105

4шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

2шт.

19

145049C1

BUSHING,25.7mm ID x 33.38mm OD x 63.5mm L

depth wheel arm, one per arm, used only with arms, 1264030C1 and 1264031C1

1шт.

1279444C91

WHEEL ASSY.

WHEEL ASSY, gauge, consists of ref nos. 20, 21, 22, 23 and attaching hardware

1шт.

20

128558C91

BALL BEARING,30mm OD x 75mm L

wheel

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

21

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

bearing sleeve

2шт.

22

128616C1

WHEEL

DISK, wheel

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

14шт.

23

128633C1

TYRE/TIRE

TIRE, disk opener gauge wheel

2шт.

24

1279508C1

BRACKET

wobble, replaces 147295C1

1шт.

21084R1

CLEVIS PIN

PIN, 3/4 x 1.796 clevis

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.750 hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot

1шт.

25

147276C3

BAR

ASSY, tension

1шт.

1277597C1

STUD

#12 x 3/4 barbed

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

26

147483C1

PLUG

hole

4шт.

27

147471C2

STUD

ROD, depth adjusting, note A, serial no. 4200 and below

1шт.

28

149228C1

SPACER

DETENT ASSY, note A, serial no. 4200 and below

1шт.

29

538709R1

SPRING WASHER

note A, serial no. 4200 and below

1шт.

30

1264423C91

KNOB

ASSY, adjusting, note A, serial no. 4200 and below

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

31

147425C3

SPRING

press wheel

1шт.

671034R1

PIN

1/2 x 1.500 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

32

1254337C1

SUPPORT

spring anchor

1шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 crg type 1

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

33

1254338C1

ARM

BAR ASSY, press wheel arm left

1шт.

34

79948C2

ARM

pivot

1шт.

35

149141C2

BUSHING,9.65mm ID x 15.88mm OD x 28.5mm L

pivot

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

36

1250875C2

TUBE,205, 47 mm Length

GUIDE ASSY, spring

1шт.

37

149195C1

SPRING

forming, minimum tillage only

1шт.

37

1264391C1

SPRING

forming

1шт.

38

149192C1

COLLAR

1шт.

28412R1

SET

SCREW, 5/16 x 1/2 hd/pt pln s/h set

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

39

149176C2

DISC

DISK ASSY, covering, in order to convert to staggered covering disks, order parts accessory, 1263978C92

1шт.

273160

DISC

1/4 x 1/2 pln f/hd sol

12шт.

40

128558C91

BALL BEARING,30mm OD x 75mm L

ga wheel

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

41

1250917C1

TYRE/TIRE

TIRE, 6.5 x 12 in.

1шт.

re it no. 41. This tire has a different physcial appearance than show in cat. it has external ribs equally spaced horizontally. ph-cam 5/5/97

1шт.

42

149148C1

RIM

6.5 x 12 in.

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

1277909C1

SPACER

8.48 x 12.70 x 17 mm, drive wheel spacer

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

43

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

ball

1шт.

44

149221C1

SPACER

press wheel

1шт.

45

1254320C1

SUPPORT

press wheel arm right

1шт.

46

1261595C1

CHANNEL

ASSY, chain guard

1шт.

62372C1

THUMB SCREW

thumb

1шт.

196471C1

BOLT,Hex, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 hex-hd flange type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

47

149170C2

FLANGED BEARING

FLANGE, bearing

2шт.

273160

DISC

1/4 x 1/2 pln f/hd sol

12шт.

48

1279043C1

SPACER

press wheel axle, replaces 1254324C1

1шт.

49

1261196C1

STUD

press wheel, rod

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

50

147326C1

DECAL

GAUGE, depth

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

51

1279684C1

ROD

depth adjusting, serial no. 4201 and above

1шт.

52

25711R1

WASHER

.656 x 1.312 x .150 hdn, serial no. 4201 and above

1шт.

53

1279107C1

STRAP

detent, serial no. 4201 and above

1шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap

2шт.

54

1279740C91

KNOB

ASSY, detent (depth adjusting), includes pins, serial no. 4201 and above

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

55

149172C2

DISC

DISK, 355 x 3mm S, 40mm opener, part of disk assy, 149171C2

2шт.

1279790C91

KIT

PACKAGE, detent conversion, 2 rows, serial no. 4200 and below, consists of

1шт.

1279740C91

KNOB

ASSY, detent

2шт.

1279684C1

ROD

depth adjusting

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

2шт.

1279107C1

STRAP

detent

2шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap, instructions (NSS)

4шт.

1263978C92

PACKAGE

PARTS ACCESSORY, staggered covering disk, 2 rows, consists of

1шт.

1279519C1

ARM

pivot long

2шт.

1279520C1

ARM

pivot short

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

21756R1

WASHER

.469 x .750 x .027

2шт.

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING, ball

2шт.

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

spacer

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2. hd type 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

1277891C91

DISC

DISK ASSY, covering

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8 phc p/t lock type 5

2шт.

28653R1

BOLT,Hex, 5/8"-11 x 1 3/4", Gr 5

5/8 x 1-3/4 LH znd type 5

2шт.

28652R1

LOCK NUT,5/8"-11, GB, LH

NUT, 5/8 p/t LH phc type 5

2шт.

492709R1

CAP

bearing housing

4шт.

1263977C1

BOLT

3/8-16 x 3/4 flanged hex-hd p/t, double disk opener shoe, instructions, installing (NSS)

4шт.
