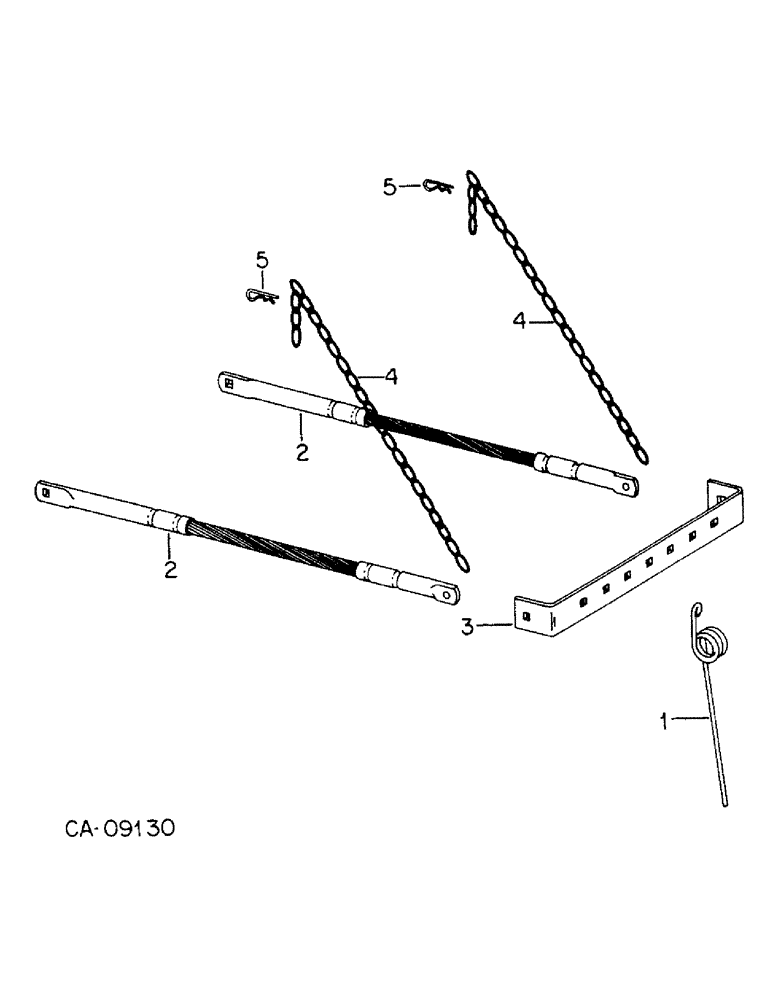

Запчасти Case IH 800 (11-08) - GRANULAR CHEMICAL, SPRING TOOTH INCORPORATOR (09) - CHASSIS/ATTACHMENTS

1

1261265C2

TOOTH

incorporator

7шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

7шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

7шт.

2

1279951C1

CABLE

ASSY

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

1263671C1

CHANNEL

rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

178551

WASHER

3/8 ext-int tooth lock

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

4

1263672C1

CHAIN (AG)

CHAIN

2шт.

5

586591R1

COTTER PIN

PIN, quick attachable cot.

2шт.
