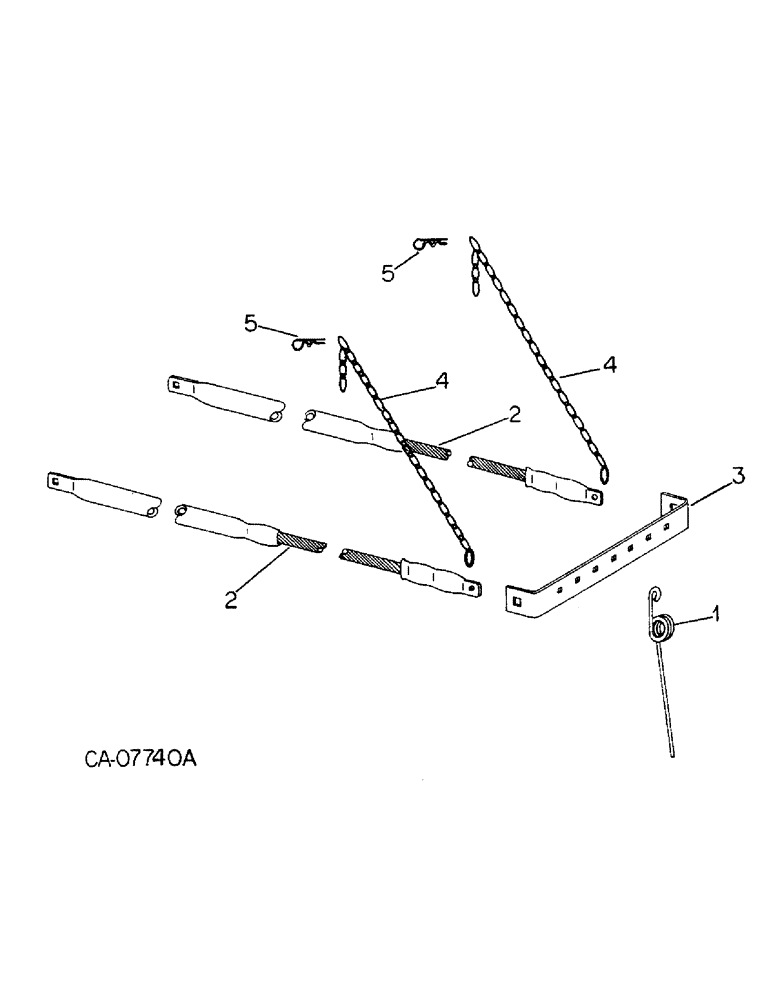

Запчасти Case IH 800 (11-07) - GRANULAR CHEMICAL,SPRING TOOTH INCORP, UNITS A THROUGH X (09) - CHASSIS/ATTACHMENTS

1

1261265C2

TOOTH

incorporator

7шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

7шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

7шт.

2

1261266C1

CABLE

order two cable assy, 1279551C1 channel, 1263671C1, two chains, 1263672C1, two bolts, 17351R1, two washers, 178566 and two nuts, 482256R1

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

BOLT, 3/8 x 1-3/8 crg type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

1261264C1

CHANNEL

BRACKET, rear, order channel, 1263671C1, two cable assy, 1279551C1, two chains, 1263672C1, two bolts, 17351R1, two washers, 178566 and two nuts, 482256R1

1шт.

4

1261267C1

CHAIN (AG)

CHAIN, order two chains, 1263672C1, channel, 1263671C1, two cable assy, 1279551C1, two bolts, 17351R1, two washers, 178566 and two nuts, 482256R1

2шт.

5

586591R1

COTTER PIN

PIN, quick attachable cot.

2шт.
