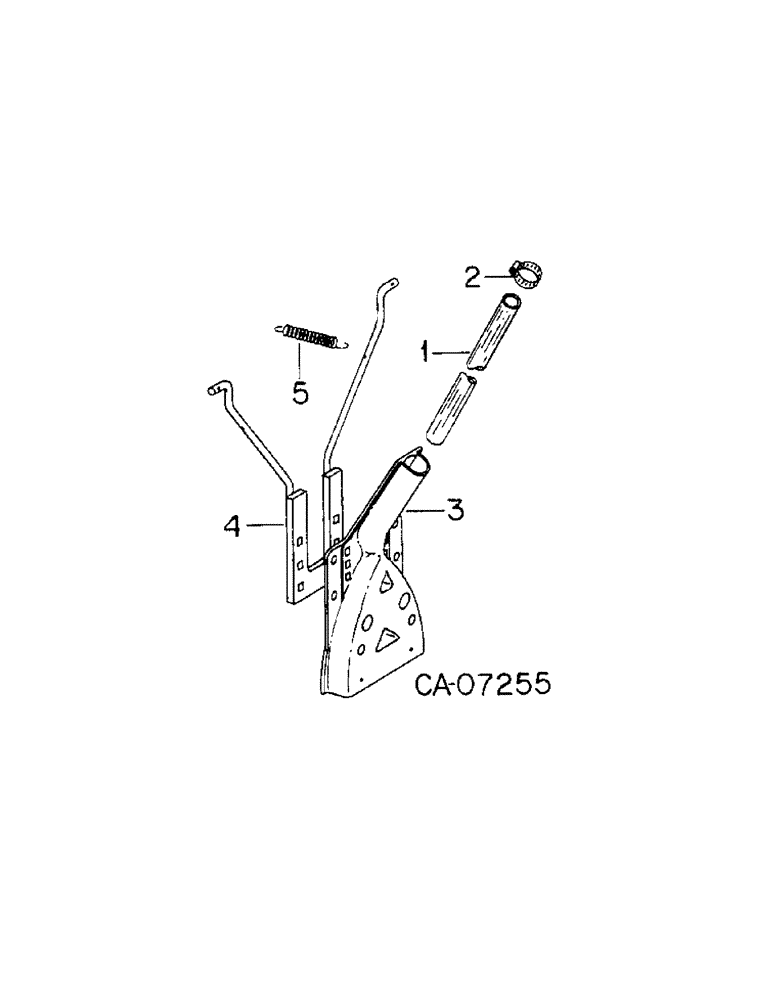

Запчасти Case IH 800 (11-04) - GRANULAR CHEMICAL, INSECTICIDE SPREADER, FRONT MOUNTED, ONE PER ROW, UNITS A THRU AB (09) - CHASSIS/ATTACHMENTS

1

HOSE, granular chemical, use 11 inches from bulk roll marked 1254166C1

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose type F

1шт.

3

147361C1

DEFLECTOR

SPREADER ASSY, insecticide

1шт.

1254229C1

RIVET

oval hd semi-tubular zn

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

4

149256C2

SUPPORT

ASSY, insecticide spreader

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

5

650949C1

VALVE SPRING

SPRING, rear spreader

1шт.
