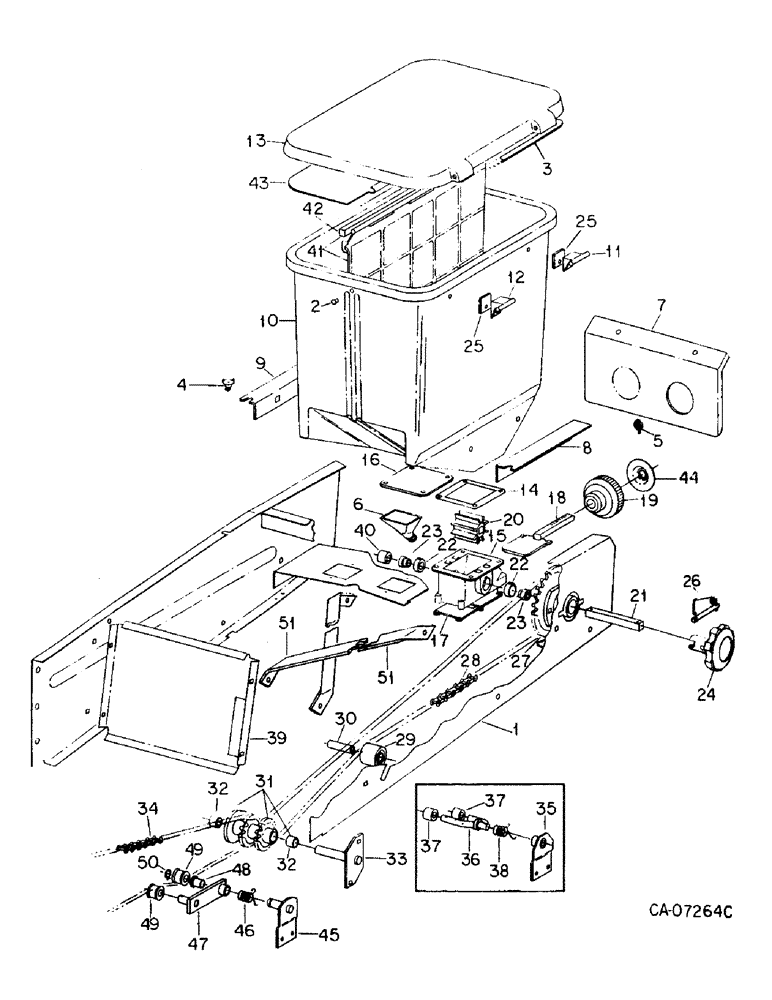

Запчасти Case IH 800 (11-02) - GRANULAR CHEMICAL, GRANULAR CHEMICAL ATTACHMENT, UNITS A THRU AB, ONE PER ROW (09) - CHASSIS/ATTACHMENTS

1

1264327C2

LARGE PLATE

PLATE ASSY, unit side

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

1261242C2

PLUG

hopper hole, for use when divider assy removed

2шт.

3

SEAL, hopper, 55.59 in./1412mm long, make from 50 ft roll marked, 149577C2

1шт.

4

140996C1

BOLT,Pan Hd, 5/16" - 18 x 21mm, Full Thd

hopper support

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

479696R91

AXLE PIN

PIN, klik

1шт.

6

137044C1

NECK FILLER

NECK, funnel

1шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap

2шт.

7

134353C1

SUPPORT

hopper

1шт.

134289C1

RUBBER WASHER

hopper bottom

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

8

134326C2

ANGLE

SUPPORT, hopper LH

1шт.

9

134327C2

ANGLE

SUPPORT, hopper RH

1шт.

134289C1

RUBBER WASHER

hopper support rubber

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

8шт.

20893R1

WASHER

.344 x 1.000 x .105

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

10

134251C1

HOPPER

1шт.

11

141111C2

HINGE

hopper lid left

1шт.

12

1254172C2

HINGE

hopper lid right

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper lid rubber

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 znp p/hds mach

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

13

134325C3

COVER

hopper lid

1шт.

14

134298C1

GASKET

hopper

2шт.

15

137043C1

HOUSING

upper

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper bottom

4шт.

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW, 1/4 x 3/4 h/whd tap

4шт.

21784R1

WASHER

.266 x .500 x .054

4шт.

16

137186C1

COVER

PLATE, cover

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper bottom

4шт.

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW, 1/4 x 3/4 h/whd tap

4шт.

21784R1

WASHER

.266 x .500 x .054

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

17

137055C1

RETAINER

gauge control

1шт.

28290R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW, no. 10 x 5/8 p/hdcr tap

6шт.

395-31022

WASHER,#10

.203 x .469 x .036

7шт.

18

134286C1

GAUGE

GATE, rate control

1шт.

19

134287C1

KNOB

gauge

1шт.

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 PHC p/hdcr tap

2шт.

20

134296C1

ROLL

feeding

1шт.

21

134254C1

BAR

1шт.

22920R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

134253C1

SQ HOLE WASHER

2шт.

SL708

WASHER, .891 x 1.250 x .033 pln, or as required

2шт.

22

134293C1

HOUSING

BUSHING, housing

2шт.

23

134297C1

BUSHING

drive shaft

2шт.

24

1264422C92

BUTTON

KNOB ASSY, granular chemical drive, includes ref no. 26

1шт.

25

1254428C1

PAD

hopper lid hing

2шт.

26

140933C2

PIN

ASSY, quick release

1шт.

27

136947C91

SPROCKET ASSY.

SPROCKET, bearing, 30T

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

28

CHAIN, drive, furnish 161 links from bulk roll marked 475879R91 and 1 conn link 1306D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

29

57796C1

ROLLER

chain tightener

1шт.

30

134288C1

SPACER

roller

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21041R1

WASHER

.531 x 2.000 x .054

2шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 crg type 1

1шт.

21496R1

WASHER

.344 x .750 x .105

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

1279285C91

SPROCKET ASSY.

SPROCKET ASSY, 12T, note A, includes ref no. 32, replaces 140906C91

1шт.

32

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING, fiberglide, note A

2шт.

33

140789C1

SHAFT

ASSY, note A

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

21796R1

WASHER

.656 x 1.000 x .054, or as required

5шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

34

CHAIN, plate drive, note A, use 61 links from 10 ft. roll marked 475879R91 and 1 conn link 1306D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

35

141663C2

ARM ASSY.

SUPPORT ASSY, idler arm, note A, built 1981 and 1982, order package, 1277843C91

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

36

141665C1

ARM

ASSY, idler, note A, built 1981 and 1982, order package, 1277843C91

1шт.

37

141653C1

ROLLER

idler, note A, built 1981 and 1982, order package, 1277843C91

2шт.

21903R1

WASHER

.531 x .750 x .054

2шт.

22265R1

WASHER

.531 x 1.250 x .027

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

38

140866C2

SPRING

idler unit, note A, built 1981 and 1982

1шт.

39

149183C1

SUPPORT

tie granular chemical, sheet, note A

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

40

134290C1

SPACER

coupling

1шт.

41

149576C3

DIVIDER

ASSY, chemical hopper, includes ref nos 42 and 43

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

no. 10 x 1/2 znp h/hd mach

2шт.

445135

NUT

10-24 r/p style I

2шт.

42

SEAL, hopper, 17.63 in./448mm long, make from 50 ft. roll marked 149578C2

1шт.

43

LID, divider (NSS), order divider assy, 149576C3

1шт.

44

134294C1

DIAL

PRODUCT GRAPHIC, dial handle disk

1шт.

45

1277838C1

LEVER

ARM ASSY, tightener, plate, note A, built 1983 and since

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

46

1277854C1

SPRING

idler unit, note A, built 1983 and since

1шт.

47

1277658C1

LEVER

IDLER ASSY, arm, note A, built 1983 and since

1шт.

48

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

NYLINER, idler, note A, built 1983 and since

1шт.

49

1277653C1

IDLER

ROLLER, idler, note A, built 1983 and since

1шт.

551177R1

WASHER

.656 x 1.250 x .054 pln

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

50

384098R1

SNAP RING,#62, Ext

Ring, Snap, , note A, built 1983 and since #62, Ext

1шт.

51

1277831C1

SUPPORT

frame, built 1983 and since

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

1277843C91

PACKAGE

granular chemical idler, units built 1981 and 1982, consists of ref nos. 45 through 50 and attaching hardware, note A

1шт.
