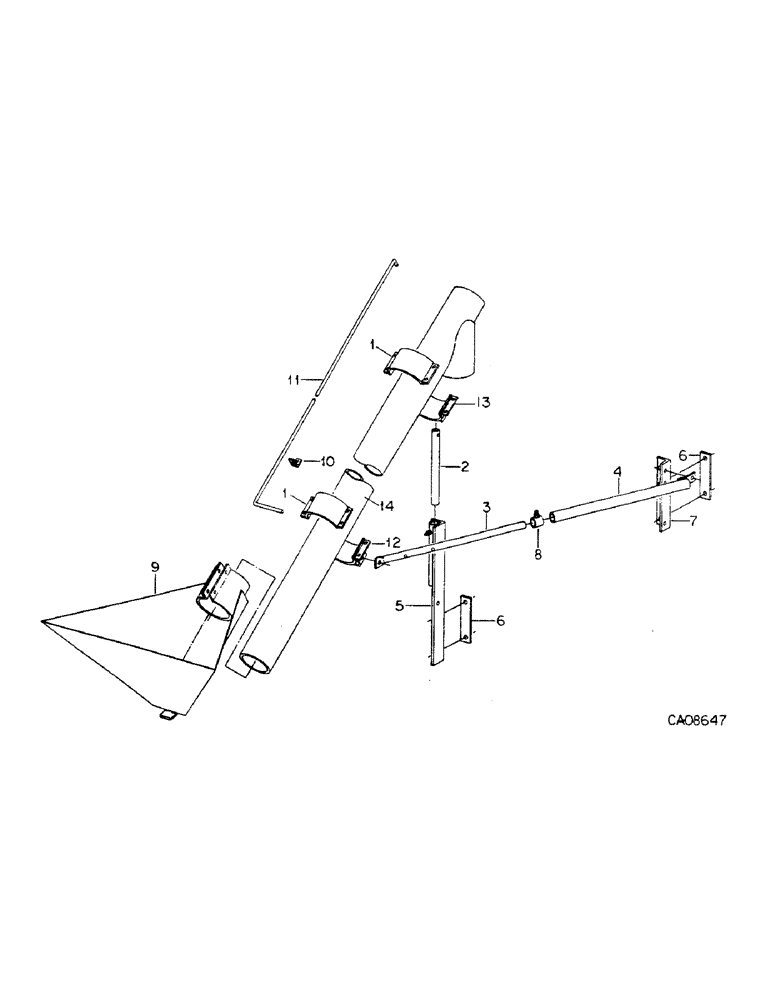

Запчасти Case IH 800 (10-25) - FERTILIZER, VERTICAL QUICK FILL AUGER ATTACHMENT, DRY FERTILIZER, UNITS A THROUGH G, M AND T (09) - CHASSIS/ATTACHMENTS

1

1279299C1

BAND

half, plain

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

2

1279301C1

TUBE

vertical support

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

3

1279302C1

TUBE,1.315" OD, 30" Length

inner support

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2. hd type 5

2шт.

586591R1

COTTER PIN

PIN, 1/8 qa

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

2шт.

4

1279303C1

TUBE,1.625" OD, 28" Length

outer support

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

2шт.

5

1279304C1

BRACKET

W/TWO SET SCREWS

1шт.

6

1279306C1

STRAP

9.5 in.

3шт.

21130R1

BOLT,Hex, 5/8" - 11 x 9", Gr 5

5/8 x 9 type 5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

6шт.

7

1279308C1

ANGLE

anchor bracket

2шт.

8

1279309C1

COLLAR

set

2шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

2шт.

9

1279314C1

HOPPER

ASSY

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

1279316C1

HOLDER

rod

1шт.

11

1279315C1

ROD

safety shut-off

1шт.

137180

COTTER PIN,1/8" x 7/8"

PIN, SPLIT (COTTER), 1/8" x 7/8"

1шт.

12

1279311C1

BAND

bottom, weldment

1шт.

13

1279312C1

BAND

top, weldment

1шт.

14

AUGER AND TUBE, serviced only as a machine att (NSS)

1шт.
