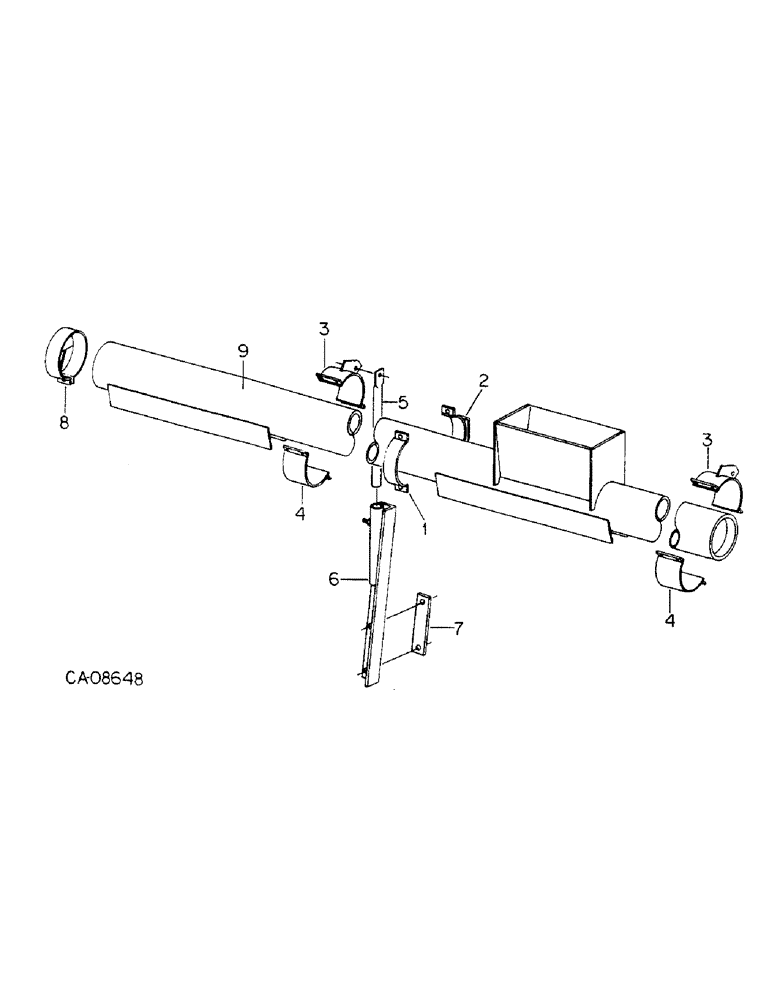

Запчасти Case IH 800 (10-24) - FERTILIZER, HORIZONTAL QUICK FILL AUGER ATTACHMENT, DRY FERTILIZER, UNITS A THROUGH G, M AND T (09) - CHASSIS/ATTACHMENTS

1

1279296C1

BAND

half, plain

2шт.

2

1279297C1

BAND

half, weldment

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

1279298C1

BAND

half, weldment, 2 for units A, B, F and G, 3 for units C, D and M, 4 for units E and T

1шт.

4

1279299C1

BAND

half, plain, 2 for units A, B, F and G, 3 for units C, D and M, 4 for units E and T

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5, 4 per band

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 4 per band 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

4 per band 3/8"-16, G5

1шт.

5

1279300C1

TUBE,1.315" OD, 23" Length

auger support, 2 for units A, B, F and G, 3 for units C, D and M, 4 for units E and T

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5, 1 per tube

1шт.

120384

WASHER,1/2"

LOCK, , 1 per tube 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per tube 1/2"-13, G5

1шт.

6

1279305C1

BRACKET

W/SET SCREW, auger support tube, 2 for units A, B, F and G, 3 for units C, D and M, 4 for units E and T

1шт.

24881R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2 per bracket Hex, 5/8"-11 x 4", G8

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per bracket 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 2 per bracket

1шт.

7

1279307C1

STRAP

8.5 in., 1 per bracket

1шт.

8

1279310C1

BAND

safety

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

AUGER AND TUBE, serviced only as a machine att (NSS)

1шт.
