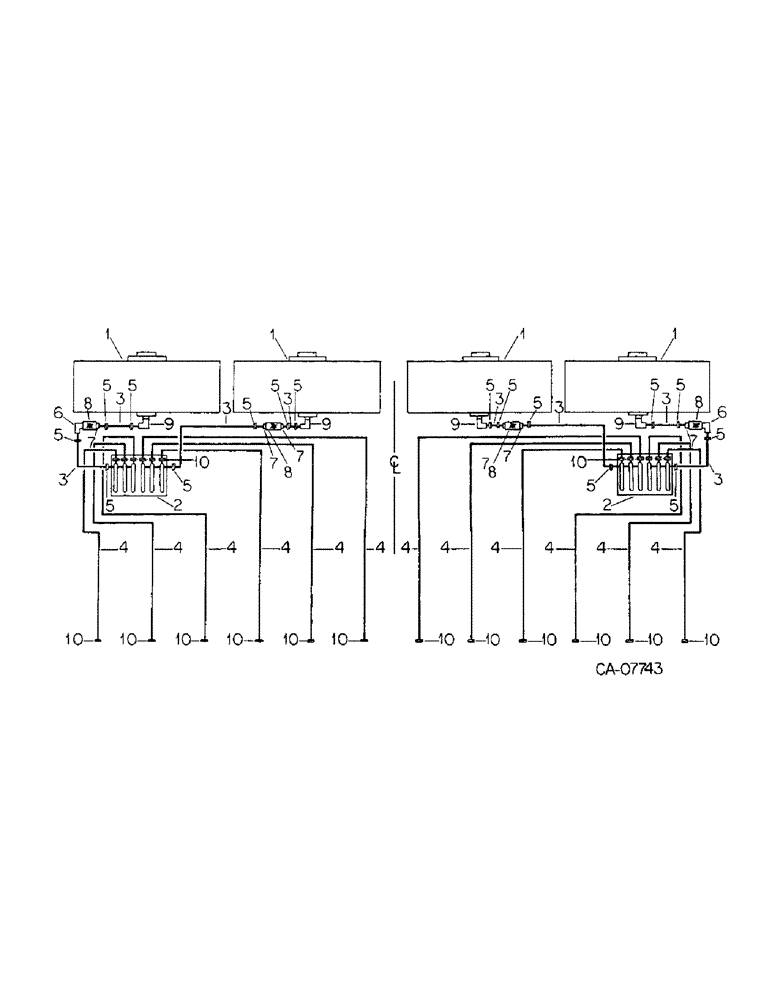

Запчасти Case IH 800 (10-20) - FERTILIZER, LIQUID FERTILIZER SQUEEZE PUMP HOSES AND RELATED PARTS, UNITS A, B, E, F, G, S AND T (09) - CHASSIS/ATTACHMENTS
4
5
5
3
2
10
9
1
10
9
10
7
10
3
8
5
4
6
5
4
5
3
2
10
3
3
1
5
4
7
3
10
7
1
5
4
5
4
4
1
4
4
10
7
4
8
10
10
5
6
10
4
8
3
5
5
8
5
4
10
10
9
7
5
5
10
9
7
3
5
5
10
№
Артикул
Название
Примечание
Количество
1
HOPPER, liquid fertilizer, for components see hopper and related parts
1шт.
2
PUMP, liquid fertilizer squeeze, for components see squeeze pump and related parts
1шт.
3
HOSE, liquid fertilizer tank, furnish 14 feet from bulk roll marked 134329C1
1шт.
4
HOSE, liquid fertilizer tank, furnish 75 feet from bulk roll marked 134331C1
1шт.
5
324734R1
HOSE CLAMP,#20, 1 1/4", Spring
CLAMP, no. 20 type E spring wire hose
1шт.
6
134271C1
ELBOW
FITTING, elbow
1шт.
7
134270C1
FITTING
straight
1шт.
8
134285C1
SHUT-OFF VALVE
VALVE, nylon
1шт.
9
1261310C1
ELBOW
1-1/4 x 1 barbed hose
1шт.
10
237585R1
HOSE CLAMP,#13, 13/16", Spring
CLAMP, no. 13 type E spring wire hose
1шт.
Выбрано товаров: 10
