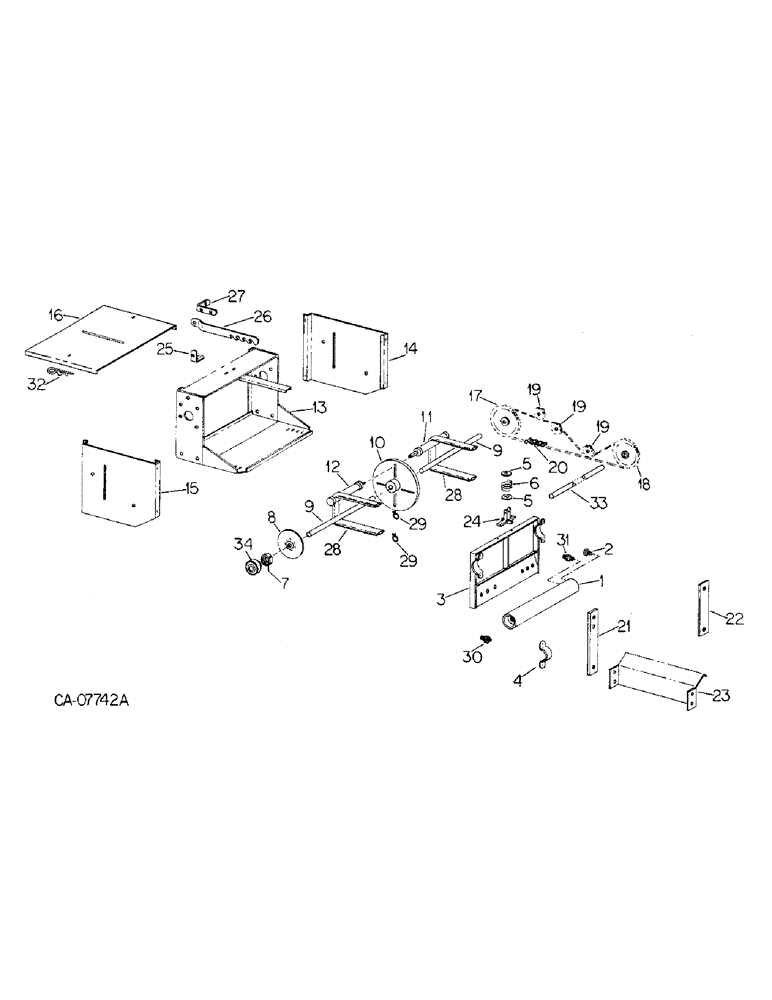

Запчасти Case IH 800 (10-18) - FERTILIZER, LIQUID FERTILIZER SQUEEZE PUMP AND RELATED PARTS, UNITS A THRU G, M, S AND T (09) - CHASSIS/ATTACHMENTS

1250764C92

PUMP

SQUEEZE PUMP ASSY, 6 row, units A, B, E, F, G, S and T

1шт.

1250763C92

PUMP

SQUEEZE PUMP ASSY, 8 row, units C, D and M

1шт.

1

1261268C2

MANIFOLD

metering pump, units A, B, E, F, G, S and T

1шт.

1

1261304C2

MANIFOLD

metering pump, units C, D and M

1шт.

2

64696C1

PLUG

pump manifold, units A, B, E, F, G, S and T

1шт.

3

1261269C1

PLATE

front, units A, B, E, F, G, S and T

1шт.

3

1261305C1

PLATE

front, units C, D and M

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

138083

PIN

1/4 x .770 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

4

64697C1

CLAMP

pump manifold outer

1шт.

5

64698C1

THRUST WASHER

plate spring

1шт.

6

64699C1

SPRING

plate

1шт.

7

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

W/SET SCREW, locking

1шт.

8

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGETTE, locking collar

1шт.

9

1261287C1

ROD

SHAFT, pump drive, units A, B, E, F, G, S and T

1шт.

9

1261288C1

ROD

SHAFT, pump drive, units C, D and M

1шт.

10

1261289C1

WHEEL

CYLINDER WHEEL

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 pln c/pt sq/hd set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

11

1261290C1

ROLLER

pump shaft, short, units A, B, E, F, G, S and T

1шт.

11

1261303C1

ROLLER

pump shaft, short, units C, D and M

4шт.

12

1261291C1

ROLLER

pump shaft, long, units A, B, E, F, G, S and T

1шт.

12

1261302C1

ROLLER

pump shaft, long, units C, D and M

4шт.

13

1261292C1

FRAME

main, units A, B, E, F, G, S and T

1шт.

13

1261308C1

FRAME

main, units C, D and M

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

14

1261293C1

SUPPORT

PLATE, side LH

1шт.

15

1261294C1

SUPPORT

PLATE, side RH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

16

1261307C1

CHANNEL

pump, lid, units A, B, E, F, G, S and T

1шт.

16

1261306C1

CHANNEL

pump, lid, units C, D and M

1шт.

17

1250746C1

SPROCKET

ASSY, 24T

1шт.

17

1254149C1

SPROCKET

ASSY, 21T

1шт.

17

1254150C1

SPROCKET

ASSY, 30T

1шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1.875 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18

1254152C2

SPROCKET

ASSY, 30T, driver

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

1шт.

19

472344R3

SPROCKET

idler

1шт.

20

CHAIN, squeeze pump drive, furnish 99 links from bulk roll marked 569088R91, 1 connecting link, 1277927C91 and 1 offset link 457114R91

1шт.

1277927C91

LINK

connecting

1шт.

457114R91

CHAIN LINK

LINK, #2040 double pitch offset

1шт.

21

1261295C1

BAR

CLIP, long

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22

1261296C1

BAR

CLIP, short

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

1261297C1

SUPPORT

GUARD, hose

1шт.

24

1261298C1

BRACKET

TIGHTENER, holder bracket

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

25

64690C1

ANGLE

BRACKET, lever

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

26

64692C1

SUPPORT

TIGHTENER, lever

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znp p/hds mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

27

64691C1

ANGLE

TIGHTENER, lever

1шт.

28

64693C1

HOSE,0.50" ID x 21.50"

Pump 0.50" ID x 21.50"

1шт.

28

134283C1

HOSE,0.38" ID x 21.50"

Pump 0.38" ID x 21.50"

1шт.

28

134284C1

HOSE

pump 5/8 in., one per row

1шт.

29

134276C1

CLAMP

hose 1/2 in.

1шт.

29

134277C1

CLAMP

hose 3/8 in.

1шт.

29

134278C1

CLAMP

hose 5/8 in., 2 per row

1шт.

30

64694C1

FITTING

1/2 x 1/2 in.

1шт.

30

134280C1

FITTING

1/2 x 3/8 in.

1шт.

30

134281C1

FITTING

1/2 x 5/8 in., one per row

1шт.

31

64695C1

FITTING

manifold 1/2 in.

1шт.

31

134274C1

FITTING

manifold 3/8 in.

1шт.

31

134275C1

FITTING

manifold 5/8 in., one per row

1шт.

32

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

33

BAR, fertilizer inner drive, refer to fertilizer drive

1шт.

34

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball

1шт.
