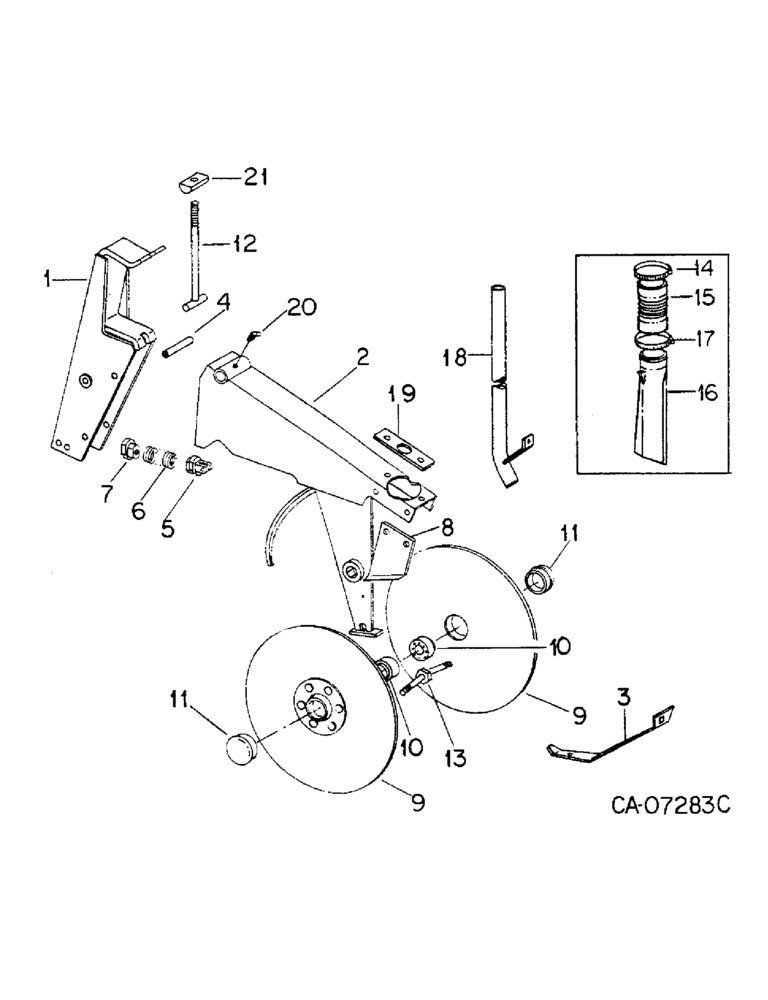

Запчасти Case IH 800 (10-16) - FERTILIZER, DOUBLE DISK OPENERS, UNITS A THRU G, M, S AND T, ONE PER ROW (09) - CHASSIS/ATTACHMENTS

1

1250739C3

HANGER

ASSY

1шт.

2

1250742C2

FRAME

BOOT ASSY, double disk

1шт.

REF: #2 - 1250742c2 - if looking for the curved guard that's under this frame, the part number is 1250727c1. NA#12-1994.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

3

140994C1

SUPPORT

scraper inside fertilizer

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

4

1250726C1

TUBE,12.95 mm ID, 19.05 mm OD, 76 mm Length

SPACER, tube bracket

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5

1шт.

23172R1

PIN

1/2 x 3.750 hd type 5

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

5

1250700C1

PLUG

spring

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

6

591546R1

SPRING

1шт.

7

591547R1

PLUG

1шт.

1250736C1

WASHER

pivot

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

8

1250734C2

FAN BLADE

SCRAPER, LH

1шт.

8

1250735C2

FAN BLADE

SCRAPER, RH

1шт.

19659R1

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3 1/4", Gr 2

BOLT, 1/4 x 3-1/4 crg type 1

1шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4 hex. lock, 2 way

1шт.

9

141464C91

DISC

DISK ASSY, 13-1/2 in., 2 per row

1шт.

273160

DISC

1/4 x 1/2 pln f/hd sol

1шт.

10

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, 2 per row

1шт.

10

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8 jam lht type 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

11

492709R1

CAP

hub, 2 per row

1шт.

12

1250722C2

BOLT,1/2" - 13 x 217mm

tee

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

1шт.

13

492750R1

BOLT,5/8" - 11

special

1шт.

14

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type F hose

1шт.

15

141007C1

HOSE,35-54 mm ID x 100.011 mm

1шт.

16

140995C2

TUBE,212 mm Length

drop

1шт.

17

141000C1

HOSE CLAMP,54mm - 60mm

CLAMP, hose & applicator

1шт.

18

147421C1

TUBE

ASSY, liquid fertilizer

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

147424C1

STRIP

tube locator

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

20

19700R91

FITTING

3/16 hole 45D lub

1шт.

21

1277676C1

GUIDE

tee bolt

1шт.
