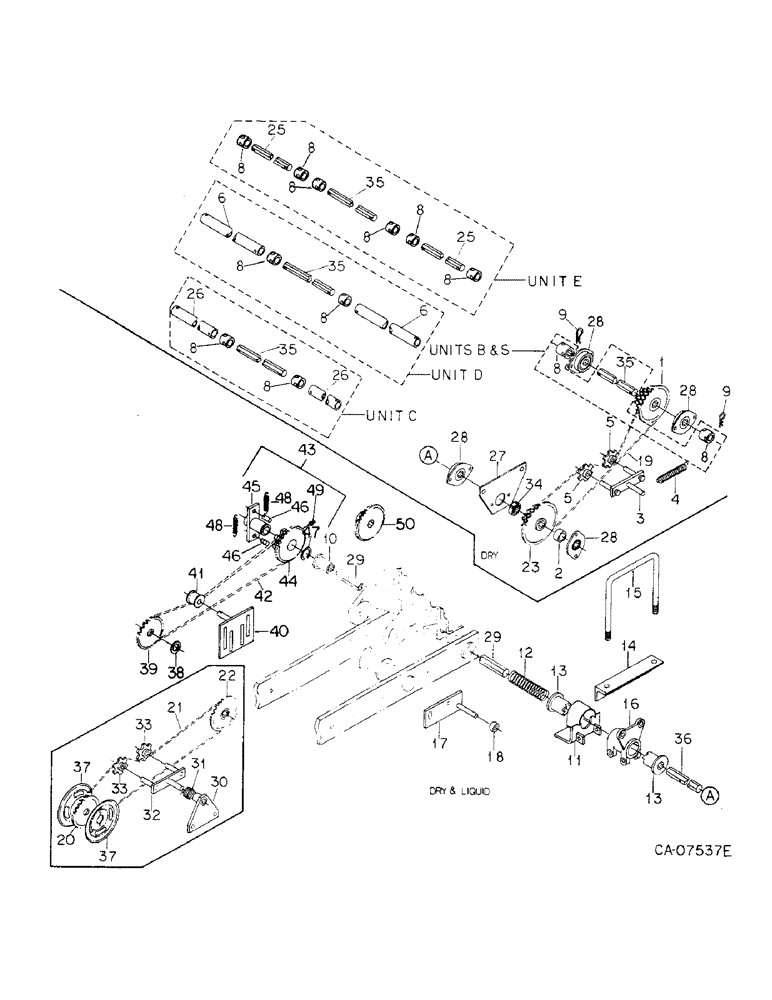

Запчасти Case IH 800 (10-12) - FERTILIZER, DRY & LIQUID FERTILIZER DRIVE, UNITS B, C, D, E, G, M, S AND T (09) - CHASSIS/ATTACHMENTS

1

141041C2

SPROCKET ASSY.

SPROCKET ASSY, shaft, input, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

1

1267911C1

SPROCKET

ASSY, shaft 16-24-30T, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above, optional w/1264352C11

1шт.

1

1264352C1

SPROCKET ASSY.

SPROCKET ASSY, shaft 20-34-36T, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above, optional w/1267911C1

1шт.

21916R1

PIN

1/4 x 2. hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

2

144812C1

SPACER

unit B, C, D, G, M & S

1шт.

3

141074C2

ARM

ASSY, chain tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

PO7

SPRING

used only with sprocket, 141041C2

1шт.

5

472344R3

SPROCKET

idler

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

141052C1

TUBE,33.4 mm OD, 706, 682 mm Length

coupler drive, 2 for unit D, between outside hoppers

1шт.

520177R1

PIN

3/16 qa cot.

4шт.

7

Not used this application

1шт.

8

1254392C1

COUPLING

ASSY, fertilizer, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

24812R1

HEADED PIN,1/4" x 2"

PIN, HEADED, 1/4" x 2"

1шт.

520177R1

PIN

3/16 qa cot.

1шт.

8

141771C1

SPACER

coupling drive, 1.42 in. long, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

8

1279571C1

COUPLING

SPACER, coupling drive, 4-1/4 in. long, unit S with serial no. 16801 and above

1шт.

21916R1

PIN

1/4 x 2. hd type 1

1шт.

9

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

10

140990C1

DRIVE BUSHING

BUSHING, drive shaft

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

3шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

5шт.

22440R1

WASHER

1.031 x 1.750 x .027

1шт.

11

137480C4

BRACKET

ASSY, throwout

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

1264302C1

SPRING

clutch, replaces 141003C1

1шт.

13

1264425C91

CLUTCH

ASSY, left drive, includes ref no. 12

1шт.

13

1264426C91

CLUTCH ASSEMBLY

CLUTCH ASSY, right drive, liquid, fertilizer for units E and T, includes ref no. 12

1шт.

1267994C1

WASHER

1.656 x 2.250 x .105

2шт.

14

137482C2

ANGLE

bearing

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

15

1250813C1

U-BOLT

replaces 493837R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

16

149311C2

HOUSING

clutch

1шт.

25391R1

FITTING

1/4 less ball check lub

1шт.

17

140988C2

SUPPORT

ASSY, RH

1шт.

17

140989C2

SUPPORT

ASSY, LH, liquid fertilizer for units E and T

1шт.

18

137481C1

BEARING

BALL, throwout

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19

CHAIN, fertilizer drive 1 inch, furnish 57 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

20

134335C1

SPROCKET ASSY.

SPROCKET, 14T wheel, note A

1шт.

21

CHAIN, wheel drive 1 inch, note A, furnish 69 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

22

134130C2

SPROCKET ASSY.

SPROCKET ASSY, drive wheel 27T, note A

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

4шт.

23

141063C2

SPROCKET

ASSY, fertilizer driver

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

24

Not used this application

1шт.

25

145175C1

BAR

fertilizer auger tie shaft, 2 for units E and T

1шт.

26

141455C1

TUBE,33.4 mm OD, 111 mm Length

drive right, units C and M

1шт.

26

147495C1

TUBE,33.4 mm OD, 251 mm Length

drive left, units C and M

1шт.

520177R1

PIN

3/16 qa cot.

4шт.

27

141173C1

SUPPORT

plate bearing, unit B and G dry & liquid fertilizer, units C, D and S dry fertilizer only

1шт.

27

1254171C1

PLATE

SUPPORT, plate bearing, unit M, dry & liquid fertilizer, units C, D, E, S and T liquid fertilizer only

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

28

134158C91

FLANGED BEARING

ball 7/8 hex bore

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

141404C3

BAR

shaft outer, units B and G, note D, dry and liquid fertilizer

1шт.

item # 29 141404c3...50.39" LONG .875" HEX STOCK WITH 5 HOLES

1шт.

29

141413C3

BAR

shaft outer, units C, E, M & T, note D, dry fertilizer only

1шт.

29

141059C3

BAR

shaft outer, unit D, note D, dry fertilizer only

1шт.

29

1268038C1

BAR

shaft outer, unit S, dry fertilizer only

1шт.

29

140969C2

BAR

shaft outer, units C, D, E, M, S and T, liquid fertilizer only

1шт.

30

136929C2

PLATE

ASSY, tightener wheel, note A

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

31

1264310C1

SPRING

wheel idler LH, note A

1шт.

31

137164C1

SPRING

wheel idler RH, liquid fertilizer for units E and T, note A

1шт.

32

134313C1

ARM

ASSY, wheel idler, note A

2шт.

33

472344R3

SPROCKET

idler, note A

4шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

4шт.

Q3500

WASHER

.656 x 1.125 x .067 pln

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

34

141572C2

COLLAR

HUB, sprocket

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

35

141770C2

BAR

shaft center drive, units B, D and G, dry fertilizer only

1шт.

35

147496C2

SHAFT

BAR, shaft center drive, units C and M, dry fertilizer only

1шт.

35

141110C2

BAR

shaft center drive, units E and T, dry fertilizer only

1шт.

35

1279881C1

SHAFT

BAR, shaft center drive, 46.46 in. long, unit S, replaces bar shaft, 1254389C1 for machines w/serial no. 16800 and below, by also ordering two spacer couplings, 1279571C1, dry fertilizer only

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

36

141412C2

BAR

shaft inner, units B, C, G and M, dry fertilizer only

1шт.

36

1264440C1

BAR

shaft inner, units D and S, dry fertilizer only

1шт.

36

141109C2

BAR

shaft inner, units E and T, dry fertilizer only

1шт.

36

1254423C1

BAR

shaft inner, units B, C, G and M, liquid fertilizer only, order bar, 149562C2, hub, 141572C2 and two screws, 21689R1, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

36

149562C2

BAR

shaft inner, units B, C, G and M, liquid fertilizer only, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

36

1264441C1

BAR

shaft inner, units D, E, S and T, liquid fertilizer only, replaces bar, 1254422C1 for cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 3510 and below by also ordering hub, 141572C2 and two screws, 21689R1

1шт.

454894R1

LOCK PIN,7/32" x 1 3/4", Slotted

Pin, 7/32" x 1 3/4", Slotted

2шт.

37

1264309C1

FLANGE

wheel sprocket, note A

1шт.

38

1277981C1

SPACER

axle, note B, dry fertilizer, units B, C, D, E, G, M, S and T, liquid fertilizer, unit B

2шт.

39

1277737C1

SPROCKET

wheel 12T, notes B and C

2шт.

40

91405C1

PLATE

ASSY, wheel drive idler, replaces 1279011C2, notes B and C

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

41

1277726C1

ROLLER,48mm OD x 34mm L

idler, notes B and C

2шт.

22198R1

WASHER

.656 x 1.125 x .042

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

42

CHAIN, wheel drive, 1-1/4 in., notes B and C, furnish 55 links from bulk roll marked, 569089R91 and one connecting link, 1277928C91

2шт.

1277928C91

LINK

connecting

1шт.

43

1277925C91

RATCHET

ASSY, LH 23T, notes B & C, dry fertilizer, units B, C, D, E, G, M, S and T, liquid fertilizer, unit B

2шт.

44

1277993C1

SPROCKET ASSY.

SPROCKET, 23T, part of ratchet, 1277925C91

2шт.

45

1279873C1

BAR ASSY.

COUPLER, ratchet, replaces 1277992C1, part of ratchet, 1277925C91

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

4шт.

46

1277994C1

PIN,11.11mm OD

L-PIN, Part of ratchet, 1277925C91

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

47

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, part of ratchet, 1277925C91

2шт.

48

1277995C1

SPRING

part of ratchet, 1277925C91

4шт.

49

443556

FITTING,3/8" - 16 x 2", Full Thd

3/16 hole lub, part of ratchet, 1277925C91

2шт.

50

1277743C1

DRIVING SPROCKET

SPROCKET ASSY, 23T, note B, liquid fertilizer, units C, D, E, G, M, S and T

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

1277990C91

PACKAGE

fertilizer drive two wheels conversion, note A, consists of ref nos. 39 through 49 and attaching hardware

1шт.
