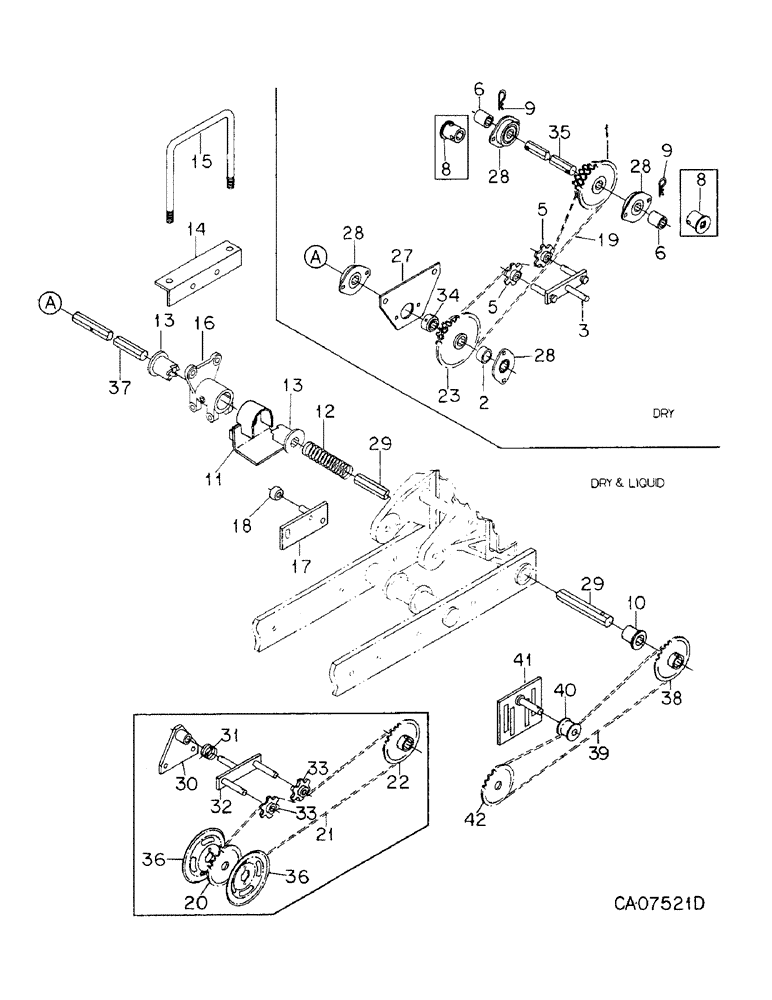

Запчасти Case IH 800 (10-08) - FERTILIZER, DRY & LIQUID FERTILIZER DRIVE, UNITS A AND F (09) - CHASSIS/ATTACHMENTS

1

141041C2

SPROCKET ASSY.

SPROCKET ASSY, shaft, input, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

22211R1

SCREW

3/8 x 1/2 znp c/pt sq/hd set

1шт.

1

1267911C1

SPROCKET

ASSY, 16-24-30T, optional w/1264352C1, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

1

1264352C1

SPROCKET ASSY.

SPROCKET ASSY, 20-34-36T, optional w/1267911C1, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

21916R1

PIN

1/4 x 2. hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

2

144812C1

SPACER

1шт.

3

141074C2

ARM

ASSY, chain tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

Not used this application

1шт.

5

472344R3

SPROCKET

idler

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

141771C1

SPACER

coupling drive

2шт.

21916R1

PIN

1/4 x 2. hd type 1

2шт.

7

Not used this application

1шт.

8

1254392C1

COUPLING

ASSY, fertilizer, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

2шт.

24812R1

HEADED PIN,1/4" x 2"

PIN, HEADED, 1/4" x 2"

2шт.

520177R1

PIN

3/16 qa cot.

2шт.

9

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

2шт.

10

140990C1

DRIVE BUSHING

BUSHING, drive shaft

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

3шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

3шт.

22440R1

WASHER

1.031 x 1.750 x .027

1шт.

11

137480C4

BRACKET

ASSY, throwout

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

1264302C1

SPRING

clutch, replaces 141003C1

1шт.

13

1264426C91

CLUTCH ASSEMBLY

CLUTCH ASSY, right drive includes ref no. 12, replaces 141713C1

1шт.

1267994C1

WASHER

1.656 x 2.250 x .105

2шт.

14

137482C2

ANGLE

bearing

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

15

1250813C1

U-BOLT

replaces 493837R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

16

149311C2

HOUSING

clutch

1шт.

25391R1

FITTING

1/4 less ball check lub

1шт.

17

140989C2

SUPPORT

ASSY, LH

1шт.

18

137481C1

BEARING

BALL, throwout

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19

CHAIN, fertilizer drive 1 inch, furnish 57 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

20

134335C1

SPROCKET ASSY.

SPROCKET, 14T wheel, note A

1шт.

21

CHAIN, wheel drive 1 inch, note A, furnish 69 links from bulk roll marked 569088R91 and 1 connecting link 1277927C91

1шт.

1277927C91

LINK

connecting

1шт.

22

134130C2

SPROCKET ASSY.

SPROCKET ASSY, drive wheel 27T

2шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

23

141063C2

SPROCKET

ASSY, fertilizer driver, 34-36-20 teeth

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

24

Not used this application

1шт.

25

Not used this application

1шт.

26

Not used this application

1шт.

27

141173C1

SUPPORT

plate bearing

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

28

134158C91

FLANGED BEARING

ball 7/8 hex bore

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

29

140969C2

BAR

shaft outer LH

1шт.

30

136929C2

PLATE

ASSY, tightener wheel, note A

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

31

137164C1

SPRING

wheel idler RH, note A

1шт.

32

134313C1

ARM

ASSY, wheel idler, note A

1шт.

33

472344R3

SPROCKET

idler, note A

2шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

Q3500

WASHER

.656 x 1.125 x .067 pln

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

34

141572C2

COLLAR

HUB, sprocket

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

35

141770C2

BAR

shaft center fertilizer drive

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

36

1264309C1

FLANGE

sprocket, note A

2шт.

37

149562C2

BAR

shaft inner, 32 to 40 inch row, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

37

1264477C1

BAR

shaft inner, 30 inch rows, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

37

141447C1

BAR

shaft inner, dry fertilizer only, 32 to 40 inch rows, note D, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

37

141412C2

BAR

shaft inner, dry fertilizer only, 30 inch rows, note D, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

37

1254423C2

BAR

shaft inner, liquid fertilizer only, 30 to 40 in. rows, order bar, 149562C2, hub, 141572C2 & tow screws, 21689R1, cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

454894R1

LOCK PIN,7/32" x 1 3/4", Slotted

Pin, 7/32" x 1 3/4", Slotted

2шт.

38

1277743C1

DRIVING SPROCKET

SPROCKET ASSY, 23T, notes B and C

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

2шт.

39

CHAIN, wheel drive, 1-1/4 inch, notes B and C, furnish 55 links from bulk roll marked, 569089R91 and one connecting link, 1277928C91

1шт.

1277928C91

LINK

connecting

1шт.

40

1277726C1

ROLLER,48mm OD x 34mm L

idler, notes B and C

1шт.

22198R1

WASHER

.656 x 1.125 x .042

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

41

91405C1

PLATE

ASSY, wheel drive idler, replaces 1279011C2, notes B and C

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

42

1277737C1

SPROCKET

wheel 12T, notes B and C

1шт.

1277989C91

PACKAGE

fertilizer drive conversion, note A, consists of ref nos. 38 through 42 and attaching hardware

1шт.
