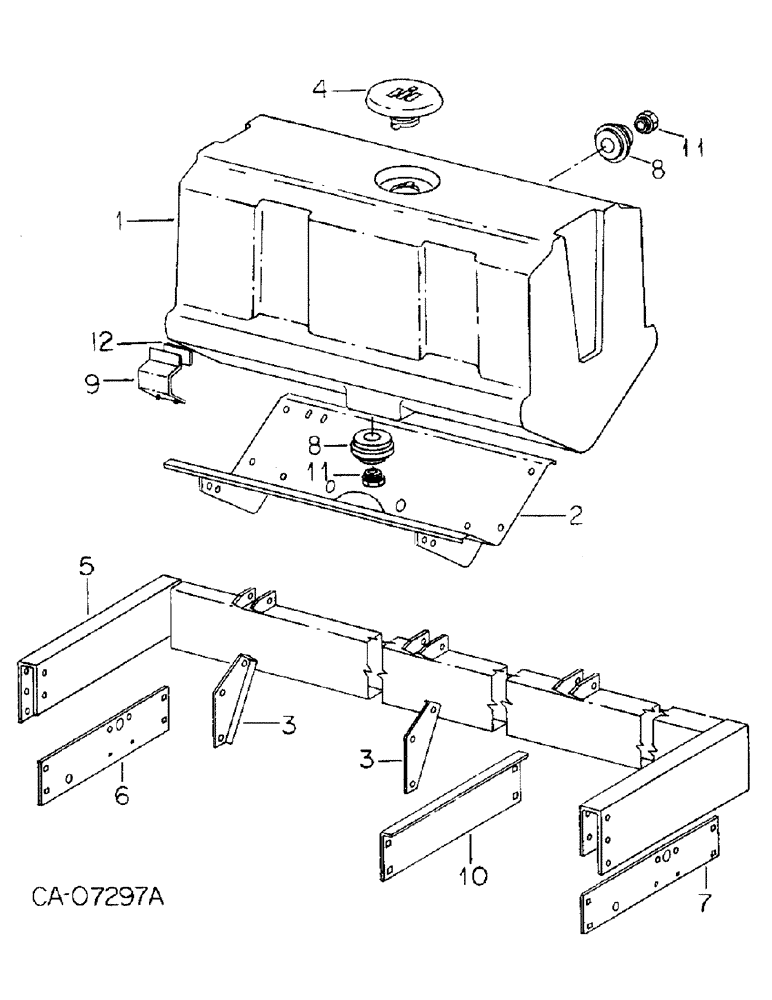

Запчасти Case IH 800 (10-07) - FERTILIZER, HOPPER AND RELATED PARTS, LIQUID FERTILIZER UNITS A, C, D, F AND M (09) - CHASSIS/ATTACHMENTS

1

145080C1

HOPPER

70 gal. tank

1шт.

2

141044C1

SADDLE

ASSY, tank

1шт.

3

147417C1

SUPPORT

BAR, tank support LH

1шт.

3

147418C1

SUPPORT

BAR, tank support RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 flange lock

1шт.

22900R1

HEADED PIN

PIN, 3/8 x 1.250 hd type 1

1шт.

177923

COTTER PIN

1/8" x 3/4"

1шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x .750 hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

4

141151C2

CAP ASSY.

CAP ASSY, liquid fertilizer

1шт.

Ref #4 - Gasket for this Cap is 141153C1 04/18/96

1шт.

5

141161C1

FRAME

ASSY, units A and F

1шт.

5

141313C1

FRAME

ASSY, LH, units C and M

1шт.

5

141314C1

FRAME

ASSY, RH, units C and M

1шт.

5

141031C1

FRAME

ASSY, LH, unit D

1шт.

5

141032C1

FRAME

ASSY, RH, unit D

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

6

141096C1

BAR

support, units A & F

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

7

141108C1

SUPPORT

ASSY, units A & F

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

8

1254377C1

FITTING

tank, 2 per hopper

1шт.

9

147419C1

BRACKET

ASSY, tank attaching

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

141047C1

SUPPORT

angle, units C, D, M

1шт.

11

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

1-1/4 in. male pipe

1шт.

12

1250768C1

STRIP

PAD, clamp

1шт.
